TS374
LOW POWER QUAD CMOS VOLTAGE COMPARATOR
s
WIDE SINGLE SUPPLY RANGE OR DUAL
SUPPLIES
3V TO 16V
OR
鹵1.5V
TO
鹵8V
s
VERY LOW SUPPLY CURRENT:
0.1mA/COMP INDEPENDENT OF SUPPLY
VOLTAGE
s
EXTREMELY LOW INPUT BIAS CURRENT :
1pA typ
s
EXTREMELY LOW INPUT OFFSET
CURRENTS :
1pA typ
s
LOW INPUT OFFSET VOLTAGE
s
INPUT COMMON-MODE VOLTAGE RANGE
INCLUDES GND
N
DIP14
(Plastic Package)
s
LOW OUTPUT SATURATION VOLTAGE
150mV TYP
s
OUTPUT COMPATIBLE WITH TTL, MOS
AND CMOS
s
HIGH INPUT IMPEDANCE : 10
12
鈩?/div>
typ
s
FAST RESPONSE TIME : 200ns TYP FOR
TTL LEVEL INPUT STEP
DESCRIPTION
D
SO14
(Plastic Micropackage)
PIN CONNECTIONS
(top view)
These devices consist of four independent preci-
sion voltage comparators, designed to operate
with single or dual supplies.
These differential comparators use the STMicro-
electronics silicon lin MOS process giving them an
excellent consumption-speed ratio.
These devices are ideally suited for low consump-
tion applications.
ORDER CODE
Part Number
TS374C
TS374I
TS374M
Temperature
Range
0擄C, +70擄C
-40擄C, +125擄C
-55擄C, +125擄C
Package
Inverting Input 2
6
7
-
+
+
-
9
8
Non-inverting Input 3
Inverting Input 3
Output 2
1
14
13
12
-
+
+
-
11
10
Output 3
Output 4
V
CC
-
Non-inverting Input 4
Inverting Input 4
Output 1 2
V
CC
+
3
Inverting Input 1 4
Non-invertingInput 1 5
N
鈥?/div>
鈥?/div>
鈥?/div>
D
鈥?/div>
鈥?/div>
鈥?/div>
Non-inverting Input 2
N =
Dual in Line Package (DIP)
D =
Small Outline Package (SO) - also available in Tape & Reel (DT)
February 2002
1/5

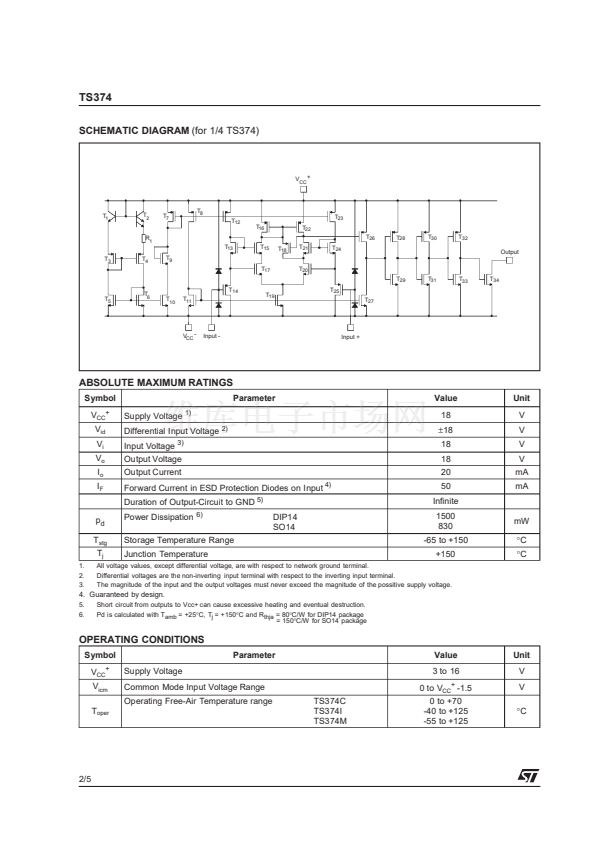

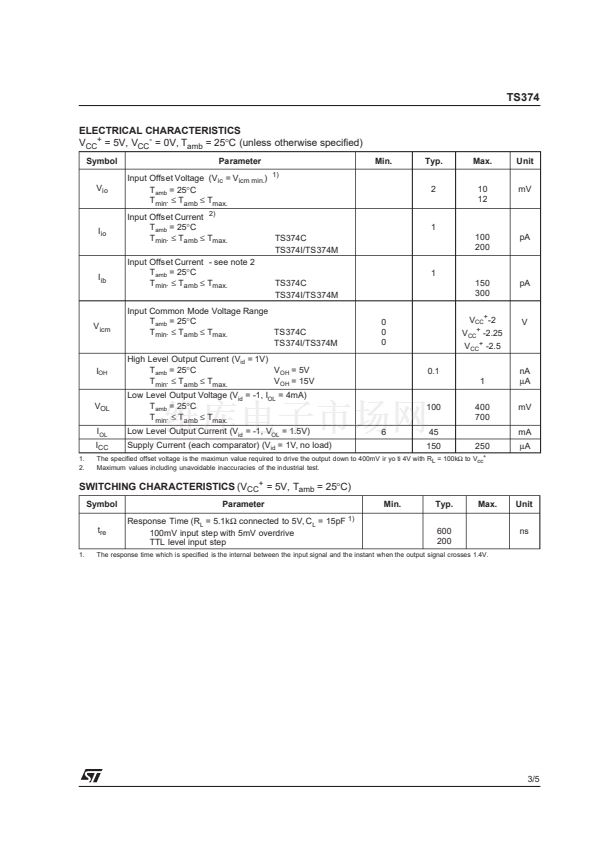

TS374IN 產(chǎn)品屬性
25
集成電路 (IC)
線性 - 比較器
-
差分
4
CMOS，MOS，開路漏極，TTL
3 V ~ 16 V，±1.5 V ~ 8 V
10mV @ 5V
1pA @ 5V
20mA
250µA
-
-
-
-40°C ~ 125°C
14-DIP（0.300"，7.62mm）
通孔
管件
497-2274-5
