TS27M4C,I,M

LOW POWER QUAD

CMOS OPERATIONAL AMPLIFIERS

.

.

.

.

.

.

.

EXCELLENT PHASE MARGIN ON

CAPACITIVE LOADS

SYMETRICAL OUTPUT CURRENTS

LOW OUTPUT DYNAMIC IMPEDANCE

THE TRANSFER FUNCTION IS LINEAR

PIN TO PIN COMPATIBLE WITH STANDARD

QUAD OP-AMPs (TL084 -LM324)

STABLE AND LOW OFFSET VOLTAGE

THREE INPUT OFFSET VOLTAGE

SELECTIONS

N

DIP14

(Plastic Package)

D

SO14

(Plastic Micropackage)

ORDER CODES

Part Number

TS27M4C/AC/BC

TS27M4I/AI/BI

TS27M4M/AM/BM

Temperature

Range

0 C, +70 C

-40

o

C, +125

o

C

-55 C, +125 C

o

o

o

o

Package

N

l

l

l

D

l

27M4-01.TBL

27M4-01.EPS

l

l

Example :

TS27M4ACN

DESCRIPTION

The TS274 series are low cost, low power quad

operational amplifiers designed to operate with

single or dual supplies. These operational amplifi-

ers use the SGS-THOMSON silicon gate LIN MOS

process giving them an excellent consumption-

speed ratio. These series are ideally suited for low

consumption applications.

Three power consumptions are available allowing

to have always the best consumption-speed ratio :

l

I

CC

= 10碌A(chǔ)/amp. :

TS27L4 (very low power)

l

I

CC

= 150碌A(chǔ)/amp. :

TS27M4 (low power)

l

I

CC

= 1mA/amp. :

TS274

(high speed)

These CMOS amplifiers offer very high input im-

pedance and extremely low input currents. The

major advantage versus JFET devices is the very

low input currents drift with temperature

(see figure 2).

October 1995

PIN CONNECTIONS

(top view)

Output 1 1

Inverting Input 1 2

Non-inverting Input 1 3

V

CC

+ 4

Non-inverting Input 2 5

Inverting Input 2 6

Output 2 7

+

-

+

-

-

+

-

+

14 Output 4

13 Inverting Input 4

12 Non-inverting Input 4

11 V

C C

-

10 Non-inverting Input 3

9

8

Inverting Input 3

Output 3

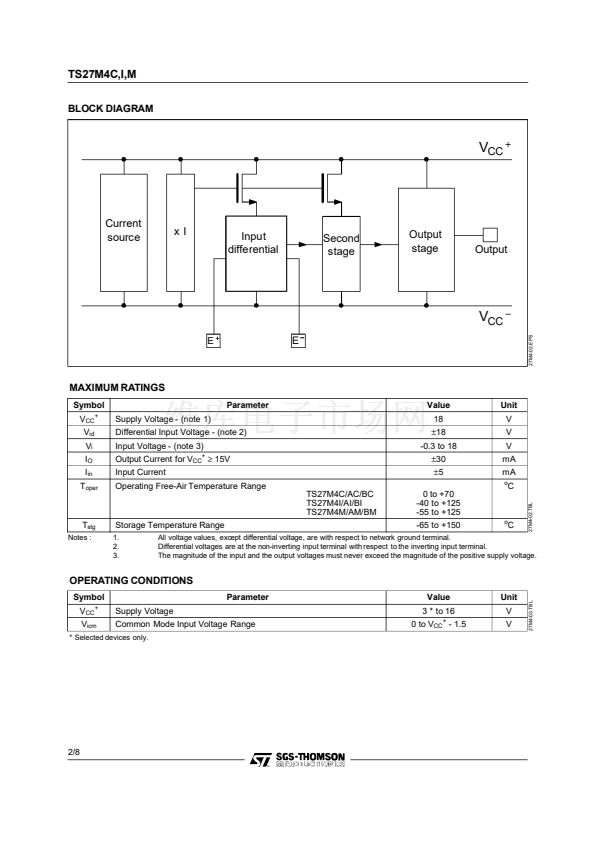

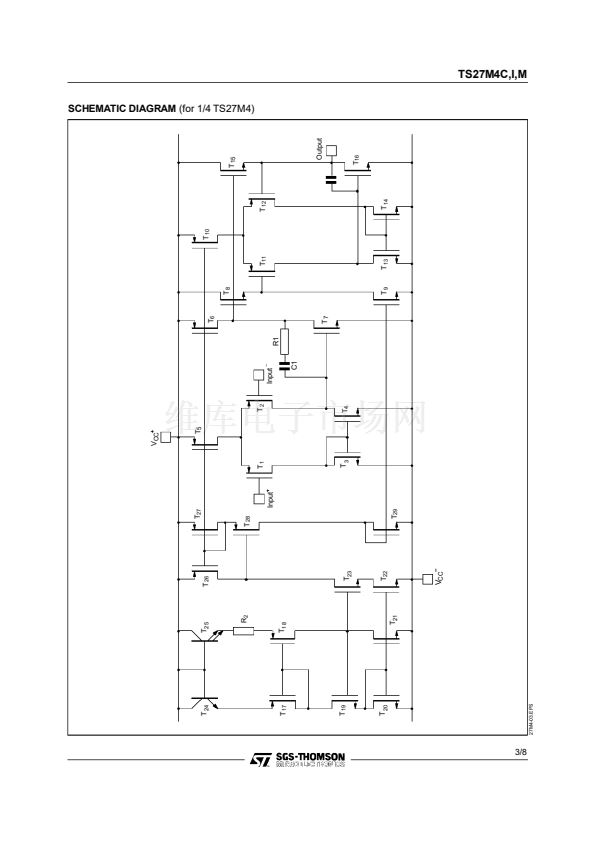

1/8
