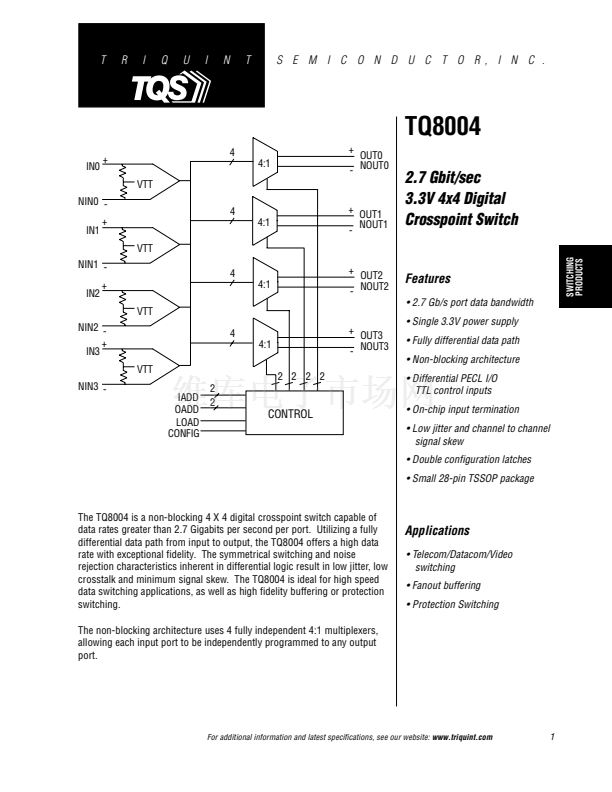

T

R

I

Q

U

I

N

T

S E M I C O N D U C T O R , I N C .

TQ8004

IN0

+

VTT

NIN0 -

IN1

+

VTT

NIN1 -

IN2

+

VTT

NIN2 -

+

IN3

VTT

NIN3 -

IADD

OADD

LOAD

CONFIG

2

2

4

4:1

2 2 2 2

+ OUT3

NOUT3

-

4

4:1

+ OUT2

NOUT2

-

4

4:1

+ OUT1

NOUT1

-

4

4:1

+ OUT0

NOUT0

-

2.7 Gbit/sec

3.3V 4x4 Digital

Crosspoint Switch

SWITCHING

PRODUCTS

Features

鈥?2.7 Gb/s port data bandwidth

鈥?Single 3.3V power supply

鈥?Fully differential data path

鈥?Non-blocking architecture

鈥?Differential PECL I/O

TTL control inputs

鈥?On-chip input termination

鈥?Low jitter and channel to channel

signal skew

鈥?Double configuration latches

鈥?Small 28-pin TSSOP package

CONTROL

The TQ8004 is a non-blocking 4 X 4 digital crosspoint switch capable of

data rates greater than 2.7 Gigabits per second per port. Utilizing a fully

differential data path from input to output, the TQ8004 offers a high data

rate with exceptional fidelity. The symmetrical switching and noise

rejection characteristics inherent in differential logic result in low jitter, low

crosstalk and minimum signal skew. The TQ8004 is ideal for high speed

data switching applications, as well as high fidelity buffering or protection

switching.

The non-blocking architecture uses 4 fully independent 4:1 multiplexers,

allowing each input port to be independently programmed to any output

port.

Applications

鈥?Telecom/Datacom/Video

switching

鈥?Fanout buffering

鈥?Protection Switching

For additional information and latest specifications, see our website:

www.triquint.com

1
