TQ5135 Datasheet

  • TQ5135

  • Analog IC

  • 22頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

WIRELESS COMMUNICATIONS DIVISION
GND/LNA
Gain
LNA
Mode
LNA Out
N/C
TQ5135
DATA SHEET
MXR In
logic
1
GND
RF In
LNA
GND
3V Cellular CDMA/AMPS
LNA/Mixer Receiver IC
Mixer
GND
LO
Vdd
LNA
Bias
active
bias
LO Buffer
IF Amp
LO
In
Features
摟
Single +2.8V Operation
摟
Adjustable Gain/IP3/Current
LNA Vdd
GND
IF Out
GIC
摟
Low Current Operation
摟
Few external components
摟
QFN 3x3mm, 16 Pin Leadless Plastic
Package
摟
High Input IP3
摟
Low Noise Figure
Product Description
The TQ5135 is an LNA-Downconverter optimized for use in the Korean,
Japanese, and US CDMA Bands. The integrated LNA has the gain step function
required for CDMA, and features very low NF and excellent IP3. An external
resistor controls LNA bias, making LNA Idd adjustable. The integrated mixer
features very high IP3 and provision for external adjustment of gain, IP3, and Idd.
Because of the external LO tuning inductor, IF鈥?in the range of 85 to 200Mhz
s
can be used. The excellent RF performance with low current coupled with very
small lead-less plastic package is ideally suited for Cellular band mobile phone.
Applications
摟
CDMA mobile Applications
摟
Cellular and AMPS mobile applications
worldwide
摟
Wireless data applications

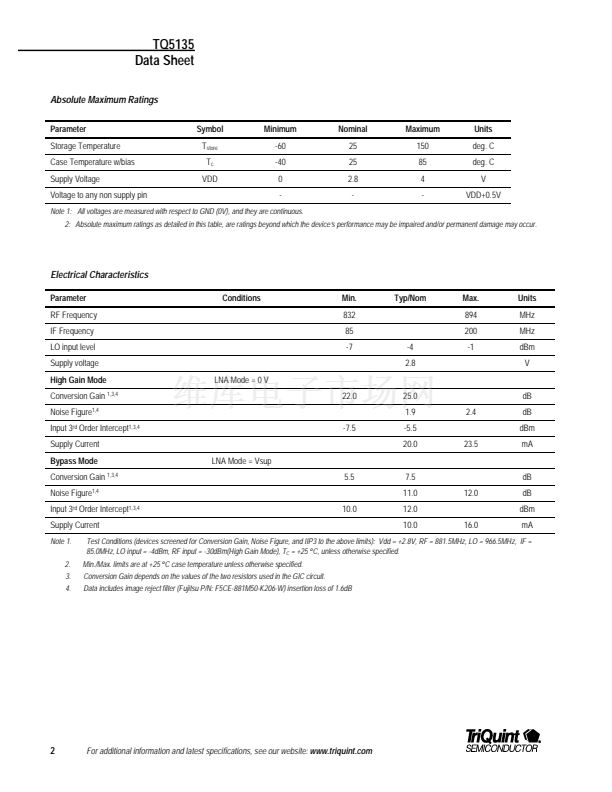

Electrical
Parameter
Specifications
1
Min
Typ
881.5
25.0
1.9
-5.5
20
Max
Units
MHz
dB
dB
dBm
mA
RF Frequency
Conversion Gain
Noise Figure
Input 3
rd
Order Intercept
DC supply Current
Note 1. Test Conditions: Vdd=+2.8V, T
C
=+25C, RF=881.5MHz, RF in =-30dBm LO=966.5MHz,
LO input=-4dBm, IF=85MHz
For additional information and latest specifications, see our website:
www.triquint.com
1
