TPSMC20A Datasheet

  • TPSMC20A

  • AUTOMOTIVE SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

  • 64.26KB

  • 4頁

  • VISHAY   VISHAY

掃碼查看芯片數據手冊

上傳產品規(guī)格書

PDF預覽

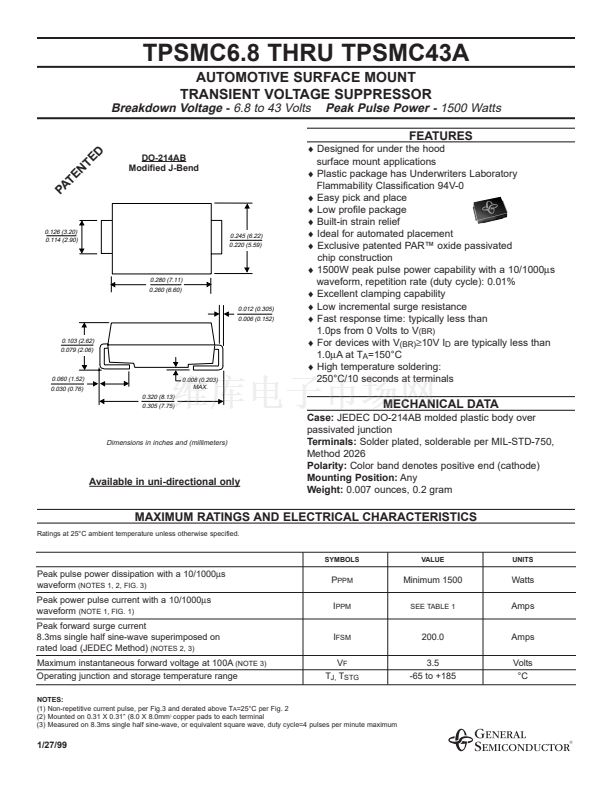

TPSMC6.8 THRU TPSMC43A
AUTOMOTIVE SURFACE MOUNT
TRANSIENT VOLTAGE SUPPRESSOR
Breakdown Voltage
-
6.8 to 43 Volts
Peak Pulse Power -
1500 Watts
FEATURES
PA
TE
N
DO-214AB
Modified J-Bend
0.126 (3.20)
0.114 (2.90)
0.245 (6.22)
0.220 (5.59)
0.280 (7.11)
0.260 (6.60)
0.012 (0.305)
0.006 (0.152)
0.103 (2.62)
0.079 (2.06)
0.060 (1.52)
0.030 (0.76)
0.320 (8.13)
0.305 (7.75)
0.008 (0.203)
MAX.
鈾?/div>
Designed for under the hood
surface mount applications
鈾?/div>
Plastic package has Underwriters Laboratory
Flammability Classification 94V-0
鈾?/div>
Easy pick and place
鈾?/div>
Low profile package
鈾?/div>
Built-in strain relief
鈾?/div>
Ideal for automated placement
鈾?/div>
Exclusive patented PAR鈩?oxide passivated
chip construction
鈾?/div>
1500W peak pulse power capability with a 10/1000碌s
waveform, repetition rate (duty cycle): 0.01%
鈾?/div>
Excellent clamping capability
鈾?/div>
Low incremental surge resistance
鈾?/div>
Fast response time: typically less than
1.0ps from 0 Volts to V
(BR)
鈾?/div>
For devices with V
(BR)
鈮?0V
I
D
are typically less than
1.0碌A at T
A
=150擄C
鈾?/div>
High temperature soldering:
250擄C/10 seconds at terminals
TE
D
MECHANICAL DATA
Case:
JEDEC DO-214AB molded plastic body over
passivated junction
Terminals:
Solder plated, solderable per MIL-STD-750,
Method 2026
Polarity:
Color band denotes positive end (cathode)
Mounting Position:
Any
Weight:
0.007 ounces, 0.2 gram
Dimensions in inches and (millimeters)
Available in uni-directional only
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25擄C ambient temperature unless otherwise specified.
SYMBOLS
VALUE
UNITS
Peak pulse power dissipation with a 10/1000碌s
waveform
(NOTES 1, 2, FIG. 3)
Peak power pulse current with a 10/1000碌s
waveform
(NOTE 1, FIG. 1)
Peak forward surge current
8.3ms single half sine-wave superimposed on
rated load (JEDEC Method)
(NOTES 2, 3)
Maximum instantaneous forward voltage at 100A
(NOTE 3)
Operating junction and storage temperature range
P
PPM
I
PPM
Minimum 1500
SEE TABLE 1
Watts
Amps
I
FSM
V
F
T
J,
T
STG
200.0
3.5
-65 to +185
Amps
Volts
擄C
NOTES:
(1) Non-repetitive current pulse, per Fig.3 and derated above T
A
=25擄C per Fig. 2
(2) Mounted on 0.31 X 0.31鈥?(8.0 X 8.0mm
)
copper pads to each terminal
(3) Measured on 8.3ms single half sine-wave, or equivalent square wave, duty cycle=4 pulses per minute maximum
1/27/99

TPSMC20A 產品屬性

  • 2,897現貨

  • 1 : ￥6.36000剪切帶（CT）3,000 : ￥2.44497卷帶（TR）

  • Automotive, AEC-Q101, TPSMC

  • 卷帶（TR）剪切帶（CT）Digi-Reel? 得捷定制卷帶

  • 在售

  • 齊納

  • 1

  • -

  • 17.1V

  • 19V

  • 27.7V

  • 54.9A

  • 1500W（1.5kW）

  • 無

  • 汽車級

  • -

  • -55°C ~ 150°C（TJ）

  • 表面貼裝型

  • DO-214AB，SMC

  • DO-214AB（SMCJ）
