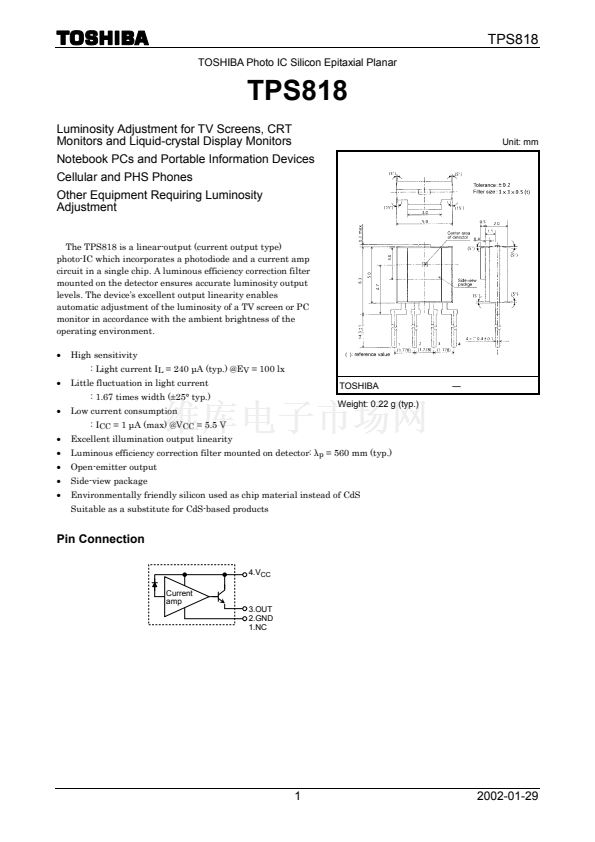

TPS818
TOSHIBA Photo IC Silicon Epitaxial Planar
TPS818
Luminosity Adjustment for TV Screens, CRT
Monitors and Liquid-crystal Display Monitors
Notebook PCs and Portable Information Devices
Cellular and PHS Phones
Other Equipment Requiring Luminosity
Adjustment
The TPS818 is a linear-output (current output type)
photo-IC which incorporates a photodiode and a current amp
circuit in a single chip. A luminous efficiency correction filter
mounted on the detector ensures accurate luminosity output
levels. The device鈥檚 excellent output linearity enables
automatic adjustment of the luminosity of a TV screen or PC
monitor in accordance with the ambient brightness of the
operating environment.
路
路
路
路
路
路
路
路
High sensitivity
: Light current I
L
= 240 碌A (typ.) @E
V
= 100 lx
Little fluctuation in light current
: 1.67 times width (鹵25擄 typ.)
Low current consumption
: I
CC
= 1 碌A (max) @V
CC
= 5.5 V
Excellent illumination output linearity
Luminous efficiency correction filter mounted on detector:
位
p
= 560 mm (typ.)
Open-emitter output
Side-view package
Environmentally friendly silicon used as chip material instead of CdS
Suitable as a substitute for CdS-based products
TOSHIBA
Weight: 0.22 g (typ.)
鈥?/div>
Unit: mm
Pin Connection
4.V
CC
Current
amp
3.OUT
2.GND
1.NC
