TPS56100

HIGH-EFFICIENCY DSP POWER SUPPLY CONTROLLER

FOR 5-V INPUT SYSTEMS

SLVS201A 鈥?JUNE 1999 鈥?REVISED JULY 1999

Single-Channel, 5-V Controller

Synchronous-Rectifier Drivers for Greater

Than 90% Efficiency

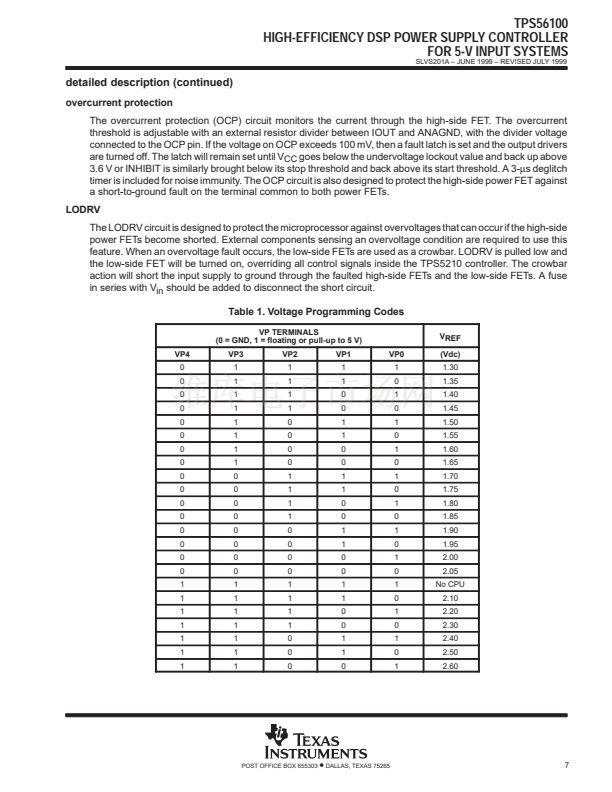

Useable for All Common DSP Supply

Voltages 鈥?Popular Output Voltage Options

Set With Program Pins

EVM Available

Ideal for Applications With Current Ranges

From 3 A to 30 A.

Hysteretic Control Technique Enables Fast

Transient Response 鈥?Ideal for 鈥機6000 or

Multiple 鈥機5000 Applications

Low Supply Current

鈥?3 mA in Operation

鈥?90

碌A(chǔ)

in Standby

Power Good Output

28-Pin TSSOP PowerPAD鈩?Package

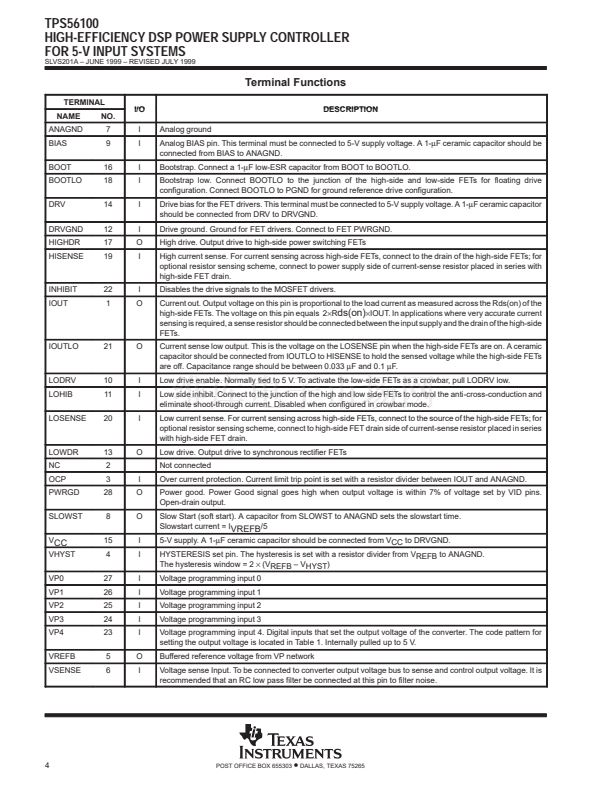

PWP PACKAGE

(TOP VIEW)

IOUT

OCP

VHYST

VREFB

VSENSE

ANAGND

SLOWST

BIAS

LODRV

LOHIB

DRVGND

LOWDR

DRV

PWRGD

VP0

VP1

VP2

VP3

VP4

INHIBIT

IOUTLO

LOSENSE

HISENSE

BOOTLO

HIGHDR

BOOT

NC 鈥?Not Connected

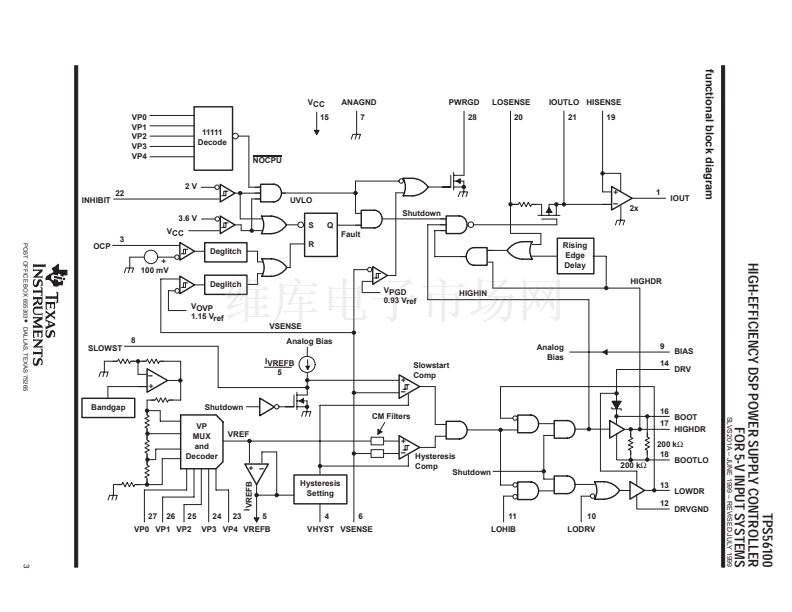

description

The TPS56100 is a high-efficiency synchronous-buck regulator controller which provides an accurate

programmable supply voltage to low-voltage digital signal processors, such as the 鈥楥6x and 鈥楥54x DSPs. An

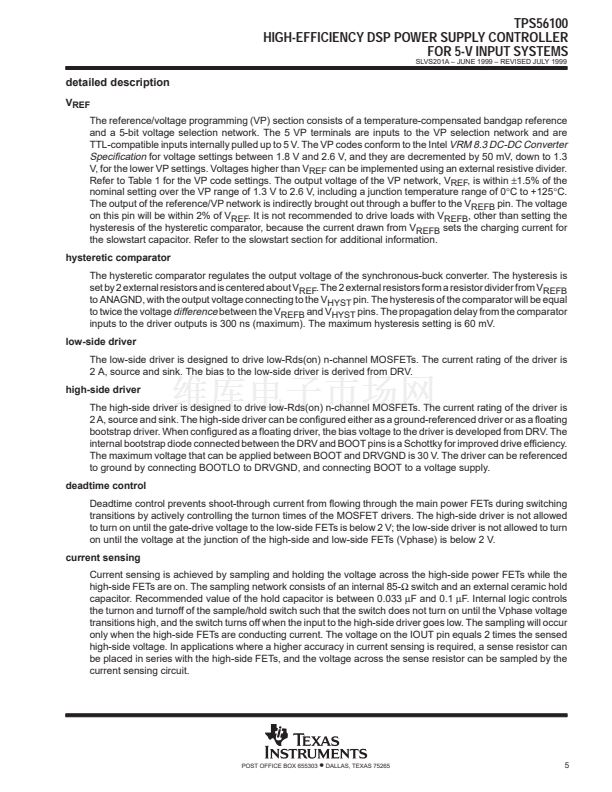

internal 5-bit DAC is used to program the reference voltage from 1.3 V to 2.6 V. Higher output voltages can be

implemented using an external input resistive divider. The TPS56100 uses a fast hysteretic control method that

provides a quick transient response. The propagation delay from the comparator input to the output driver is

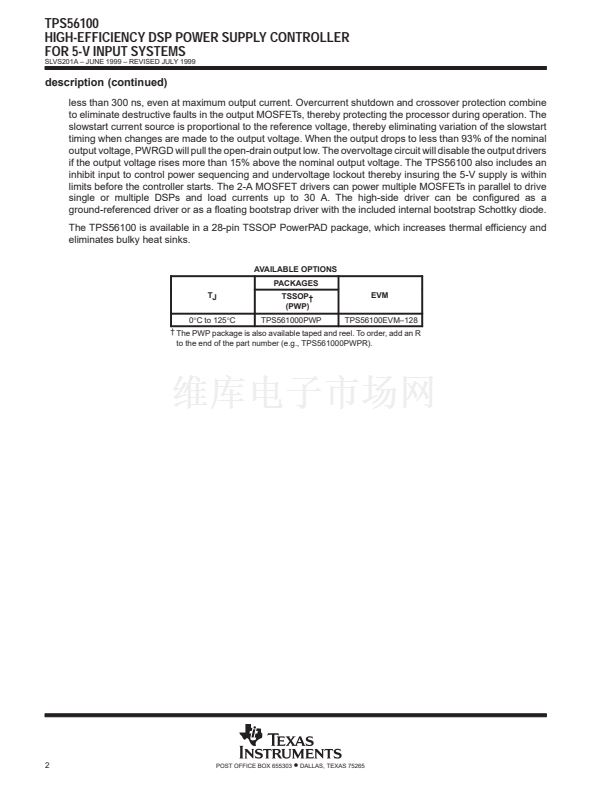

application example

GND

28 27 26 25 24 23 22 21 20 19 18 17 16 15

PWRGD

IOUTLO

LOSENSE

BOOTLO

HIGHDR

VP4

INHIBIT

BOOT

VP0

VP1

VP2

VP3

HISENSE

VCC

TPS56100

VSENSE

ANAGND

VREFB

VHYST

1.5 V

DRVGND

LOWDR

LOHIB

SLOWST

BIAS

CVDD

LODRV

IOUT

OCP

DRV

DSP

9 10 11 12 13 14

GND

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of

Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

PowerPAD is a trademark of Texas Instruments Incorporated.

PRODUCTION DATA information is current as of publication date.

Products conform to specifications per the terms of Texas Instruments

standard warranty. Production processing does not necessarily include

testing of all parameters.

漏

1999, Texas Instruments Incorporated

POST OFFICE BOX 655303

鈥?/div>

DALLAS, TEXAS 75265

標準包裝
50
類別
集成電路 (IC)
家庭
PMIC - 穩壓器 - 專用型
系列
-
應用
控制器，C6x，C54x DSP
輸入電壓
4.5 V ~ 6 V
輸出數
1
輸出電壓
1.3 V ~ 2.6 V
工作溫度
0°C ~ 70°C
安裝類型
表面貼裝
封裝/外殼
28-SOIC（0.173"，4.40mm 寬）裸露焊盤
供應商設備封裝
28-HTSSOP
包裝
管件
配用
296-10934-ND - HIGH-PERFORMANCE SYNCHRONOUS BUC296-10933-ND - HIGH-PERFORMANCE SYNCHRONOUS BUC
其它名稱
296-2475-5
