TPS54873PWPR Datasheet

  • TPS54873PWPR

  • 4-V TO 6-V INPUT, 8-A OUTPUT SYNCHRONOUS BUCK SWITCHER WITH ...

  • 18頁

  • TI

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

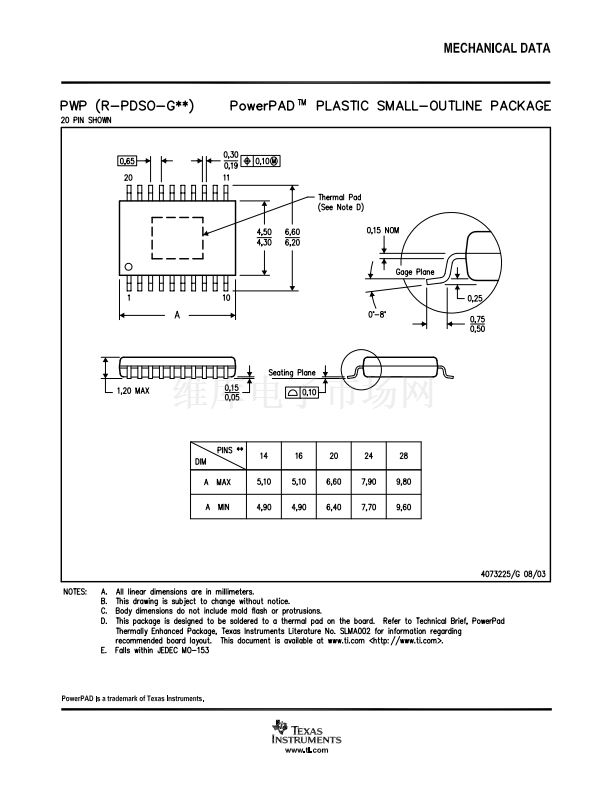

Typical Size
6,4 mm X 9,7 mm
www.ti.com
TPS54873
SLVS444A
鈭?/div>
OCTOBER 2002
鈭?/div>
REVISED FEBRUARY 2005

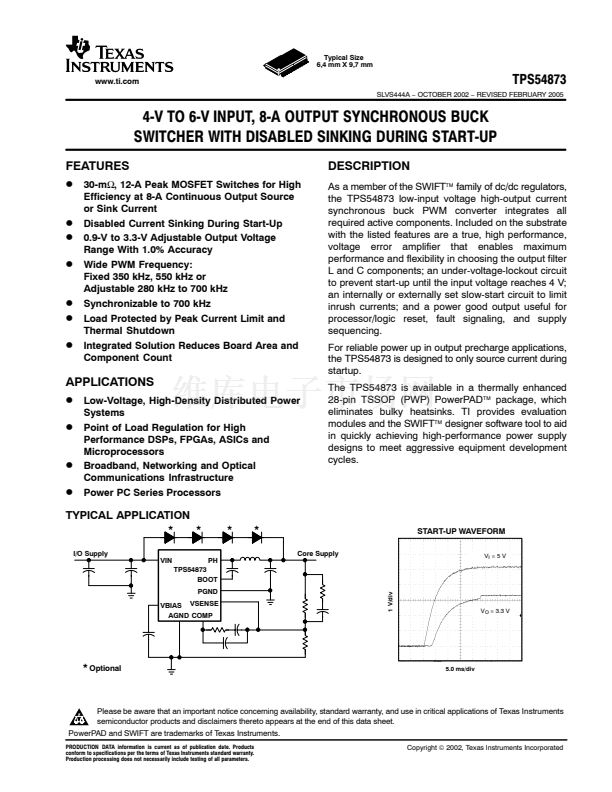

4-V TO 6-V INPUT, 8-A OUTPUT SYNCHRONOUS BUCK
SWITCHER WITH DISABLED SINKING DURING START-UP
FEATURES
D
30-m鈩? 12-A Peak MOSFET Switches for High
D
D
D
D
D
D
Efficiency at 8-A Continuous Output Source
or Sink Current

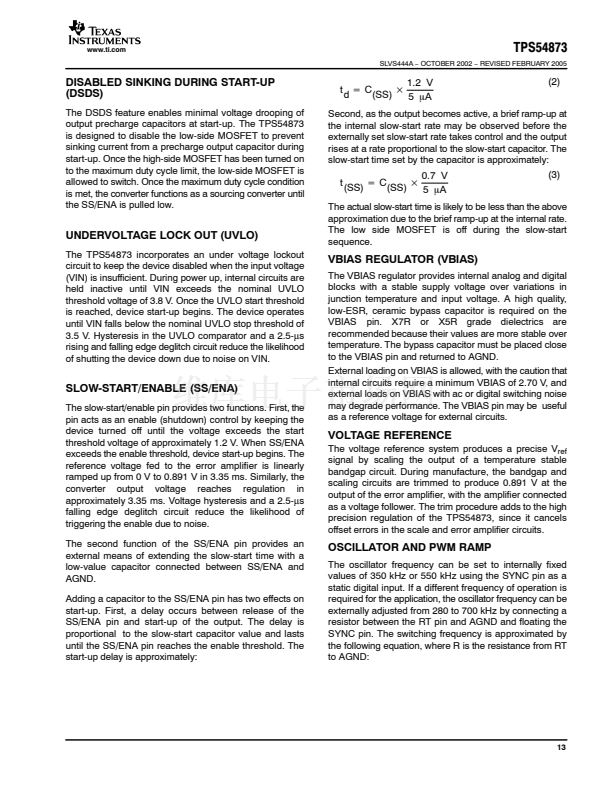

Disabled Current Sinking During Start-Up
0.9-V to 3.3-V Adjustable Output Voltage
Range With 1.0% Accuracy
Wide PWM Frequency:
Fixed 350 kHz, 550 kHz or
Adjustable 280 kHz to 700 kHz
Synchronizable to 700 kHz
Load Protected by Peak Current Limit and
Thermal Shutdown
Integrated Solution Reduces Board Area and
Component Count
DESCRIPTION
As a member of the SWIFT鈩?family of dc/dc regulators,
the TPS54873 low-input voltage high-output current
synchronous buck PWM converter integrates all
required active components. Included on the substrate
with the listed features are a true, high performance,
voltage error amplifier that enables maximum
performance and flexibility in choosing the output filter
L and C components; an under-voltage-lockout circuit
to prevent start-up until the input voltage reaches 4 V;
an internally or externally set slow-start circuit to limit
inrush currents; and a power good output useful for
processor/logic reset, fault signaling, and supply
sequencing.
For reliable power up in output precharge applications,
the TPS54873 is designed to only source current during
startup.

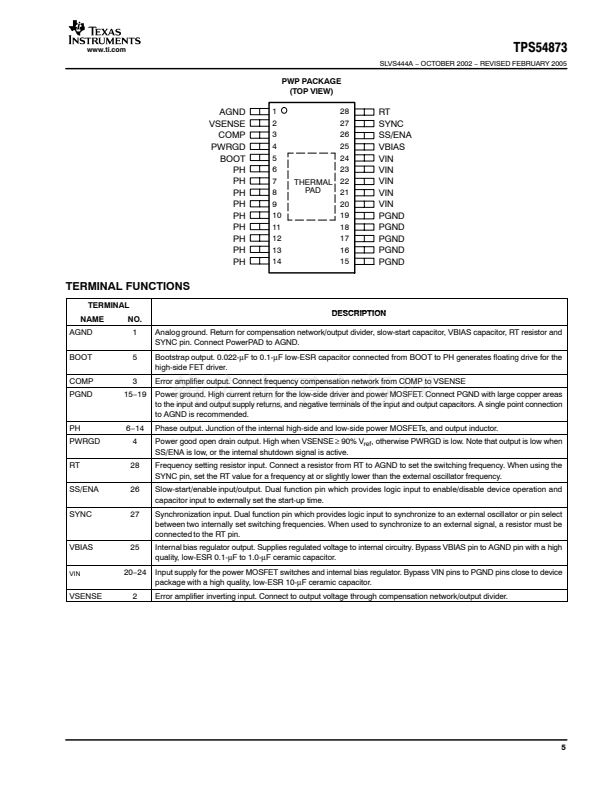

The TPS54873 is available in a thermally enhanced
28-pin TSSOP (PWP) PowerPAD鈩?package, which
eliminates bulky heatsinks. TI provides evaluation
modules and the SWIFT鈩?designer software tool to aid
in quickly achieving high-performance power supply
designs to meet aggressive equipment development
cycles.
APPLICATIONS
D
Low-Voltage, High-Density Distributed Power
D
D
D
Systems
Point of Load Regulation for High
Performance DSPs, FPGAs, ASICs and
Microprocessors
Broadband, Networking and Optical
Communications Infrastructure
Power PC Series Processors
*
I/O Supply
VIN
TYPICAL APPLICATION
*
PH
TPS54873
BOOT
VBIAS VSENSE
AGND COMP
1 V/div
*
*
Core Supply

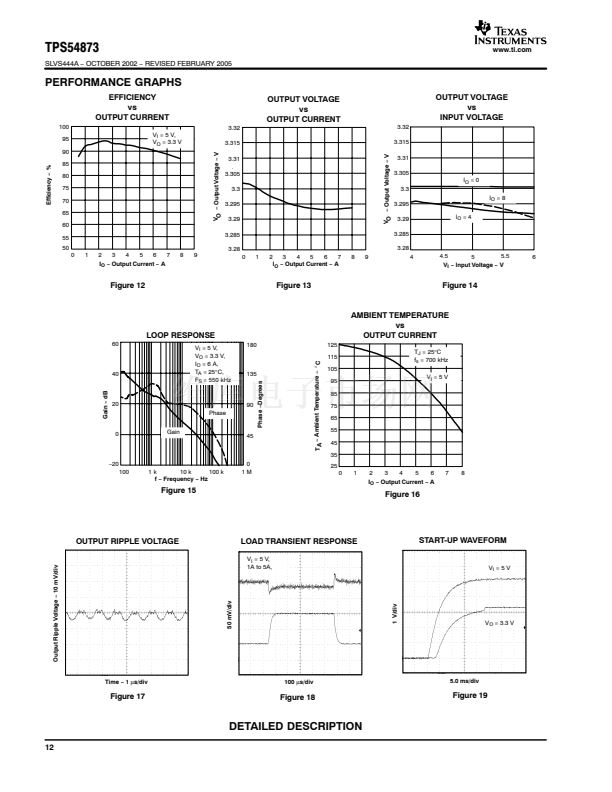

START-UP WAVEFORM
V
I
= 5 V
PGND
V
O
= 3.3 V
*
Optional
5.0 ms/div
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments
semiconductor products and disclaimers thereto appears at the end of this data sheet.
PowerPAD and SWIFT are trademarks of Texas Instruments.
PRODUCTION DATA information is current as of publication date. Products
conform to specifications per the terms of Texas Instruments standard warranty.
Production processing does not necessarily include testing of all parameters.
Copyright
漏
2002, Texas Instruments Incorporated

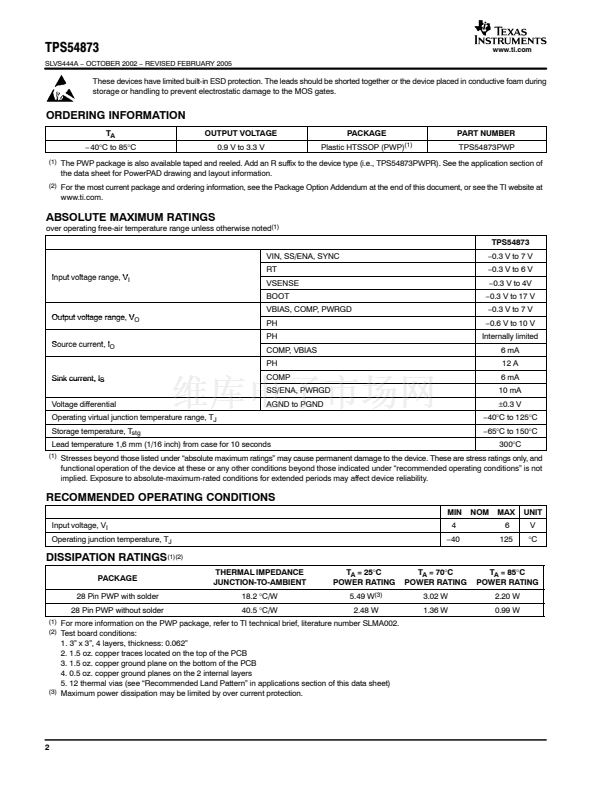

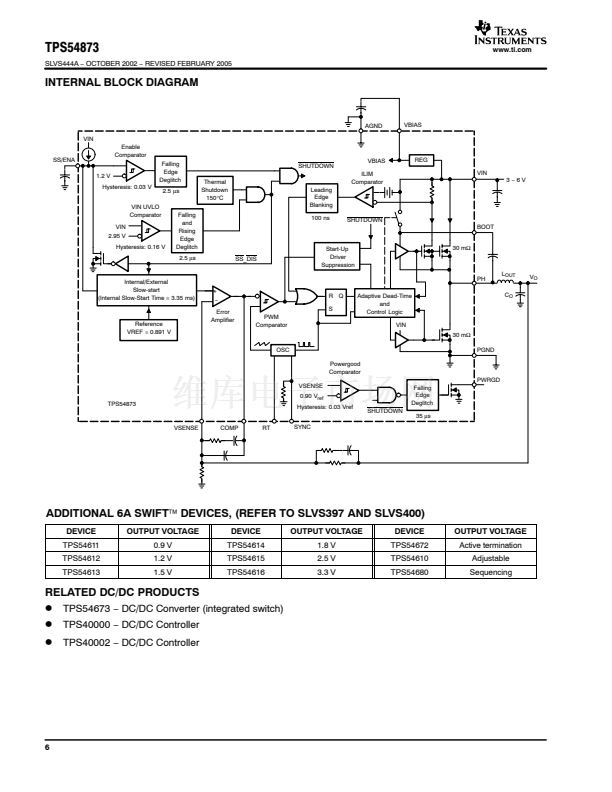

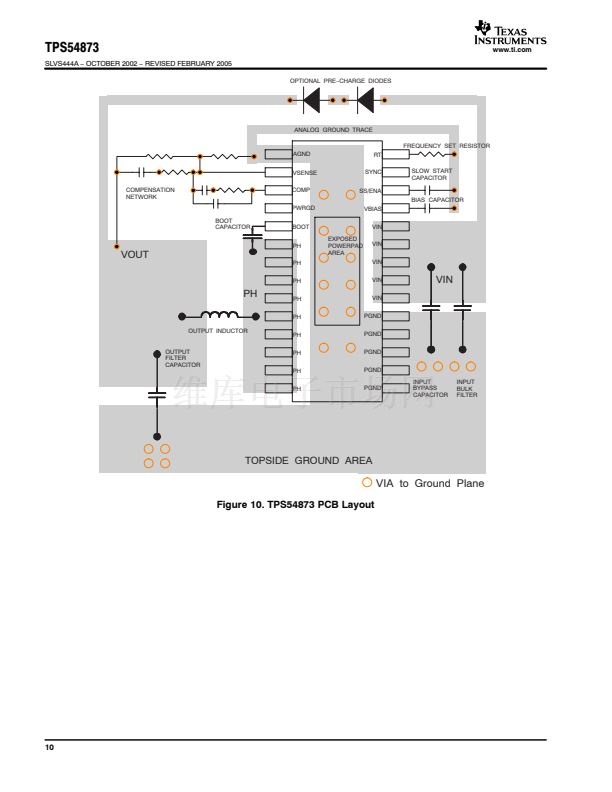

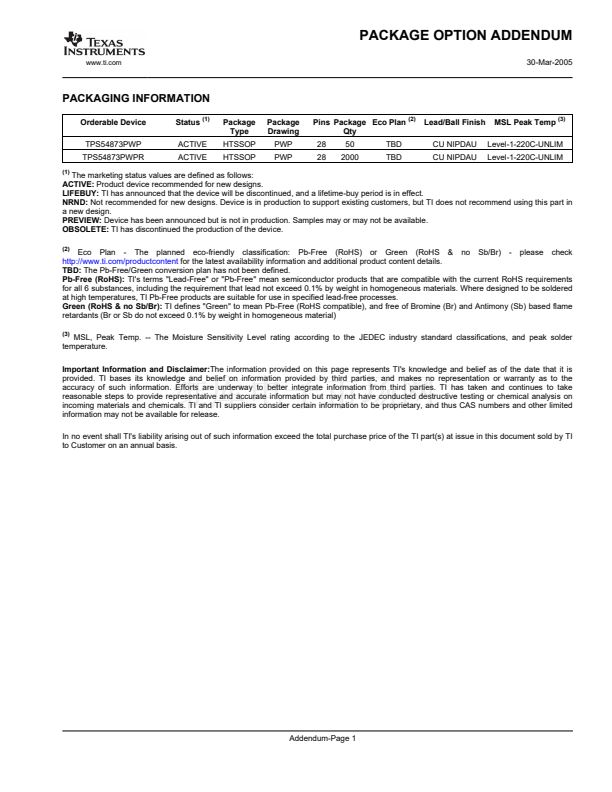

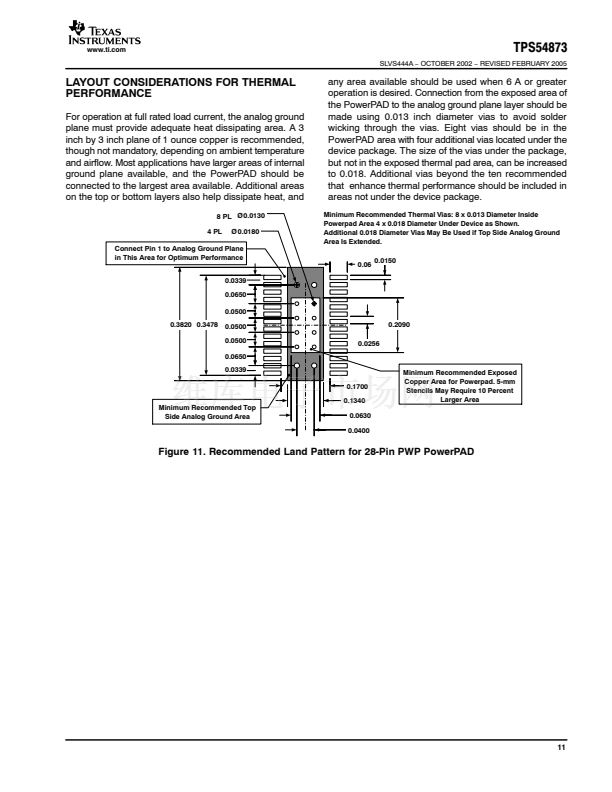

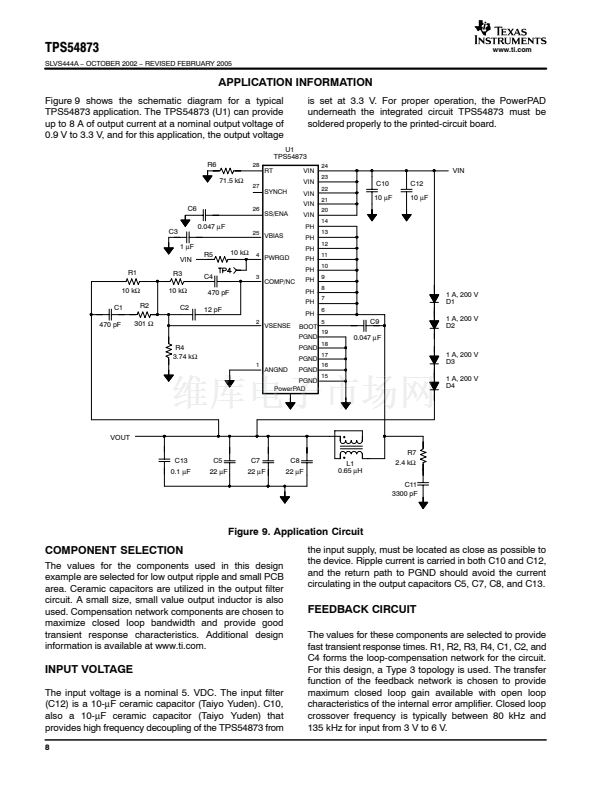

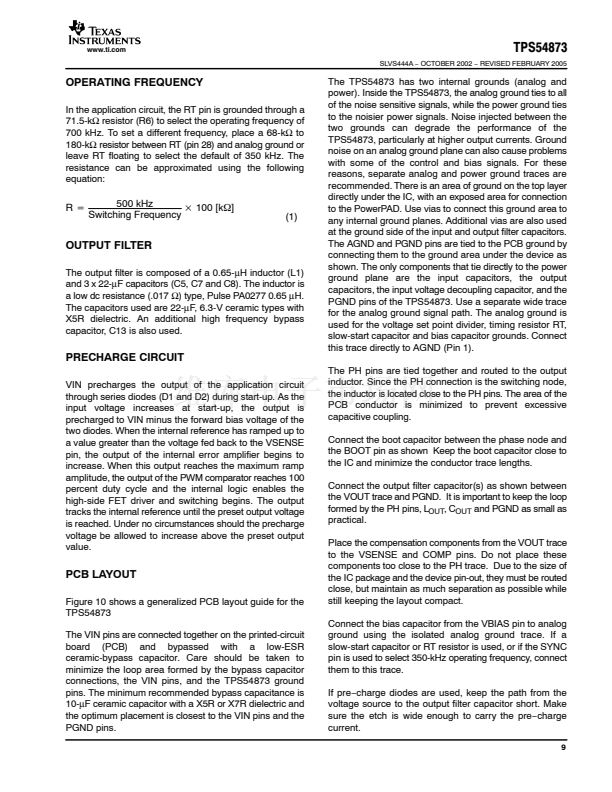

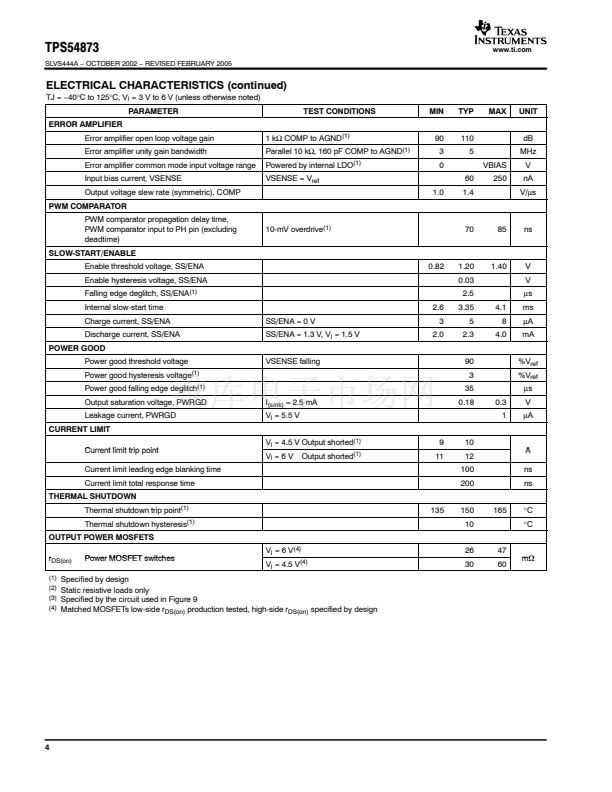

TPS54873PWPR 產品屬性

  • Understanding SWIFT Step Down Dc/Dc Converters

  • 2,000

  • 集成電路 (IC)

  • PMIC - 穩壓器 - DC DC 開關穩壓器

  • SWIFT™

  • 降壓（降壓）

  • 可調式

  • 1

  • 0.9 V ~ 3.3 V

  • 4 V ~ 6 V

  • -

  • 350kHz，550kHz

  • 8A

  • 是

  • -40°C ~ 85°C

  • 表面貼裝

  • 28-SOIC（0.173"，4.40mm 寬）裸露焊盤

  • 帶卷 (TR)

  • 28-HTSSOP

  • 296-17304-ND - EVAL MODULE FOR XILINX FPGA296-20602-ND - EVAL MOD FOR TPS54873
