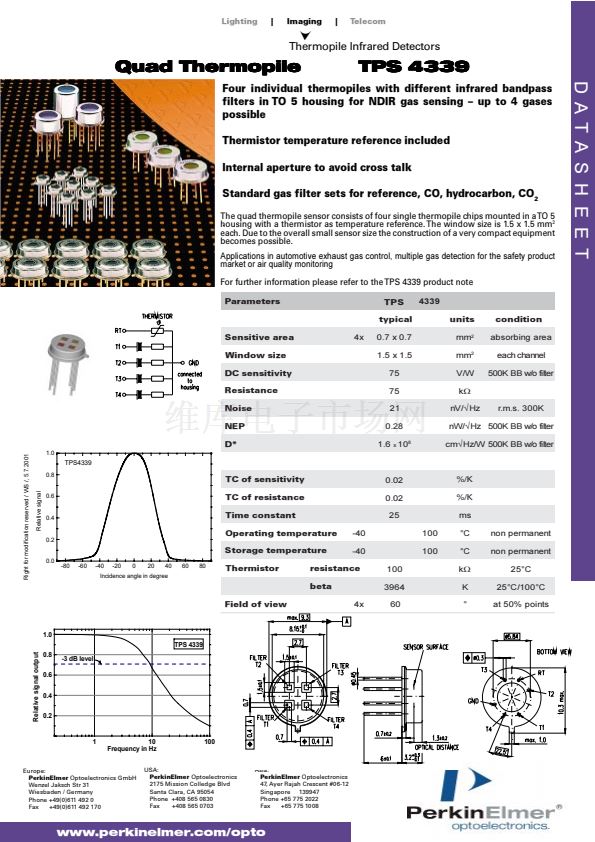

Thermopile Infrared Detectors
Quad Thermopile
Four individual thermopiles with different infrared bandpass
filters in TO 5 housing for NDIR gas sensing 聳 up to 4 gases
possible
Thermistor temperature reference included
Internal aperture to avoid cross talk
Standard gas filter sets for reference, CO, hydrocarbon, CO
2
The quad thermopile sensor consists of four single thermopile chips mounted in a TO聽5
.
housing with a thermistor as temperature reference. The window size is 1.5 x 1.5聽mm
2
each. Due to the overall small sensor size the construction of a very compact equipment
becomes possible.
Applications in automotive exhaust gas control, multiple gas detection for the safety product
market or air quality monitoring
For further information please refer to the TPS 4339 product note
Parameters
p
TPS 4339
D A T A S H E E T
TP S
typical
4339
units
condition
S ensitive area
Window size
DC sensitivity
R esistance
Noise
NEP
D*
Right for modification reserved / WS /, 5.7.2001
4x
0.7 x 0.7
1.5 x 1.5
75
75
21
0.28
1.6
x
10
8
mm
2
mm
2
V /W
kW
nV /
脰
Hz
absorbi ng area
each channel
500K BB w/o filter
r.m.s. 300K
nW/
脰
Hz 500K BB w/o filter
cm
脰
Hz/W 500K BB w/o filter
1.0
TPS4339
0.8
Relative signal
TC of sensitivity
TC of resistance
Time constant
Operating temperature
S torage temperature
0.02
0.02
25
-40
-40
100
3964
4x
60
100
100
%/K
%/K
ms
擄C
擄C
kW
K
擄
non permanent
non permanent
25擄C
25擄C /100擄C
at 50% poi nts
0.6
0.4
0.2
0.0
-80
-60
-40
-20
0
20
40
60
80
Thermistor
resistance
beta
Incidence angle in degree
Field of view
1.0
TPS 4339
Relative signal output
0.8
0.6
0.4
0.2
-3 dB level
1
10
Frequency in Hz
100
Dimensions in mm
