TPS2214DB Datasheet

  • TPS2214DB

  • DUAL-SLOT PC CARD POWER-INTERFACE SWITCH FOR SERIAL PCMCIA C...

  • 26頁

  • TI

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

TPS2214
DUAL-SLOT PC CARD POWER-INTERFACE SWITCH
FOR SERIAL PCMCIA CONTROLLERS
SLVS206A 鈥?JULY 1999
D
D
D
D
D
D
D
D
D
D
D
D
D
Fully Integrated xVCC and xVPP Switching
xVPP Programmed Independent of xVCC
3.3-V, 5-V, and/or 12-V Power Distribution
Low r
DS(on)
(60-m鈩?xVCC Switch Typical)
Short Circuit and Thermal Protection
150-碌A (Maximum) Quiescent Current
Standby Mode: 50-mA Current Limit (Typ)
12-V Supply Can Be Disabled
3.3-V Low-Voltage Mode
Meets PC Card鈩?Standards
TTL-Logic Compatible Inputs
Break-Before-Make Switching
Internal Power-On Reset
DB PACKAGE
(TOP VIEW)
5V
5V
DATA
CLOCK
LATCH
RESET
12V
AVPP
AVCC
AVCC
GND
RESET
1
2
3
4
5
6
7
8
9
10
11
12
24
23
22
21
20
19
18
17
16
15
14
13
5V
NC
MODE
NC
12V
BVPP
BVCC
BVCC
STBY
OC
3.3V
3.3V
description
鈥?The TPS2214 is identical to the TPS2216 in all respects
except packaging and pin assignments.
NC 鈥?No internal connection
The TPS2214 PC Card power-interface switch provides an integrated power-management solution for two PC
Cards. All of the discrete power MOSFETs, a logic section, current limiting, and thermal protection for PC Card
control are combined on a single integrated circuit. This device allows the distribution of 3.3-V, 5-V, and/or 12-V
power to the card. The current-limiting feature eliminates the need for fuses. Current-limit reporting can help
the user isolate a system fault.
The TPS2214 features a 3.3-V low-voltage mode that allows for 3.3-V switching without the need for 5-V power.
This feature facilitates low-power system designs such as sleep modes where only 3.3 V is available. This
device also has the ability to program the xVPP outputs independent of the xVCC outputs. A standby mode that
changes all output-current limits to 50 mA (typical) has been incorporated.
End-equipment applications for the TPS2214 include: notebook computers, desktop computers, personal
digital assistants (PDAs), digital cameras, and bar-code scanners.
AVAILABLE OPTIONS
PACKAGED DEVICES鈥?/div>
TJ
PLASTIC SMALL OUTLINE
(DB)
鈥?0擄C to 125擄C
TPS2214DB(R)
鈥?The DB package is available in tubes and left-end
taped and reeled. Add R suffix to device type (e.g.,
TPS2214DBR) for taped and reeled.
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
PC Card is a trademark of PCMCIA (Personal Computer Memory Card International Association).
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.
Copyright
漏
1999, Texas Instruments Incorporated
POST OFFICE BOX 655303
鈥?/div>
DALLAS, TEXAS 75265
1

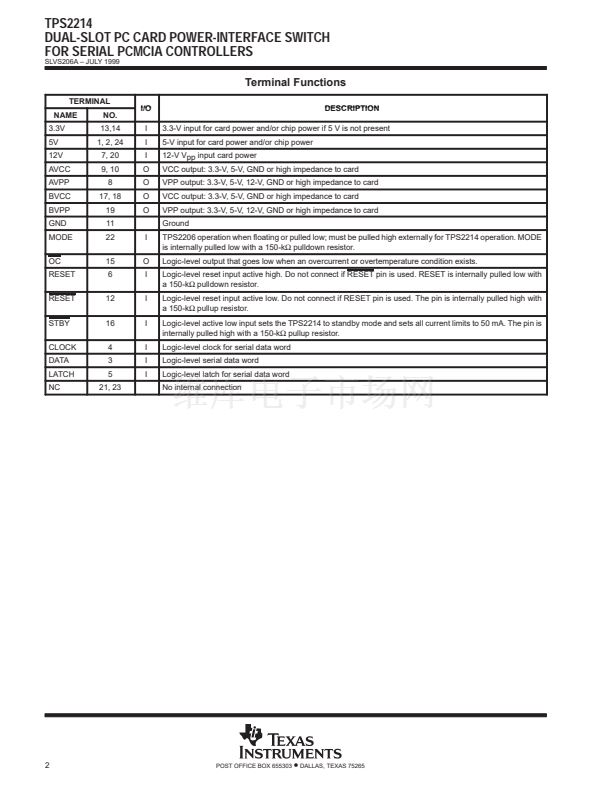

TPS2214DB 產品屬性

  • 60

  • 集成電路 (IC)

  • PMIC - 電源分配開關

  • -

  • PCMCIA/Cardbus 開關

  • 2

  • 105 毫歐

  • 是

  • 1A

  • 3.3V，5V，12V

  • -40°C ~ 85°C

  • 表面貼裝

  • 24-SSOP（0.209"，5.30mm 寬）

  • 24-SSOP

  • 管件

  • 296-2249-5
