TPA120 Datasheet

IC型號：
TPA120
PDF描述：
TRISIL
文件大?。?/label>
56.40KB
PDF頁數：
5頁
芯片廠家：
STMICROELECTRONICS

閱覽下載糾錯 0

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

廬

TPA SERIES

TRISIL鈩?/div>

FEATURES

BIDIRECTIONAL CROWBAR PROTECTION.

VOLTAGE RANGE: FROM 62 V TO 270 V.

HOLDING CURRENT :

= 150mA min.

REPETITIVE PEAK PULSE CURRENT :

= 50 A, 10/1000

碌s.

F126

DESCRIPTION

The TPA series are TRISIL devices especially de-

signed for protecting sensitive telecommunication

equipment against lightning and transient voltages

induced by AC power lines. They are available in

the F126 axial package.

TRISIL devices provide bidirectional protection

by crowbar action. Their characteristic response

to transient overvoltages makes them particularly

suited to protect voltage sensitive telecommuni-

cation equipment.

COMPLIES WITH THE

FOLLOWING STANDARDS:

(CCITT) ITU-K20

(CCITT) ITU-K17

VDE0433

VDE0878

IEC-1000-4-5

FCC Part 68, lightning surge

type A

FCC Part 68, lightning surge

type B

BELLCORE TR-NWT-001089

First level

BELLCORE TR-NWT-001089

Second level

CNET l31-24

October 1998 - Ed: 9A

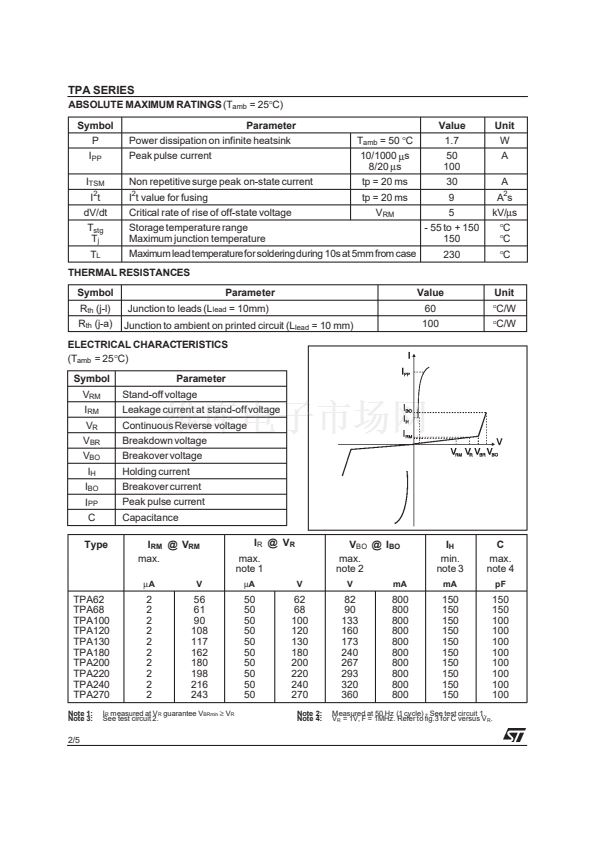

SCHEMATIC DIAGRAM

Peak Surge

Voltage

(V)

1000

1500

2000

level 3

level 4

1500

800

1000

2500

1000

5000

1000

Voltage

Waveform

(碌s)

10/700

1.2/50

10/700

1.2/50

10/160

10/560

9/720

2/10

10/1000

2/10

0.5/700

Current

Waveform

(碌s)

5/310

1/20

5/310

8/20

10/160

10/560

5/320

2/10

10/1000

2/10

0.8/310

Admissible

Ipp

(A)

100

150

Necessary

Resistor

(鈩?

12.5

6.5

11.5

1/5

標準包裝
1,000
類別
過電壓，電流，溫度裝置
家庭
TVS - 二極管
系列
TRISIL™
電壓 - 反向隔離（標準值）
108V
電壓 - 擊穿
120V
功率（瓦特）
-
電極標記
雙向
安裝類型
通孔
封裝/外殼
DO-204AC，DO-15，軸向
供應商設備封裝
DO-15
包裝
帶盒（TB）
