TPA0172 Datasheet

  • TPA0172

  • 2-W STEREO AUDIO POWER AMPLIFIER WITH I2C BUS

  • 31頁

  • TI

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

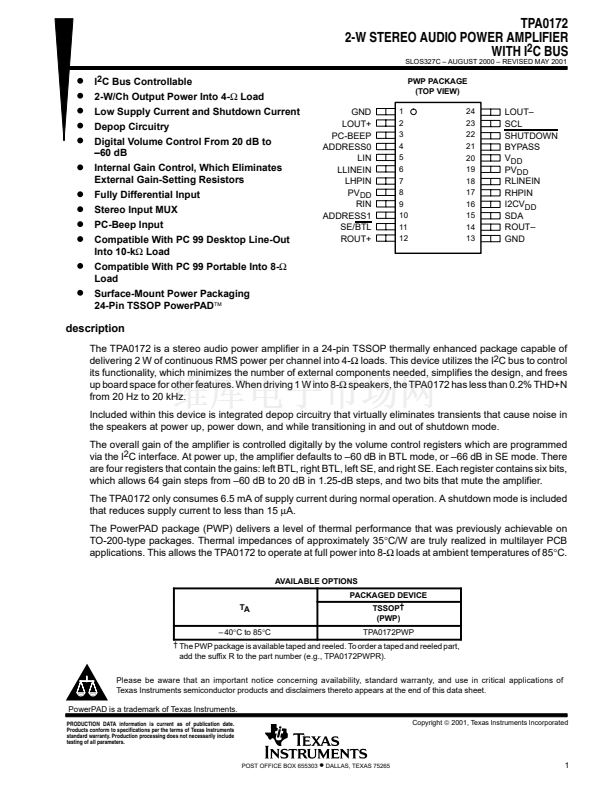

TPA0172
2-W STEREO AUDIO POWER AMPLIFIER
WITH I
2
C BUS
SLOS327C 鈥?AUGUST 2000 鈥?REVISED MAY 2001
D
D
D
D
D
D
D
D
D
D
D
D
I
2
C Bus Controllable
2-W/Ch Output Power Into 4-鈩?Load
Low Supply Current and Shutdown Current
Depop Circuitry
Digital Volume Control From 20 dB to
鈥?0 dB
Internal Gain Control, Which Eliminates
External Gain-Setting Resistors
Fully Differential Input
Stereo Input MUX
PC-Beep Input
Compatible With PC 99 Desktop Line-Out
Into 10-k鈩?Load
Compatible With PC 99 Portable Into 8-鈩?/div>
Load
Surface-Mount Power Packaging
24-Pin TSSOP PowerPAD錚?/div>
PWP PACKAGE
(TOP VIEW)
GND
LOUT+
PC-BEEP
ADDRESS0
LIN
LLINEIN
LHPIN
PV
DD
RIN
ADDRESS1
SE/BTL
ROUT+
1
2
3
4
5
6
7
8
9
10
11
12
24
23
22
21
20
19
18
17
16
15
14
13
LOUT鈥?/div>
SCL
SHUTDOWN
BYPASS
V
DD
PV
DD
RLINEIN
RHPIN
I2CV
DD
SDA
ROUT鈥?/div>
GND
description
The TPA0172 is a stereo audio power amplifier in a 24-pin TSSOP thermally enhanced package capable of
delivering 2 W of continuous RMS power per channel into 4-鈩?loads. This device utilizes the I
2
C bus to control
its functionality, which minimizes the number of external components needed, simplifies the design, and frees
up board space for other features. When driving 1 W into 8-鈩?speakers, the TPA0172 has less than 0.2% THD+N
from 20 Hz to 20 kHz.
Included within this device is integrated depop circuitry that virtually eliminates transients that cause noise in
the speakers at power up, power down, and while transitioning in and out of shutdown mode.

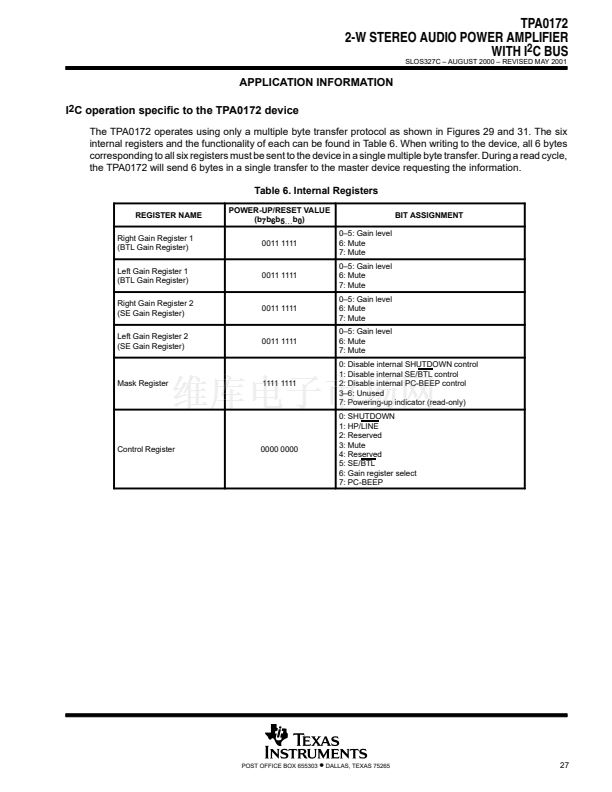

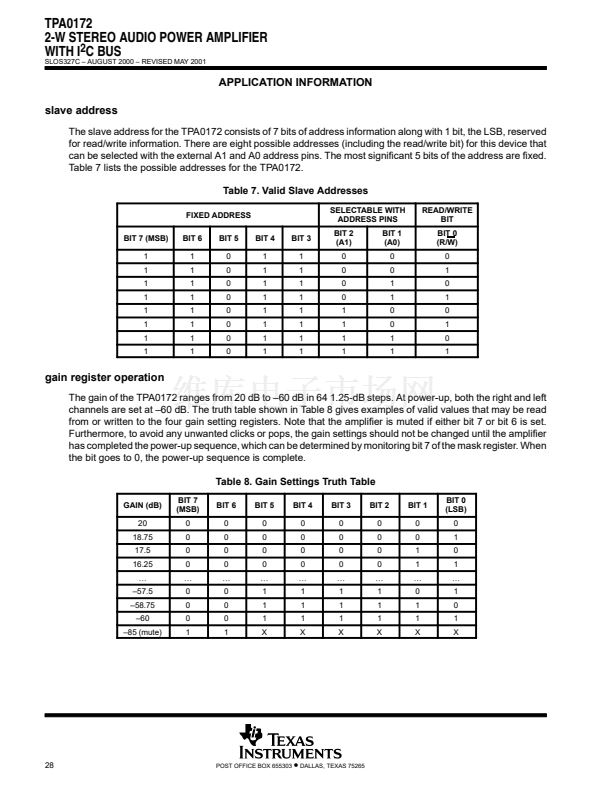

The overall gain of the amplifier is controlled digitally by the volume control registers which are programmed
via the I
2
C interface. At power up, the amplifier defaults to 鈥?0 dB in BTL mode, or 鈥?6 dB in SE mode. There
are four registers that contain the gains: left BTL, right BTL, left SE, and right SE. Each register contains six bits,
which allows 64 gain steps from 鈥?0 dB to 20 dB in 1.25-dB steps, and two bits that mute the amplifier.
The TPA0172 only consumes 6.5 mA of supply current during normal operation. A shutdown mode is included
that reduces supply current to less than 15
碌A(chǔ).
The PowerPAD package (PWP) delivers a level of thermal performance that was previously achievable on
TO-200-type packages. Thermal impedances of approximately 35擄C/W are truly realized in multilayer PCB
applications. This allows the TPA0172 to operate at full power into 8-鈩?loads at ambient temperatures of 85擄C.
AVAILABLE OPTIONS
TA
鈥?40擄C to 85擄C
PACKAGED DEVICE
TSSOP鈥?/div>
(PWP)
TPA0172PWP
鈥?The PWP package is available taped and reeled. To order a taped and reeled part,
add the suffix R to the part number (e.g., TPA0172PWPR).

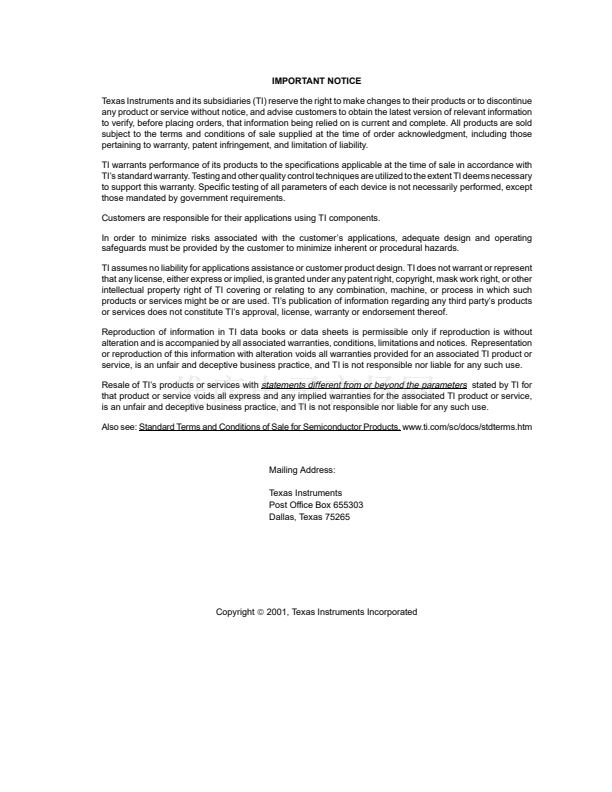

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
PowerPAD is a trademark of Texas Instruments.
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.
Copyright
錚?/div>
2001, Texas Instruments Incorporated
POST OFFICE BOX 655303
鈥?/div>
DALLAS, TEXAS 75265
1
