Delivers up to 16A with minimal derating
Ultra high Efficiency to 96%
Fast Transient Response
Remote On/Off Control
Wide Temperature Range( -40擄C to 85擄C)
SMT Package fully DOSA compatible
Lead free Design 鈥?RoHS compliant

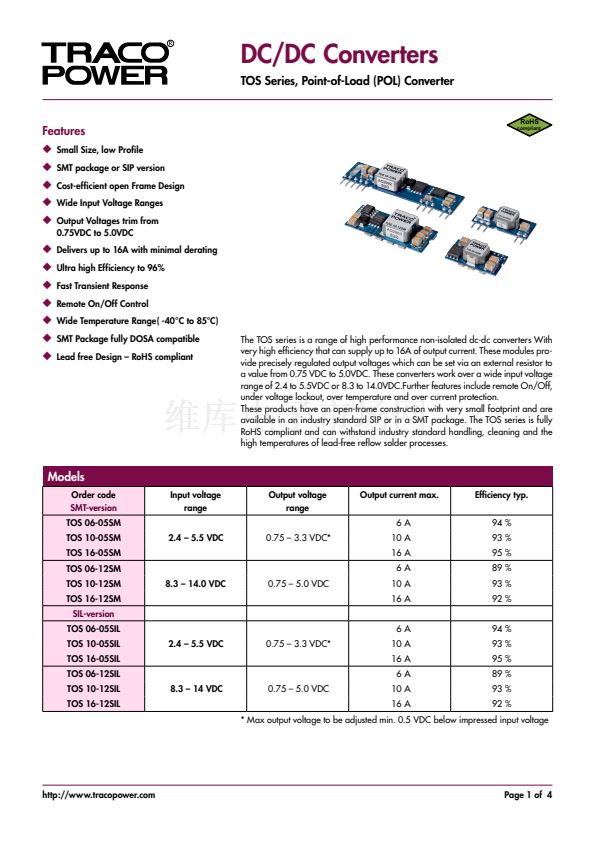

The TOS series is a range of high performance non-isolated dc-dc converters With
very high efficiency that can supply up to 16A of output current. These modules pro-
vide precisely regulated output voltages which can be set via an external resistor to
a value from 0.75 VDC to 5.0VDC. These converters work over a wide input voltage
range of 2.4 to 5.5VDC or 8.3 to 14.0VDC.Further features include remote On/Off,
under voltage lockout, over temperature and over current protection.
These products have an open-frame construction with very small footprint and are
available in an industry standard SIP or in a SMT package. The TOS series is fully
RoHS compliant and can withstand industry standard handling, cleaning and the
high temperatures of lead-free reflow solder processes.
Models
Order code
SMT-version
TOS 06-05SM
TOS 10-05SM
TOS 16-05SM
TOS 06-12SM
TOS 10-12SM
TOS 16-12SM
SIL-version
TOS 06-05SIL
TOS 10-05SIL
TOS 16-05SIL
TOS 06-12SIL
TOS 10-12SIL
TOS 16-12SIL
8.3 鈥?14 VDC
0.75 鈥?5.0 VDC
2.4 鈥?5.5 VDC
0.75 鈥?3.3 VDC*
6A
10 A
16 A
6A
10 A
16 A
94 %
93 %
95 %
89 %
93 %
92 %
8.3 鈥?14.0 VDC
0.75 鈥?5.0 VDC
2.4 鈥?5.5 VDC
0.75 鈥?3.3 VDC*
Input voltage
range
Output voltage
range
Output current max.
6A
10 A
16 A
6A
10 A
16 A
Ef鏗乧iency typ.
94 %
93 %
95 %
89 %
93 %
92 %
* Max output voltage to be adjusted min. 0.5 VDC below impressed input voltage
