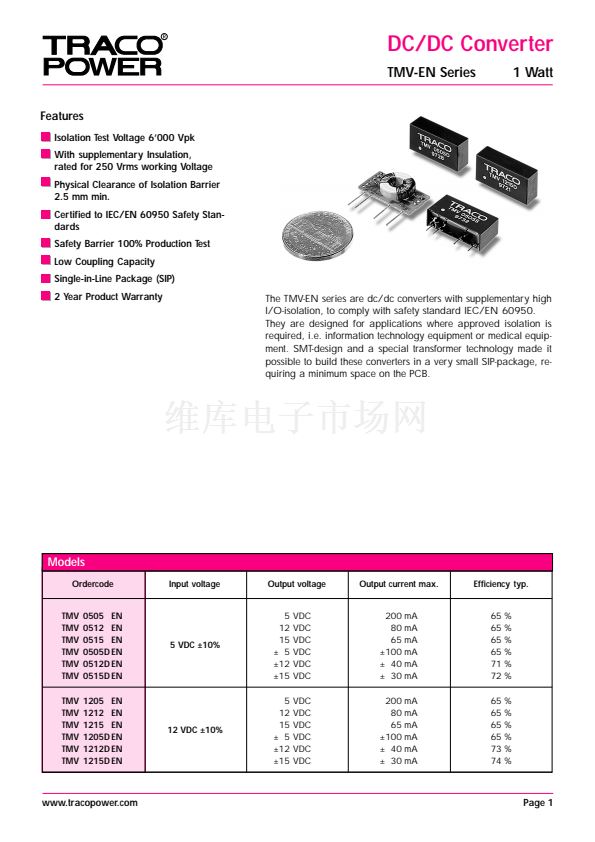

DC/DC Converter
TMV-EN Series
Features
Isolation Test Voltage 6鈥?00 Vpk
With supplementary Insulation,
rated for 250 Vrms working Voltage
Physical Clearance of Isolation Barrier
2.5 mm min.
Certified to IEC/EN 60950 Safety Stan-
dards
Safety Barrier 100% Production Test
Low Coupling Capacity
Single-in-Line Package (SIP)
2 Year Product Warranty
The TMV-EN series are dc/dc converters with supplementary high
I/O-isolation, to comply with safety standard IEC/EN 60950.
They are designed for applications where approved isolation is
required, i.e. information technology equipment or medical equip-
ment. SMT-design and a special transformer technology made it
possible to build these converters in a very small SIP-package, re-
quiring a minimum space on the PCB.
1 Watt
Models
Ordercode
TMV
TMV
TMV
TMV
TMV
TMV
TMV
TMV
TMV
TMV
TMV
TMV
0505 EN
0512 EN
0515 EN
0505D EN
0512D EN
0515D EN
1205 EN
1212 EN
1215 EN
1205D EN
1212D EN
1215D EN
Input voltage
Output voltage
5
12
15
鹵 5
鹵12
鹵15
5
12
15
鹵 5
鹵12
鹵15
VDC
VDC
VDC
VDC
VDC
VDC
VDC
VDC
VDC
VDC
VDC
VDC
Output current max.
200 mA
80 mA
65 mA
鹵100 mA
鹵 40 mA
鹵 30 mA
200 mA
80 mA
65 mA
鹵100 mA
鹵 40 mA
鹵 30 mA
Efficiency typ.
65
65
65
65
71
72
65
65
65
65
73
74
%
%
%
%
%
%
%
%
%
%
%
%
5 VDC 鹵10%
12 VDC 鹵10%
www.tracopower.com
Page 1
