TMPN3120FE3M Datasheet

  • TMPN3120FE3M

  • TOSHIBA CMOS DIGITAL INTEGRATED CIRCUIT SILICON MONOLITHIC

  • 12頁

  • TOSHIBA

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

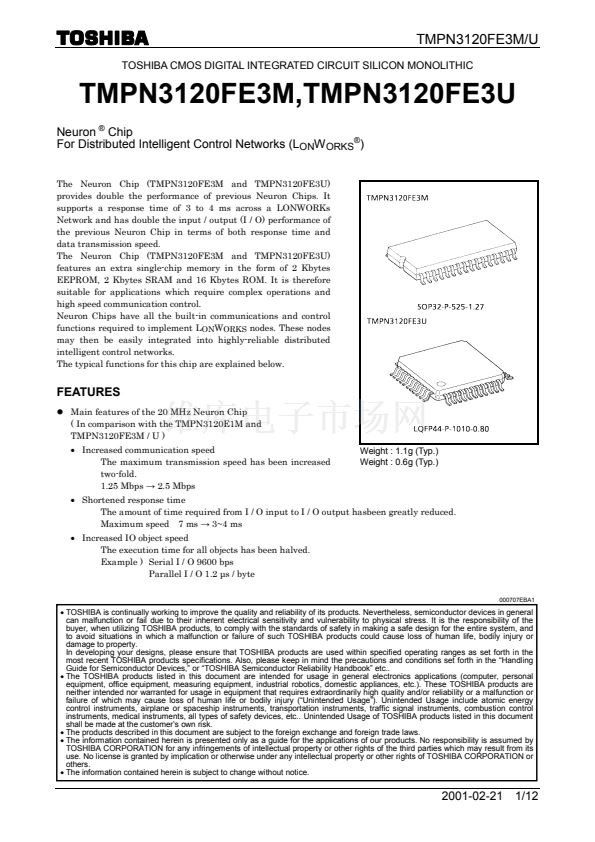

TMPN3120FE3M/U
TOSHIBA CMOS DIGITAL INTEGRATED CIRCUIT SILICON MONOLITHIC
TMPN3120FE3M,TMPN3120FE3U
Neuron
廬
Chip
For Distributed Intelligent Control Networks (L
ON
W
ORKS
廬
)
The Neuron Chip (TMPN3120FE3M and TMPN3120FE3U)
provides double the performance of previous Neuron Chips. It
supports a response time of 3 to 4 ms across a LONWORKs
Network and has double the input / output (I / O) performance of
the previous Neuron Chip in terms of both response time and
data transmission speed.
The Neuron Chip (TMPN3120FE3M and TMPN3120FE3U)
features an extra single-chip memory in the form of 2 Kbytes
EEPROM, 2 Kbytes SRAM and 16 Kbytes ROM. It is therefore
suitable for applications which require complex operations and
high speed communication control.
Neuron Chips have all the built-in communications and control
functions required to implement L
ON
W
ORKS
nodes. These nodes
may then be easily integrated into highly-reliable distributed
intelligent control networks.
The typical functions for this chip are explained below.
FEATURES
l
Main features of the 20 MHz Neuron Chip
( In comparison with the TMPN3120E1M and
TMPN3120FE3M / U )
路
Increased communication speed
The maximum transmission speed has been increased
two-fold.
1.25 Mbps
鈫?/div>
2.5 Mbps

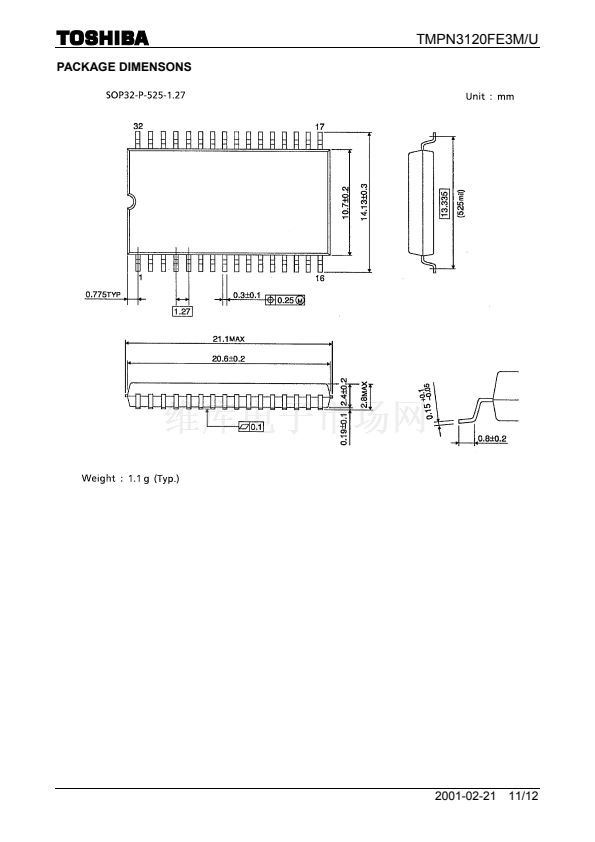

Weight : 1.1g (Typ.)

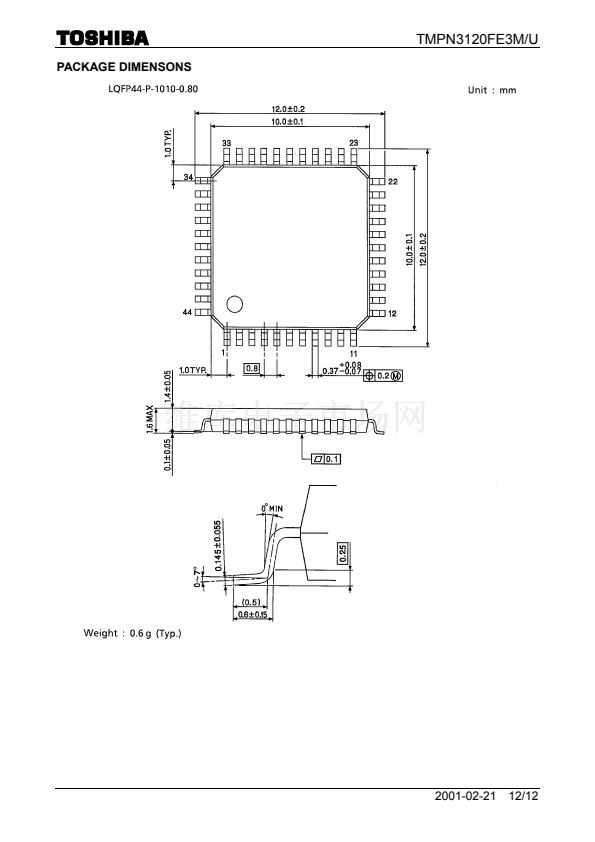

Weight : 0.6g (Typ.)
路
Shortened response time
The amount of time required from I / O input to I / O output hasbeen greatly reduced.
Maximum speed 7 ms
鈫?/div>
3~4 ms
路

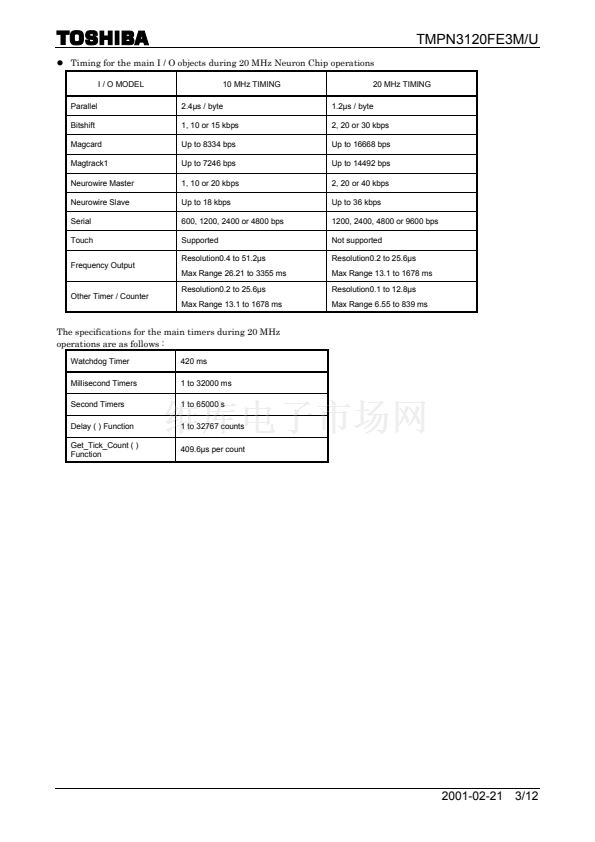

Increased IO object speed
The execution time for all objects has been halved.
Example ) Serial I / O 9600 bps
Parallel I / O 1.2 碌s / byte
000707EBA1
路
TOSHIBA is continually working to improve the quality and reliability of its products. Nevertheless, semiconductor devices in general
can malfunction or fail due to their inherent electrical sensitivity and vulnerability to physical stress. It is the responsibility of the
buyer, when utilizing TOSHIBA products, to comply with the standards of safety in making a safe design for the entire system, and
to avoid situations in which a malfunction or failure of such TOSHIBA products could cause loss of human life, bodily injury or
damage to property.
In developing your designs, please ensure that TOSHIBA products are used within specified operating ranges as set forth in the
most recent TOSHIBA products specifications. Also, please keep in mind the precautions and conditions set forth in the 鈥淗andling
Guide for Semiconductor Devices,鈥?or 鈥淭OSHIBA Semiconductor Reliability Handbook鈥?etc..
路
The TOSHIBA products listed in this document are intended for usage in general electronics applications (computer, personal
equipment, office equipment, measuring equipment, industrial robotics, domestic appliances, etc.). These TOSHIBA products are
neither intended nor warranted for usage in equipment that requires extraordinarily high quality and/or reliability or a malfunction or
failure of which may cause loss of human life or bodily injury (鈥淯nintended Usage鈥?. Unintended Usage include atomic energy
control instruments, airplane or spaceship instruments, transportation instruments, traffic signal instruments, combustion control
instruments, medical instruments, all types of safety devices, etc.. Unintended Usage of TOSHIBA products listed in this document
shall be made at the customer鈥檚 own risk.
路
The products described in this document are subject to the foreign exchange and foreign trade laws.
路
The information contained herein is presented only as a guide for the applications of our products. No responsibility is assumed by
TOSHIBA CORPORATION for any infringements of intellectual property or other rights of the third parties which may result from its
use. No license is granted by implication or otherwise under any intellectual property or other rights of TOSHIBA CORPORATION or
others.
路
The information contained herein is subject to change without notice.
2001-02-21
1/12
