TMPA402DS Datasheet

  • TMPA402DS

  • 6W/Ch STEREO CLASS-D AUDIO POWER AMPLIFIER

  • 233.52KB

  • 13頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

Tai-1 Microelectronics
www.taimec.com.tw
/
www.class-d.com.tw
Preliminary
TMPA402DS
Rev.2.0
November 21, 2005
6W/Ch STEREO CLASS-D AUDIO POWER AMPLIFIER
GENERAL DESCRIPTION

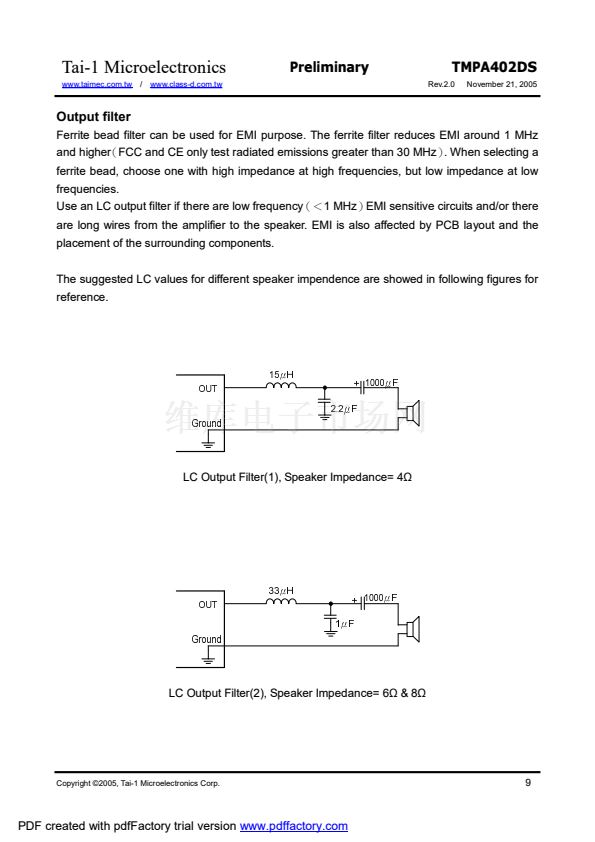

The TMPA402DS is a Single-ended (SE) output Class-D
audio power amplifier for driving speakers with high power
efficiency. It is able to drive 4惟, 6惟, 8惟 or 16惟 speakers.
The output power can be up to 6W per channel. No external
heat-sink is necessary.

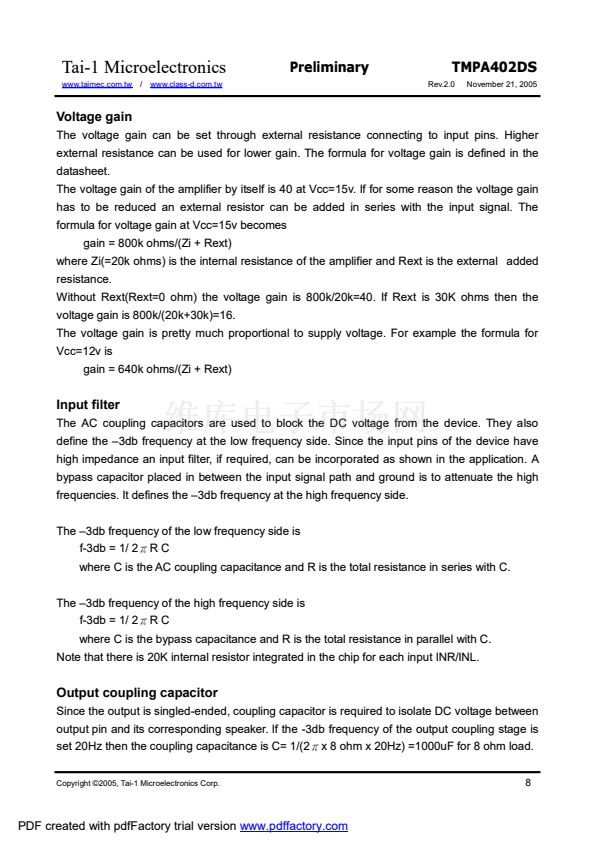

The gain of the amplifier can be changed by adding external
input resistance.
Thermal
protection
and
short-circuit
protection
are
FEATURES
鈾?/div>

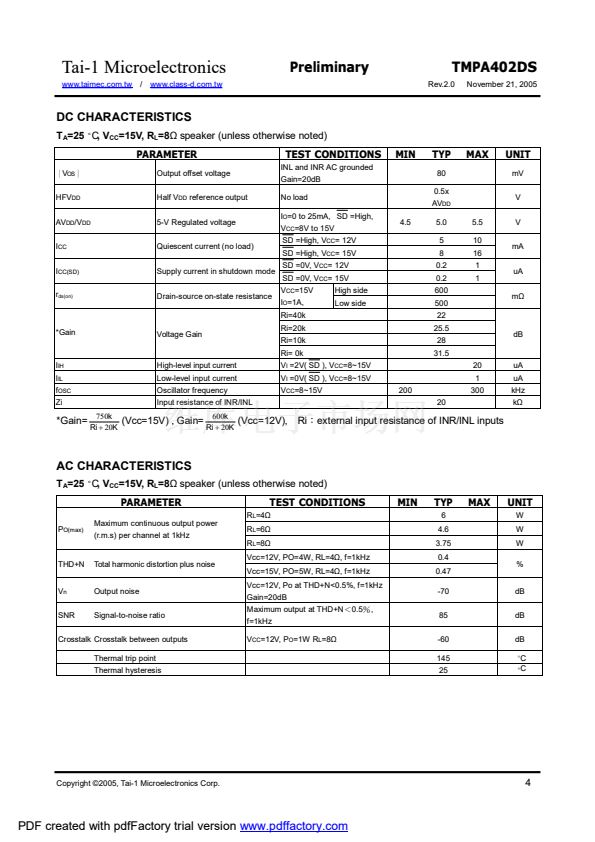

6W/Ch Stereo Class-D Output
鈾?/div>

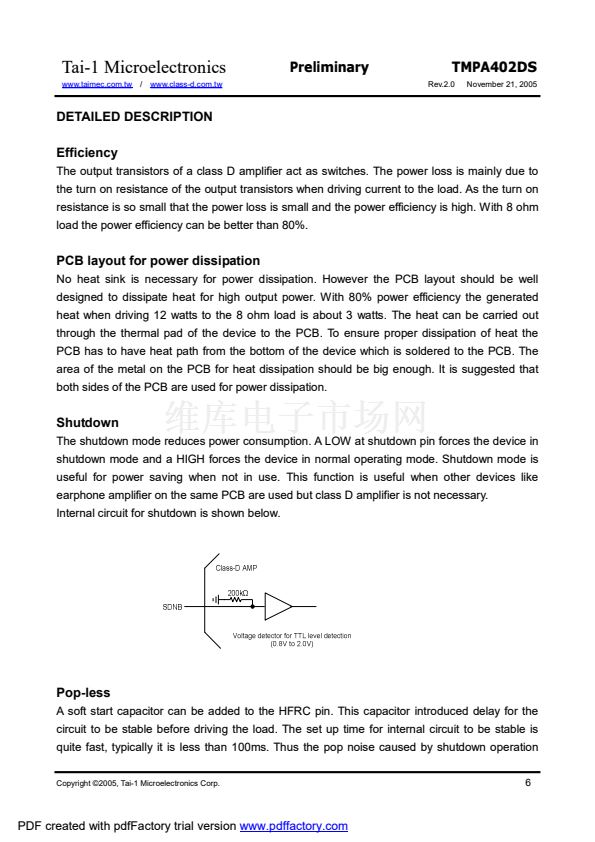

Power efficiency is up to 82%
鈾?/div>
Time delay for de-pop control
鈾?/div>

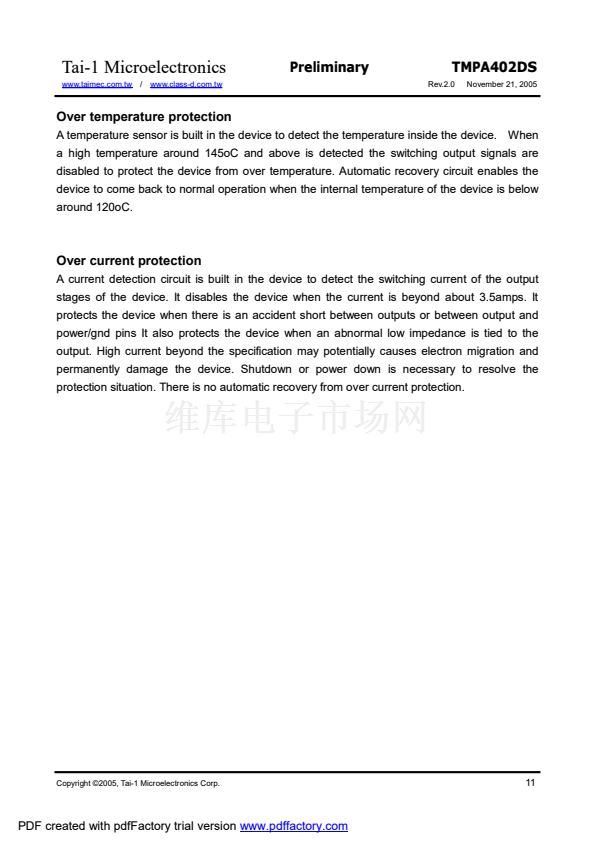

Thermal Protection
鈾?/div>
Output Pin Short-Circuit Protection (Short to
Other Outputs, Short to VCC, Short to Ground)
鈾?/div>
Low Quiescent Current (5mA Typical at 12V)
鈾?/div>
Low Current in Shutdown Mode (<1碌A(chǔ) Typical)
鈾?/div>
Separate VCC & PVCC
integrated for safety purpose.
The internal depop circuitry eliminates pop noise at
power-up & shutdown operations.
APPLICATIONS
LCD Monitors, TVs, DVD Players and Powered Speakers

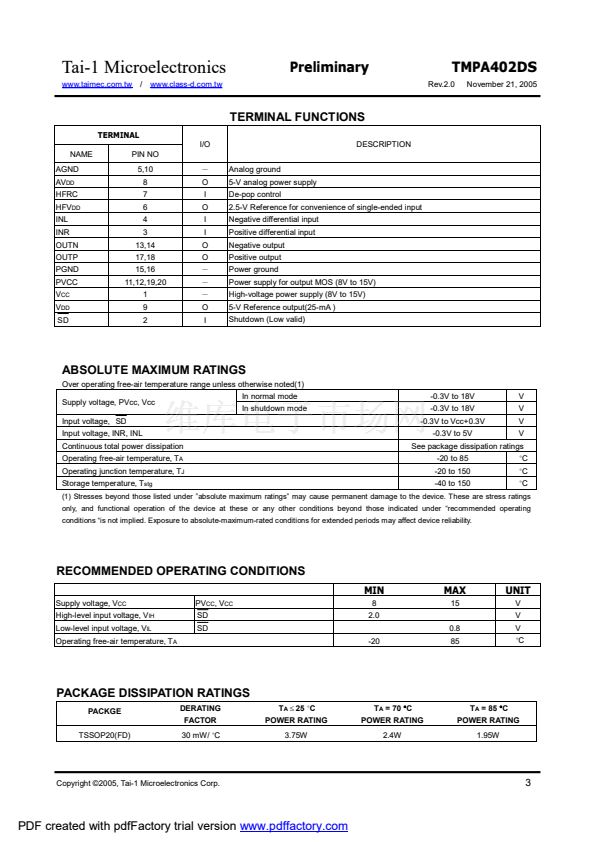

PACKAGE
TSSOP20 available
For best performance, please refer to
http://www.taimec.com.tw/English/EVM.htm
http://www.class-d.com.tw/English/EVM.htm
for PCB layout.

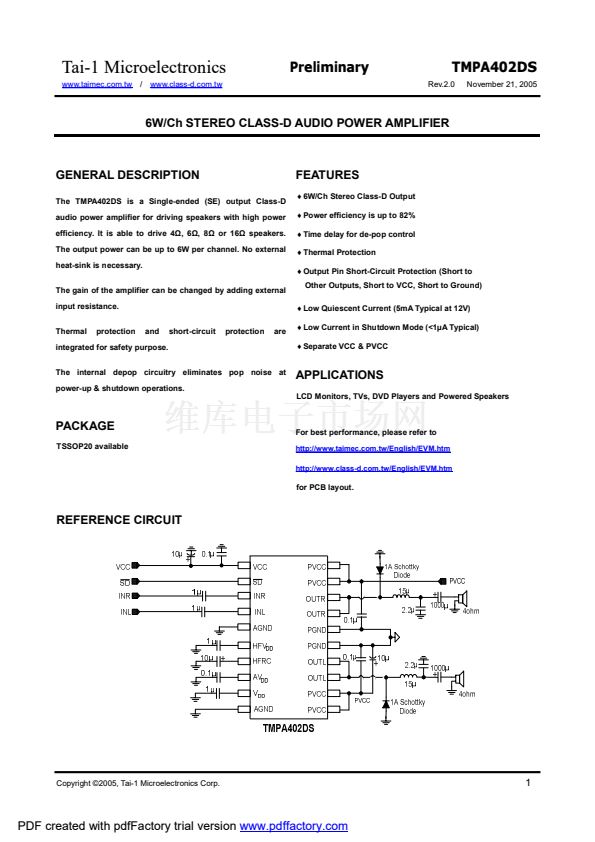

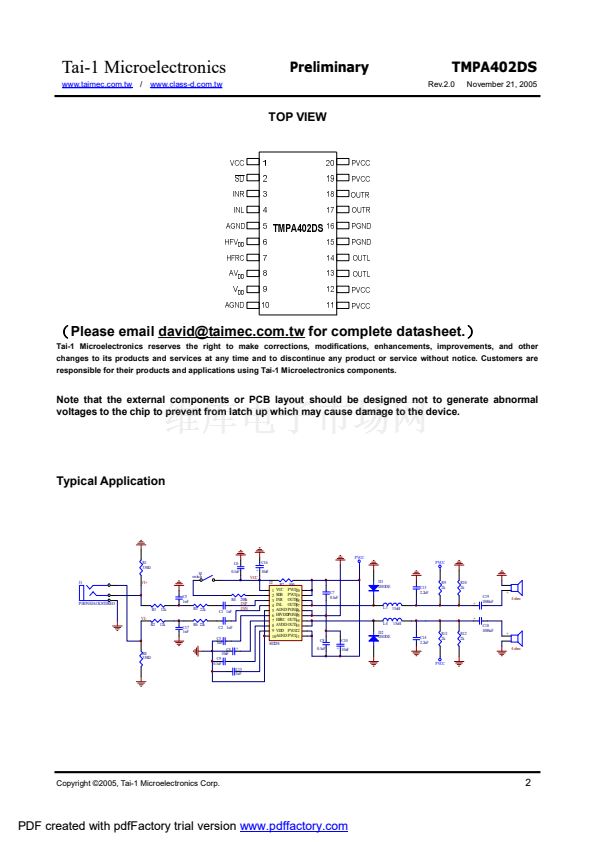

REFERENCE CIRCUIT
Copyright
漏2005,
Tai-1 Microelectronics Corp.
1
PDF created with pdfFactory trial version
www.pdffactory.com
