TLE5250 Datasheet

  • TLE5250

  • 2.5-A High Performance Smart Power Stepper-Motor Driver with...

  • Infineon   Infineon

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

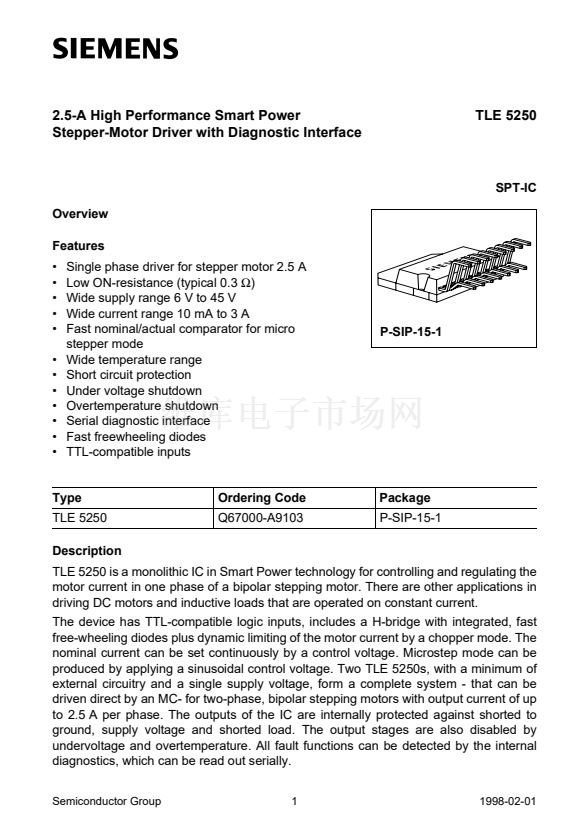

2.5-A High Performance Smart Power
Stepper-Motor Driver with Diagnostic Interface
TLE 5250
SPT-IC
Overview
Features
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Single phase driver for stepper motor 2.5 A
Low ON-resistance (typical 0.3
鈩?
Wide supply range 6 V to 45 V
Wide current range 10 mA to 3 A
Fast nominal/actual comparator for micro
stepper mode
Wide temperature range
Short circuit protection
Under voltage shutdown
Overtemperature shutdown
Serial diagnostic interface
Fast freewheeling diodes
TTL-compatible inputs

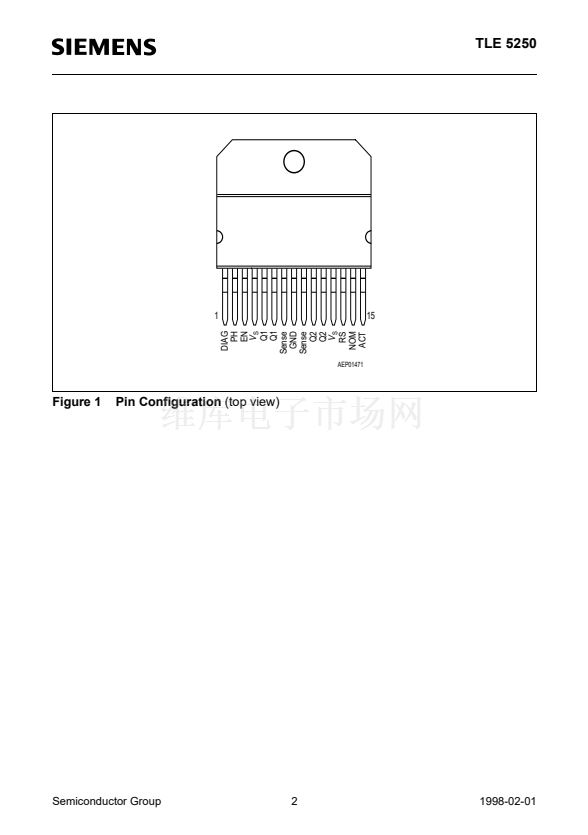

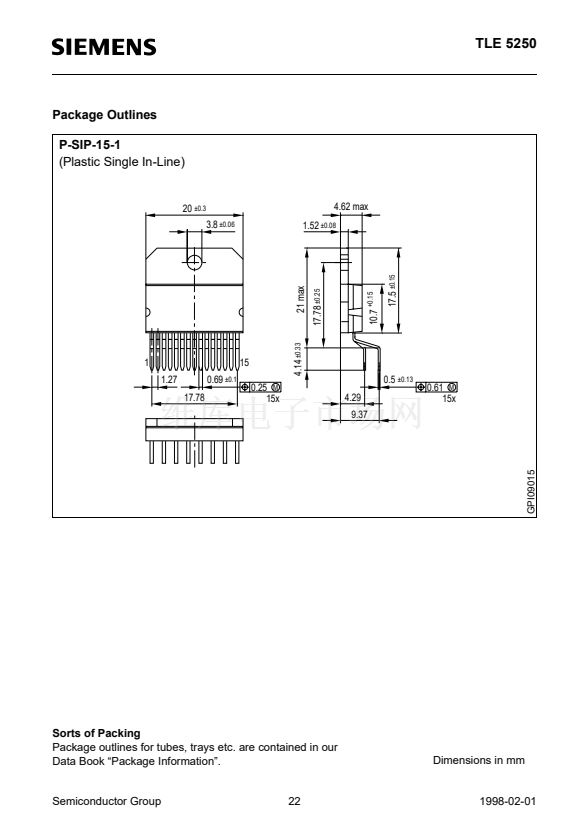

P-SIP-15-1
Type
TLE 5250
Description
Ordering Code
Q67000-A9103
Package
P-SIP-15-1
TLE 5250 is a monolithic IC in Smart Power technology for controlling and regulating the
motor current in one phase of a bipolar stepping motor. There are other applications in
driving DC motors and inductive loads that are operated on constant current.

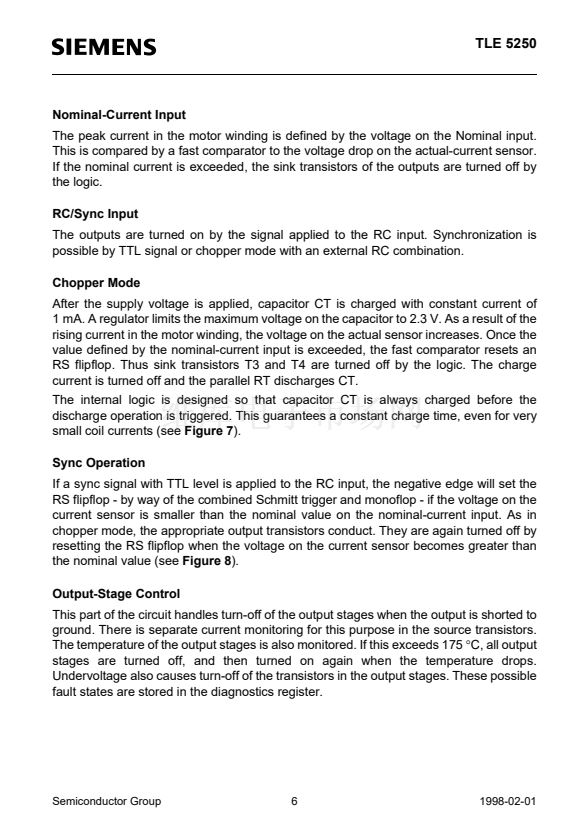

The device has TTL-compatible logic inputs, includes a H-bridge with integrated, fast
free-wheeling diodes plus dynamic limiting of the motor current by a chopper mode. The
nominal current can be set continuously by a control voltage. Microstep mode can be
produced by applying a sinusoidal control voltage. Two TLE 5250s, with a minimum of
external circuitry and a single supply voltage, form a complete system - that can be
driven direct by an MC- for two-phase, bipolar stepping motors with output current of up
to 2.5 A per phase. The outputs of the IC are internally protected against shorted to
ground, supply voltage and shorted load. The output stages are also disabled by
undervoltage and overtemperature. All fault functions can be detected by the internal
diagnostics, which can be read out serially.
Semiconductor Group
1
1998-02-01
