TLE5203 Datasheet

  • TLE5203

  • 3-A DC Motor Driver

  • Infineon   Infineon

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

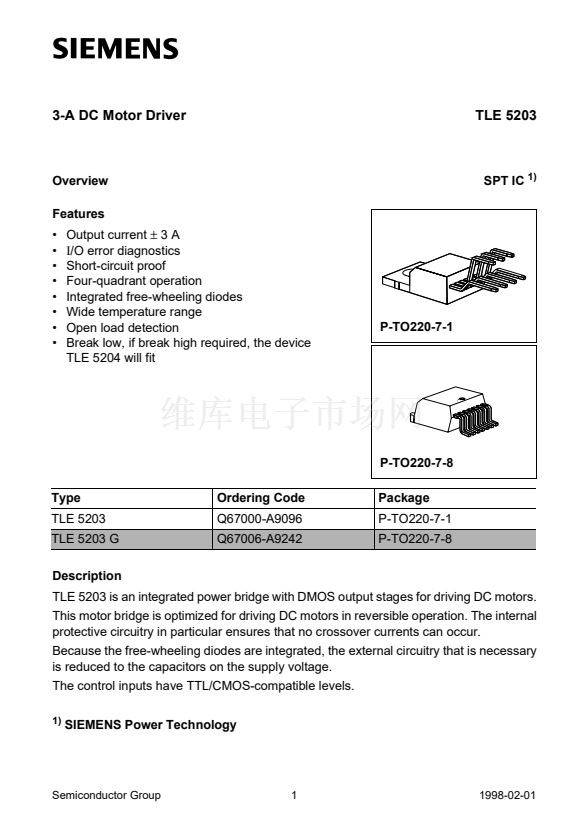

3-A DC Motor Driver
TLE 5203
Overview
Features
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Output current
鹵
3 A
I/O
error diagnostics
Short-circuit proof
Four-quadrant operation
Integrated free-wheeling diodes
Wide temperature range
Open load detection
Break low, if break high required, the device
TLE 5204 will fit
SPT IC
1)
P-TO220-7-1
P-TO220-7-8
Type
TLE 5203
TLE 5203 G
Description

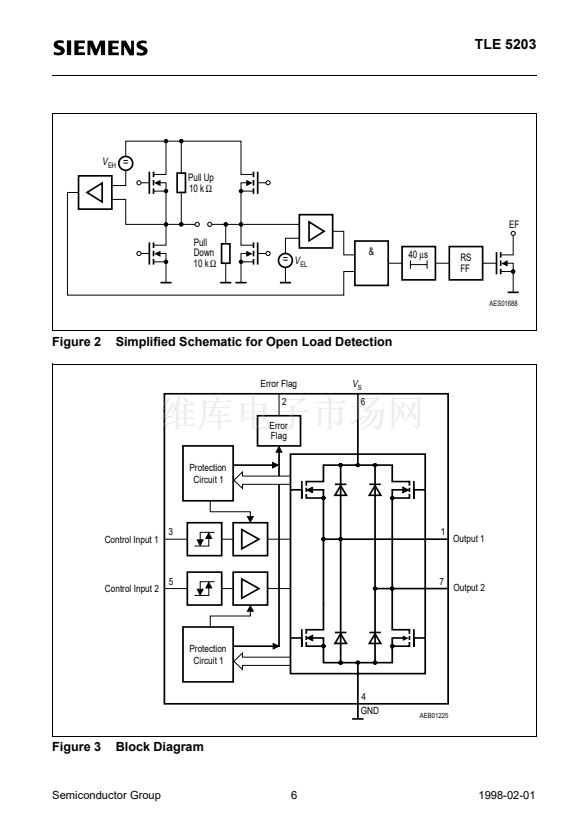

TLE 5203 is an integrated power bridge with DMOS output stages for driving DC motors.
This motor bridge is optimized for driving DC motors in reversible operation. The internal
protective circuitry in particular ensures that no crossover currents can occur.
Because the free-wheeling diodes are integrated, the external circuitry that is necessary
is reduced to the capacitors on the supply voltage.
The control inputs have TTL/CMOS-compatible levels.
1)
Ordering Code
Q67000-A9096
Q67006-A9242
Package
P-TO220-7-1
P-TO220-7-8
SIEMENS Power Technology
Semiconductor Group
1
1998-02-01
