TLE4267 Datasheet

  • TLE4267

  • 5-V Low-Drop Voltage Regulator

  • Infineon   Infineon

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

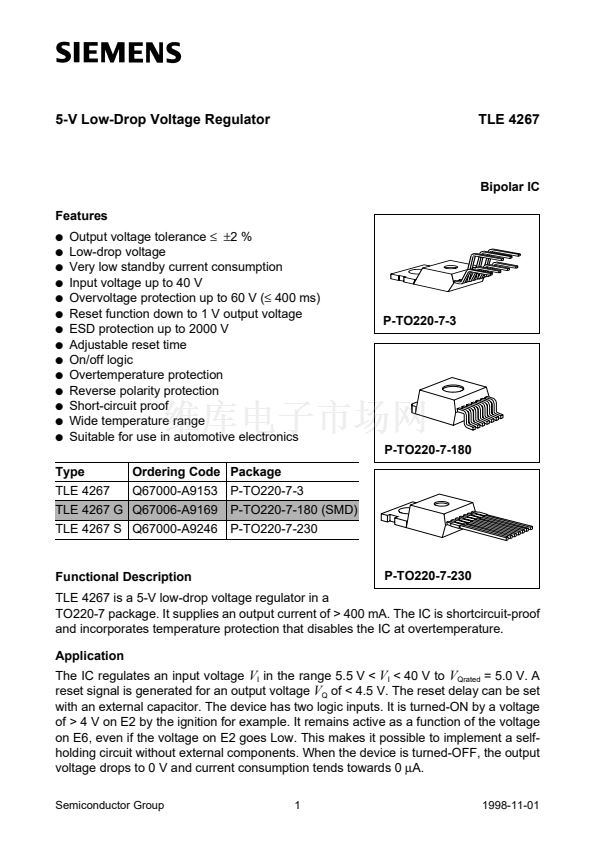

TLE 4267
5-V Low-Drop Voltage Regulator
TLE 4267
Bipolar IC
Features
q
q
q
q
q
q
q
q
q
q
q
q
q
q
Output voltage tolerance
鈮?鹵
2 %
Low-drop voltage
Very low standby current consumption
Input voltage up to 40 V
Overvoltage protection up to 60 V (鈮?400 ms)
Reset function down to 1 V output voltage
ESD protection up to 2000 V
Adjustable reset time
On/off logic
Overtemperature protection
Reverse polarity protection
Short-circuit proof
Wide temperature range
Suitable for use in automotive electronics
Ordering Code Package
Q67000-A9153
P-TO220-7-3
P-TO220-7-180 (SMD)
P-TO220-7-230
P-TO220-7-3
P-TO220-7-180
Type
TLE 4267
TLE 4267 G Q67006-A9169
TLE 4267 S Q67000-A9246
Functional Description
P-TO220-7-230
TLE 4267 is a 5-V low-drop voltage regulator in a
TO220-7 package. It supplies an output current of > 400 mA. The IC is shortcircuit-proof
and incorporates temperature protection that disables the IC at overtemperature.
Application
The IC regulates an input voltage
V
I
in the range 5.5 V <
V
I
< 40 V to
V
Qrated
= 5.0 V. A
reset signal is generated for an output voltage
V
Q
of < 4.5 V. The reset delay can be set
with an external capacitor. The device has two logic inputs. It is turned-ON by a voltage
of > 4 V on E2 by the ignition for example. It remains active as a function of the voltage
on E6, even if the voltage on E2 goes Low. This makes it possible to implement a self-
holding circuit without external components. When the device is turned-OFF, the output
voltage drops to 0 V and current consumption tends towards 0
碌A(chǔ).
Semiconductor Group
1
1998-11-01

TLE4267 產品屬性

  • TLE4267

  • 500

  • 集成電路 (IC)

  • PMIC - 穩壓器 - 線性

  • -

  • 正，固定式

  • 5V

  • 5.5 V ~ 40 V

  • 0.3V @ 400mA

  • 1

  • 400mA（最小值）

  • -40°C ~ 150°C

  • 通孔

  • TO-220-7 成形引線

  • PG-TO220-7

  • 管件

  • SP000012167SP000306738TLE4267NK
