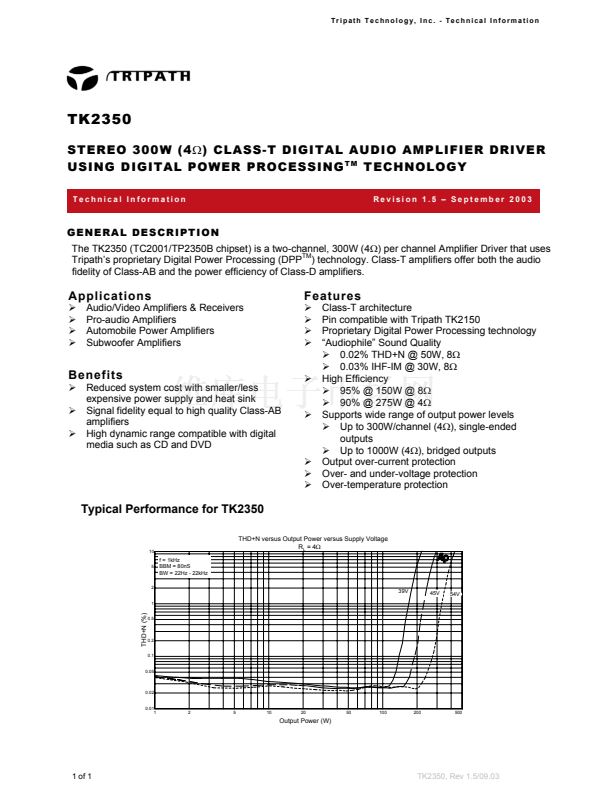

Tr i path Technol ogy, I nc. - Techni cal I nfor m ati on
TK2350
STEREO 300W (4鈩? CLASS-T DIGITAL AUDIO AMPLIFIER DRIVER
USING DIGITAL POWER PROCESSING
T M
TECHNOLOGY
Technical Information
Revision 1.5 鈥?September 2003
GENERAL DESCRIPTION
The TK2350 (TC2001/TP2350B chipset) is a two-channel, 300W (4鈩? per channel Amplifier Driver that uses
Tripath鈥檚 proprietary Digital Power Processing (DPP
TM
) technology. Class-T amplifiers offer both the audio
fidelity of Class-AB and the power efficiency of Class-D amplifiers.
Applications
Audio/Video Amplifiers & Receivers
Pro-audio Amplifiers
Automobile Power Amplifiers
Subwoofer Amplifiers
Features
Class-T architecture
Pin compatible with Tripath TK2150
Proprietary Digital Power Processing technology
鈥淎udiophile鈥?Sound Quality
0.02% THD+N @ 50W, 8鈩?/div>
0.03% IHF-IM @ 30W, 8鈩?/div>
High Efficiency
95% @ 150W @ 8鈩?/div>
90% @ 275W @ 4鈩?/div>
Supports wide range of output power levels
Up to 300W/channel (4鈩?, single-ended
outputs
Up to 1000W (4鈩?, bridged outputs
Output over-current protection
Over- and under-voltage protection
Over-temperature protection
Benefits
Reduced system cost with smaller/less
expensive power supply and heat sink
Signal fidelity equal to high quality Class-AB
amplifiers
High dynamic range compatible with digital
media such as CD and DVD

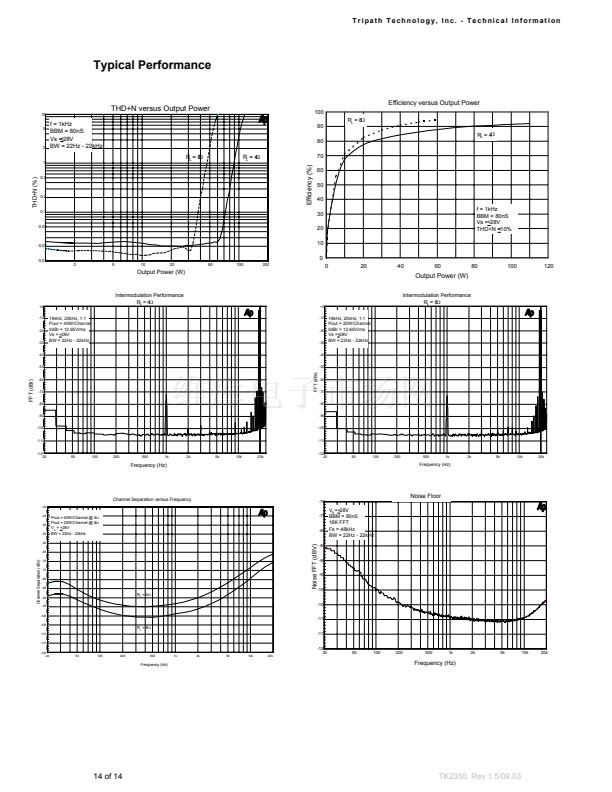

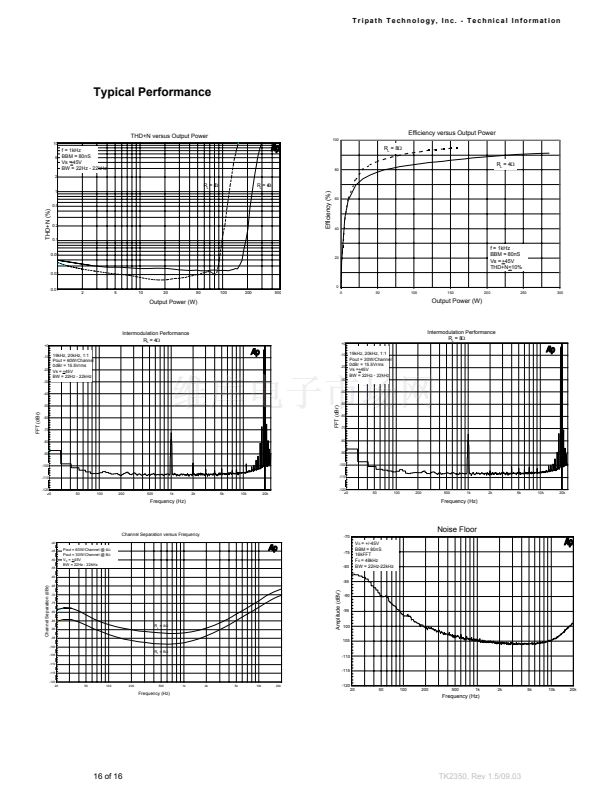

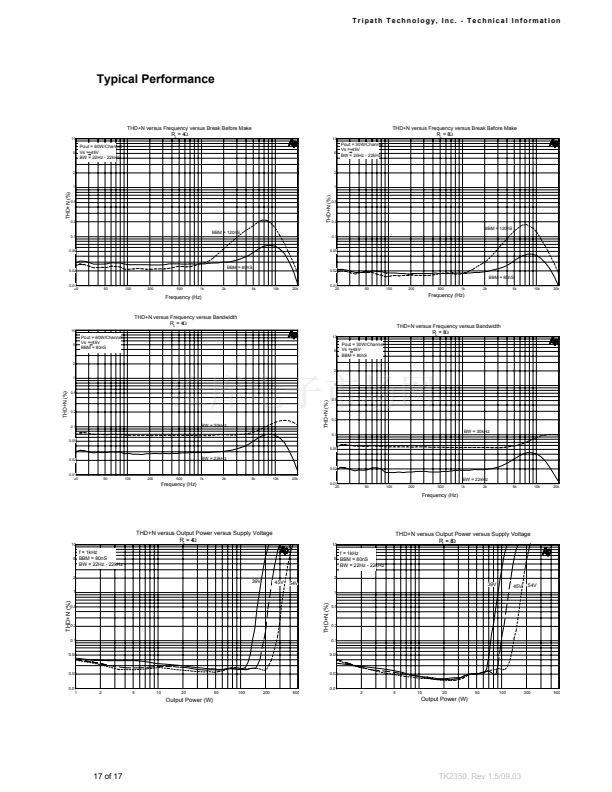

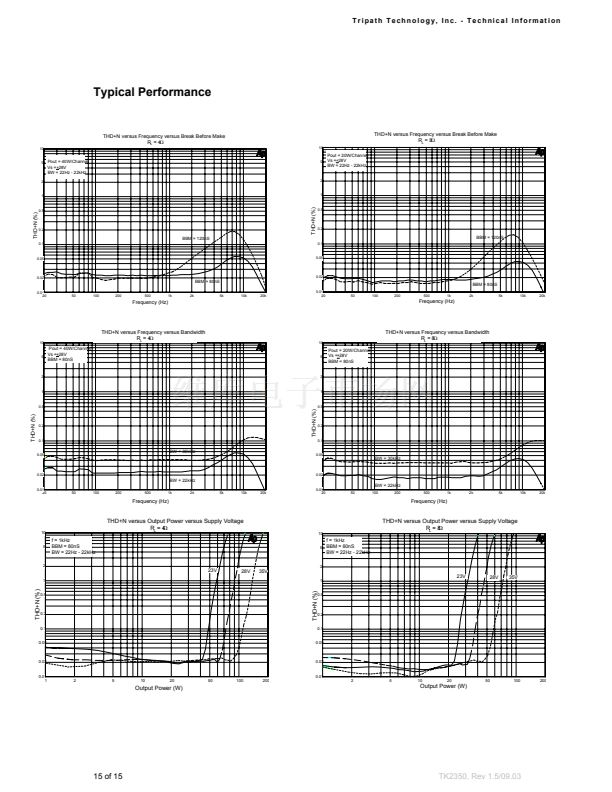

Typical Performance for TK2350
THD+N versus Output Power versus Supply Voltage
R
L
= 4鈩?/div>
f = 1kHz
BBM = 80nS
BW = 22Hz - 22kHz
39V
10
5
2
1
45V
54V
THD+N (%)
0.5
0.2
0.1
0.05
0.02
0.01
1
2
5
10
20
50
100
200
500
Output Power (W)
1 of 1
TK2350, Rev 1.5/09.03
