TK15415MTL/415 Datasheet

  • TK15415MTL/415

  • 75 OHM VIDEO LINE DRIVER

  • 72.58KB

  • 8頁

  • TOKO   TOKO

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

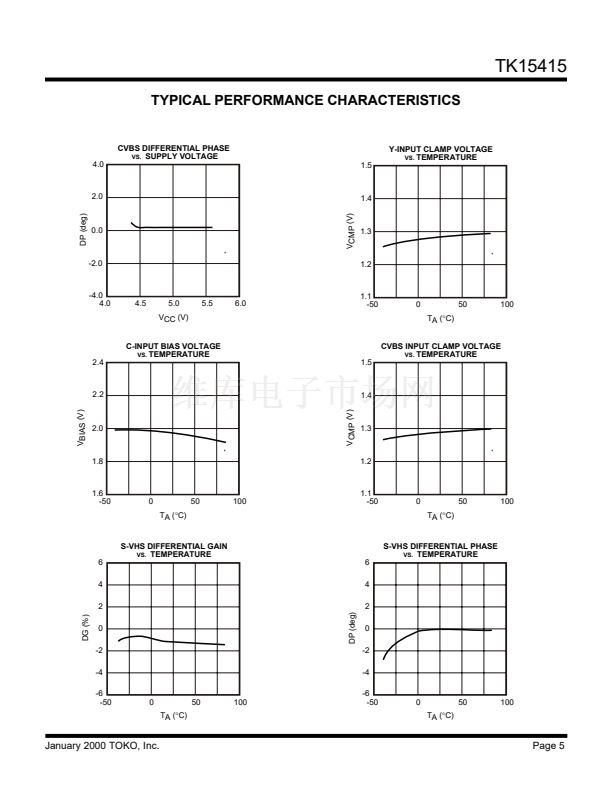

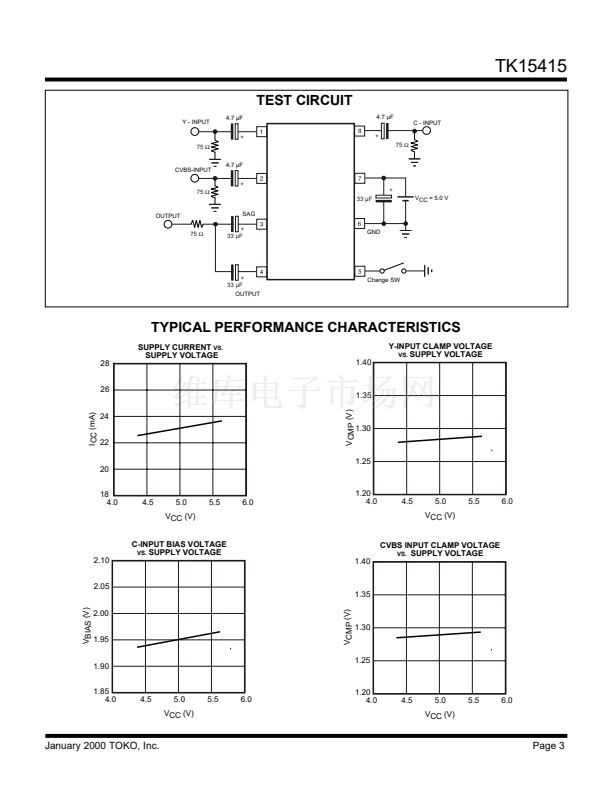

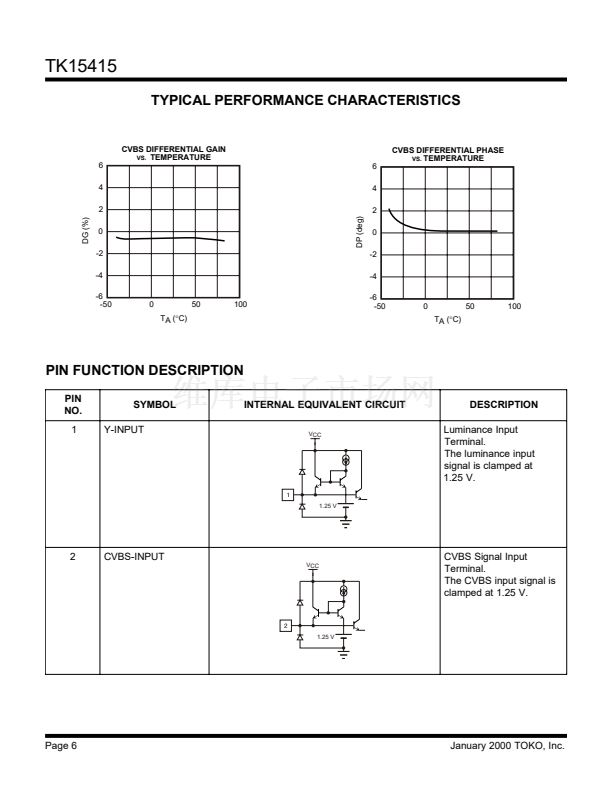

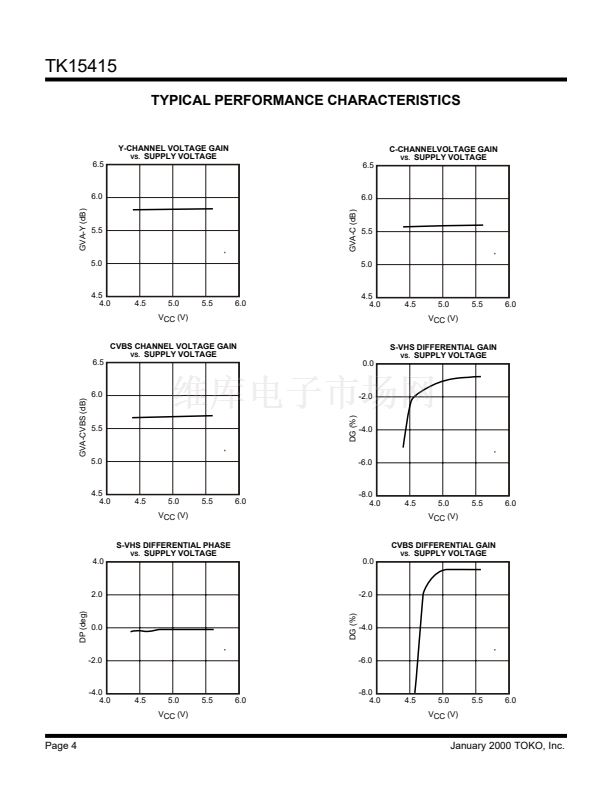

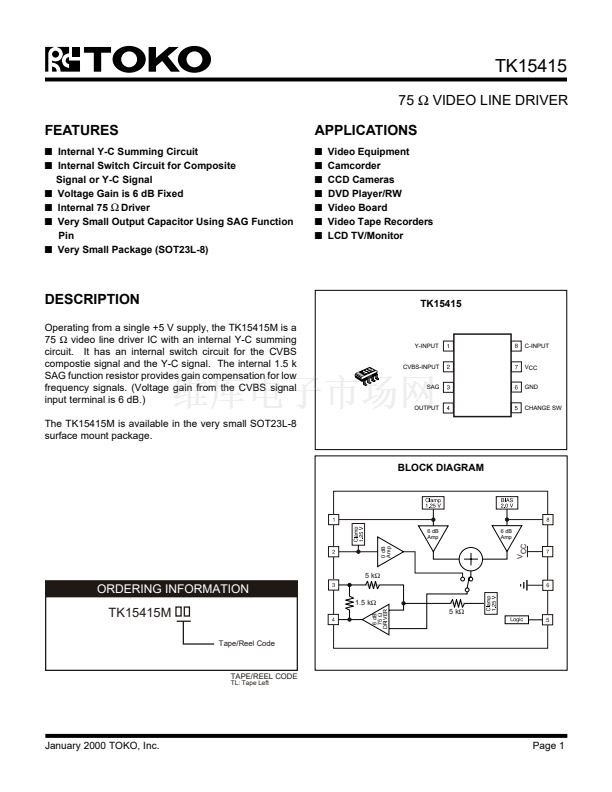

TK15415
75
鈩?/div>
VIDEO LINE DRIVER
FEATURES
s
Internal Y-C Summing Circuit
s
Internal Switch Circuit for Composite
Signal or Y-C Signal
s
Voltage Gain is 6 dB Fixed
s
Internal 75
鈩?/div>
Driver
s
Very Small Output Capacitor Using SAG Function
Pin
s
Very Small Package (SOT23L-8)
APPLICATIONS
s
s
s
s
s
s
s
Video Equipment
Camcorder
CCD Cameras
DVD Player/RW
Video Board
Video Tape Recorders
LCD TV/Monitor
DESCRIPTION
Operating from a single +5 V supply, the TK15415M is a
75
鈩?/div>
video line driver IC with an internal Y-C summing
circuit. It has an internal switch circuit for the CVBS
compostie signal and the Y-C signal. The internal 1.5 k
SAG function resistor provides gain compensation for low
frequency signals. (Voltage gain from the CVBS signal
input terminal is 6 dB.)

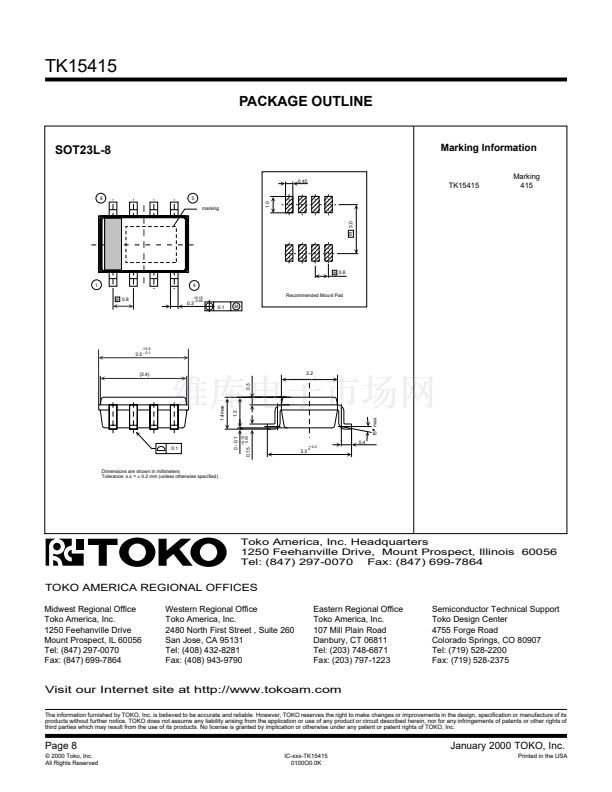

The TK15415M is available in the very small SOT23L-8
surface mount package.

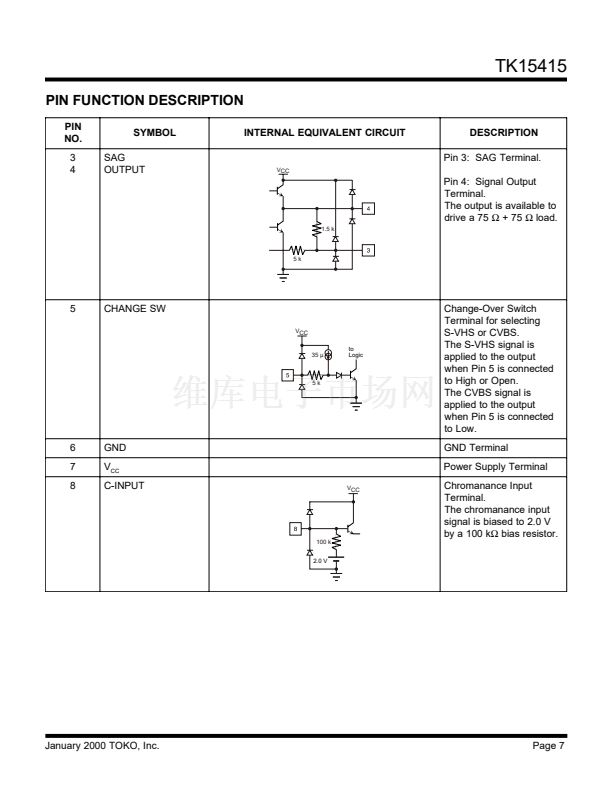

TK15415
Y-INPUT
C-INPUT
CVBS-INPUT
01S
VCC
GND
SAG
OUTPUT
CHANGE SW
BLOCK DIAGRAM
6 dB
Amp
0 dB
Amp
6 dB
Amp
5 k鈩?/div>
ORDERING INFORMATION
1.5 k鈩?/div>
6 dB
75
鈩?/div>
DRIVER
TK15415M
Tape/Reel Code
5 k鈩?/div>
TAPE/REEL CODE
TL: Tape Left
January 2000 TOKO, Inc.
VCC
Page 1
