TK15403MTL/403 Datasheet

  • TK15403MTL/403

  • 75 OHM VIDEO LINE DRIVER

  • 61.00KB

  • 8頁

  • TOKO   TOKO

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

TK15403
75
鈩?/div>
VIDEO LINE DRIVER
FEATURES
s
s
s
s
s
Internal 75
鈩?/div>
Drivers
20 MHz Gain Band Width
2 Channel High Speed Operational Amplifiers
Very Small SOT23L-8 Package
Single +5 V Power Supply Operation
APPLICATIONS
s
s
s
s
s
s
Video Equipment
Digital Cameras
CCD Cameras
TV Monitors
Video Tape Recorders
LCD Projectors
DESCRIPTION
Operating from a single +5 V supply, the TK15403M is a
dual video line driver IC that takes standard video signals
as analog inputs and provides buffered analog outputs for
driving 150
鈩?/div>
loads (series 75
鈩?/div>
resistor and 75
鈩?/div>
cable
load). The standard video input signals (1 V
P-P
) are
typically amplified 6 dB using external components to
produce a 2 V
P-P
signal into an AC-coupled 150
鈩?/div>
load.
Nominal power dissipation (no input) is typically 56 mW.
The TK15403M is available in the very small SOT23L-8
surface mount package.

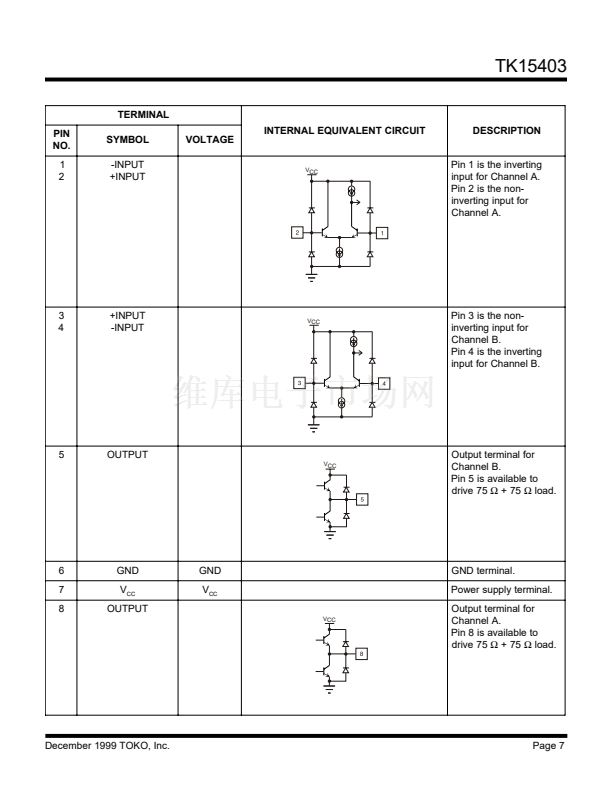

TK15403
-INA
OUTA
VCC
GND
+INA
01S
+INB
-INB
OUTB
BLOCK DIAGRAM
-
ORDERING INFORMATION
+
-
TK15403M
Tape/Reel Code
TAPE/REEL CODE
TL: Tape Left
December 1999 TOKO, Inc.
VCC
+
Page 1
