TIM226006P0X Datasheet

  • TIM226006P0X

  • Molded, Radial Lead, Solid Tantalum Capacitors

  • 4頁

  • CDE   CDE

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

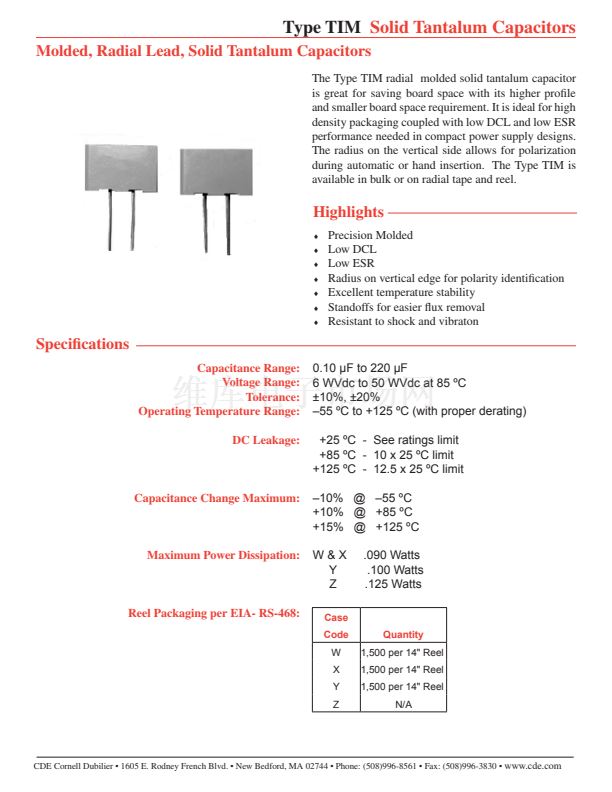

Type TIM
Solid Tantalum Capacitors
Molded, Radial Lead, Solid Tantalum Capacitors
The Type TIM radial molded solid tantalum capacitor
is great for saving board space with its higher pro鏗乴e
and smaller board space requirement. It is ideal for high
density packaging coupled with low DCL and low ESR
performance needed in compact power supply designs.
The radius on the vertical side allows for polarization
during automatic or hand insertion. The Type TIM is
available in bulk or on radial tape and reel.
Highlights
鈾?/div>
鈾?/div>
鈾?/div>
鈾?/div>
鈾?/div>
鈾?/div>
鈾?/div>
Precision Molded
Low DCL
Low ESR
Radius on vertical edge for polarity identi鏗乧ation
Excellent temperature stability
Standoffs for easier 鏗倁x removal
Resistant to shock and vibraton
Speci鏗乧ations
Capacitance Range:
Voltage Range:
Tolerance:
Operating Temperature Range:
DC Leakage:
0.10 碌F to 220 碌F
6 WVdc to 50 WVdc at 85 潞C
鹵10%, 鹵20%
鈥?5 潞C to +125 潞C (with proper derating)
+25 潞C - See ratings limit
+85 潞C - 10 x 25 潞C limit
+125 潞C - 12.5 x 25 潞C limit
鈥?0% @ 鈥?5 潞C
+10% @ +85 潞C
+15% @ +125 潞C
W&X
Y
Z
Case
Code
W
X
Y
Z
Quantity
1,500 per 14" Reel
1,500 per 14" Reel
1,500 per 14" Reel
N/A
Capacitance Change Maximum:
Maximum Power Dissipation:
.090 Watts
.100 Watts
.125 Watts
Reel Packaging per EIA- RS-468:
CDE Cornell Dubilier 鈥?1605 E. Rodney French Blvd. 鈥?New Bedford, MA 02744 鈥?Phone: (508)996-8561 鈥?Fax: (508)996-3830 鈥?/div>
www.cde.com
