TGA8035-SCC Datasheet

  • TGA8035-SCC

  • Gain Block Amplifier

  • 7頁

  • TRIQUINT

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

T
R
I
Q
U
I
N
T
S
E
M
I
C
O N
D
U
C
T O
R ,
I
N
C .
TGA8035-SCC
Gain Block Amplifier
q
q
q
q
q
q
PHOTO ENLARGEMENT
6 to 18- GHz Frequency
Range
13- dB Typical Gain
2.2:1 Typical Input/Output SWR
8035
12.5- dBm Typical Output Power at 1
-dB Gain Compression
5
-
dB Typical Noise Figure
2,4892 x 2,0574 x 0,1143 mm (0.098 x 0.081 x 0.0045 in.)
DESCRIPTION
The TriQuint TGA8035 - SCC is a two - stage GaAs monolithic amplifier designed for use as
a broadband general-purpose gain block. T wo 300 - 碌m gate - width FETs provide a 13- dB typical gain and
a 5- dB noise figure from 6 to 18- GHz. Typical output power at 1- dB gain compression is 12.5- dBm.
Shunt feedback is used around each active device to improve gain flatness and standing - wave ratio
(SWR). Ground is provided to the circuitry through vias to the backside metallization.
The TGA8035-SCC amplifier is suitable for a variety of broadband electronic warfare (EW) applications.
The combination of gain, power, and noise figure makes this device an exceptional post amplifier
following a low-noise amplifier.
Bond pad and backside metallization is gold plated for compatibility with eutectic alloy attachment
methods as well as thermocompression and thermosonic wire- bonding processes. The TGA8035 - SCC
is supplied in chip form and is readily assembled using automated equipment.
TriQuint Semiconductor, Inc.
鈥?/div>
Texas Facilities
鈥?(972) 995-8465
鈥?www.triquint.com

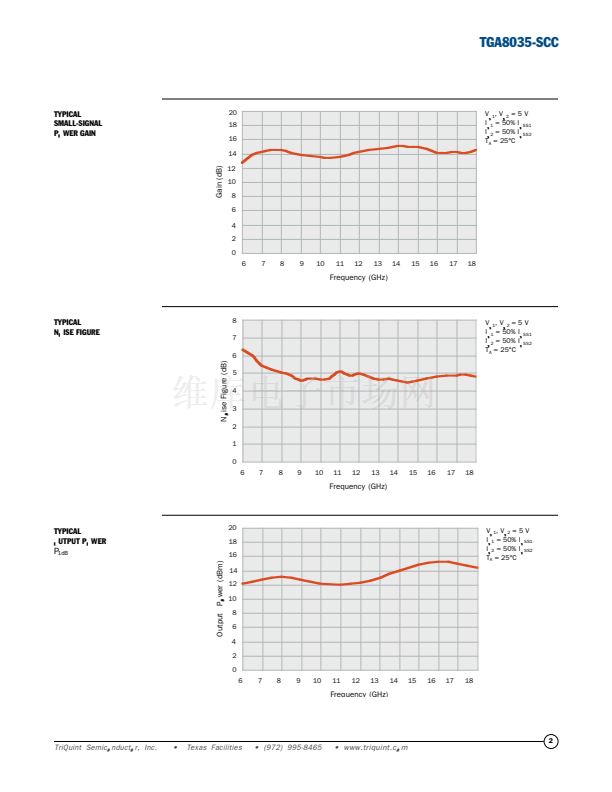

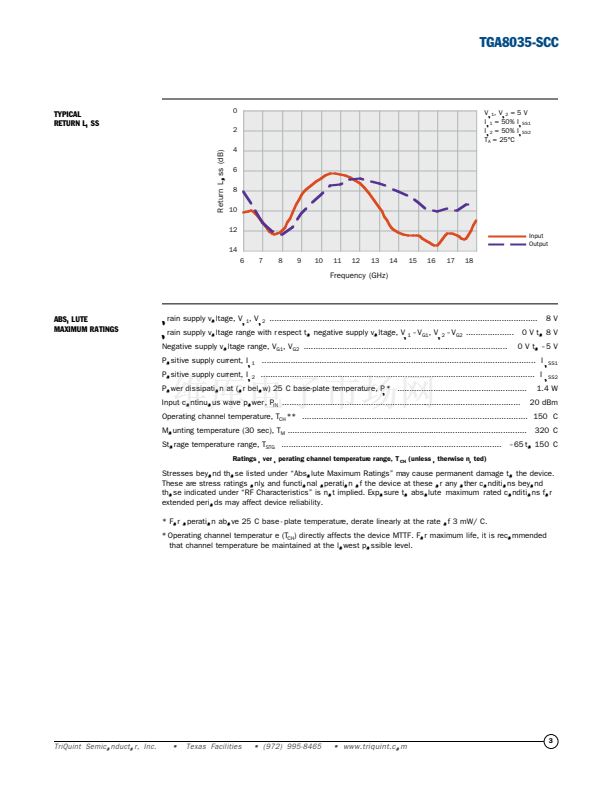

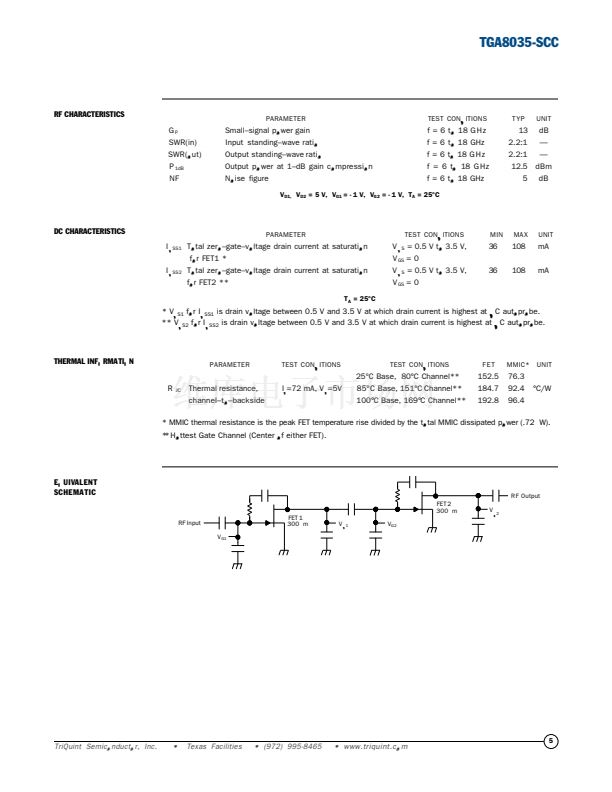

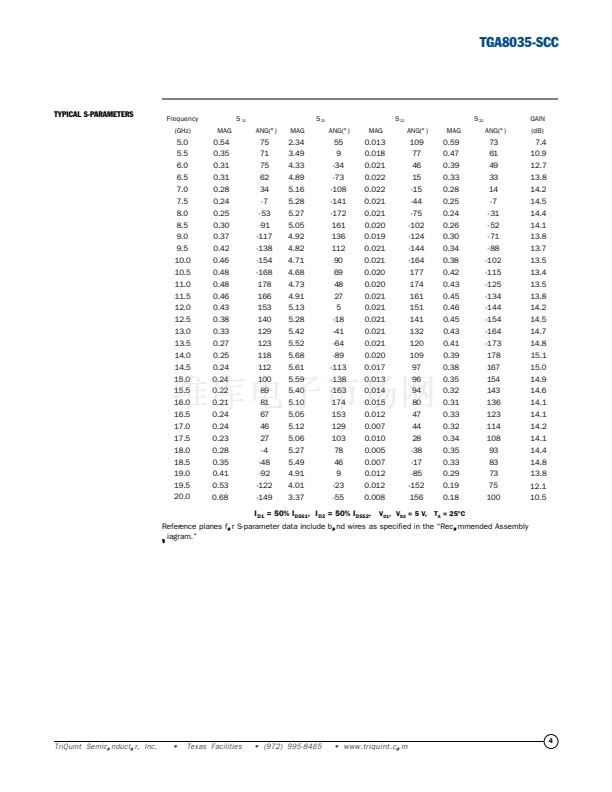

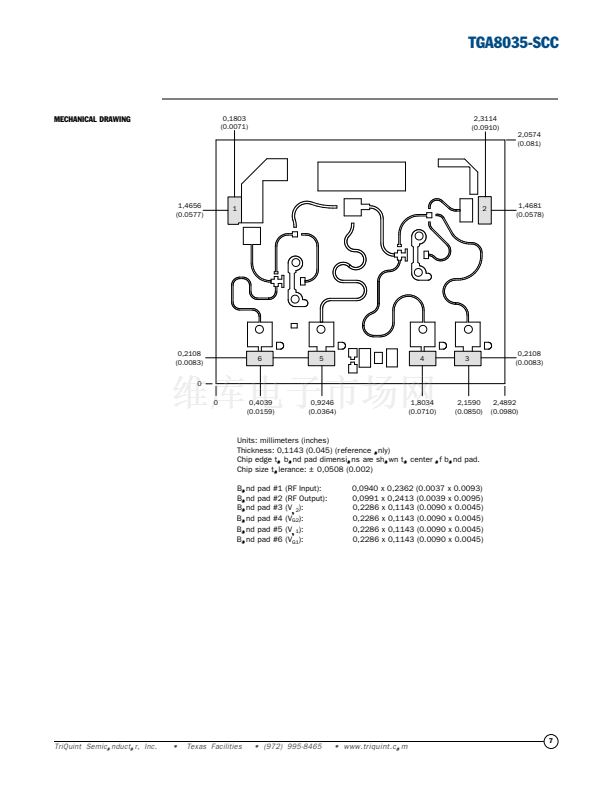

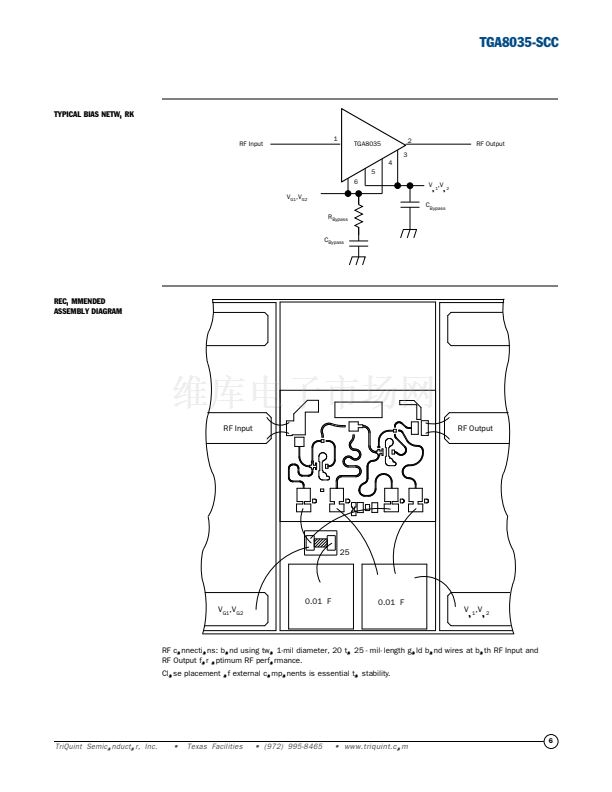

TGA8035-SCC 產品屬性

  • TriQuint

  • 射頻放大器

  • Gain Block Amplifier

  • 6 GHz to 18 GHz

  • 5 dB

  • 8 V

  • 2.49 mm x 2.06 mm

  • 25

  • 1004408
