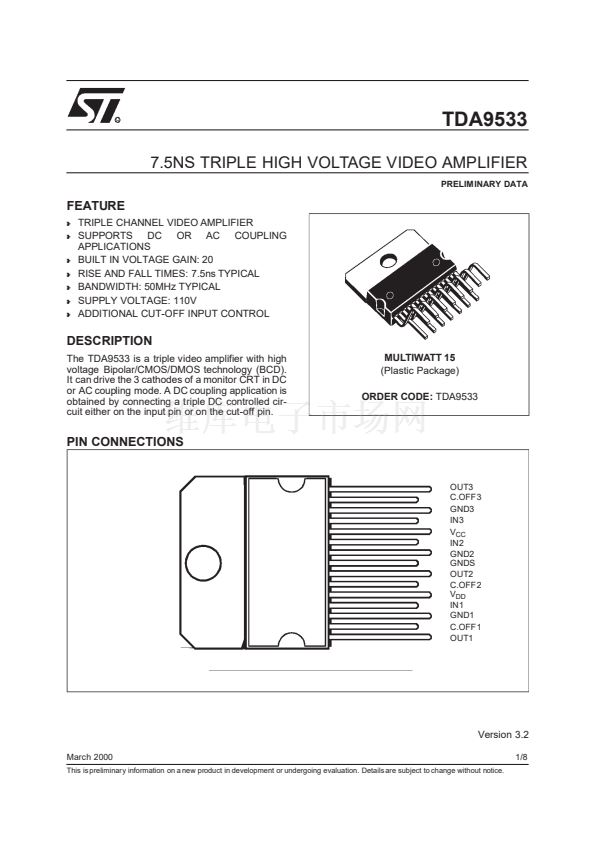

TDA9533

7.5NS TRIPLE HIGH VOLTAGE VIDEO AMPLIFIER

PRELIMINARY DATA

FEATURE

j

j

j

j

j

j

j

TRIPLE CHANNEL VIDEO AMPLIFIER

SUPPORTS DC OR AC COUPLING

APPLICATIONS

BUILT IN VOLTAGE GAIN: 20

RISE AND FALL TIMES: 7.5ns TYPICAL

BANDWIDTH: 50MHz TYPICAL

SUPPLY VOLTAGE: 110V

ADDITIONAL CUT-OFF INPUT CONTROL

DESCRIPTION

The TDA9533 is a triple video amplifier with high

voltage Bipolar/CMOS/DMOS technology (BCD).

It can drive the 3 cathodes of a monitor CRT in DC

or AC coupling mode. A DC coupling application is

obtained by connecting a triple DC controlled cir-

cuit either on the input pin or on the cut-off pin.

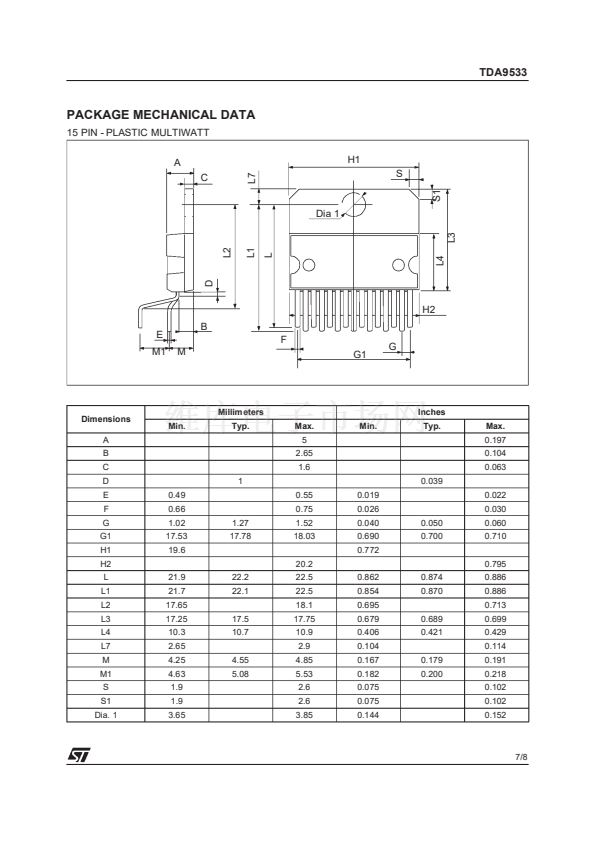

MULTIWATT 15

(Plastic Package)

ORDER CODE:

TDA9533

PIN CONNECTIONS

OUT3

C.OFF 3

GND3

IN3

V

CC

IN2

GND2

GNDS

OUT2

C.OFF 2

V

DD

IN1

GND1

C.OFF 1

OUT1

Version 3.2

March 2000

This is preliminary information on a new product in development or undergoing evaluation. Details are subject to change without notice.

1/8
