TDA9530 Datasheet

  • TDA9530

  • 9.5NS TRIPLE HIGH VOLTAGE VIDEO AMPLIFIER

  • 8頁

  • STMICROELECTRONICS   STMICROELECTRONICS

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

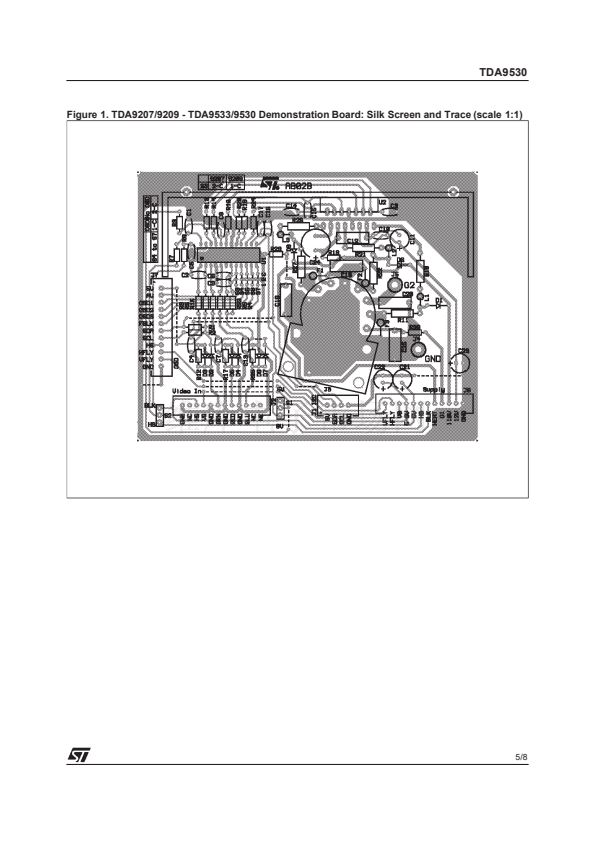

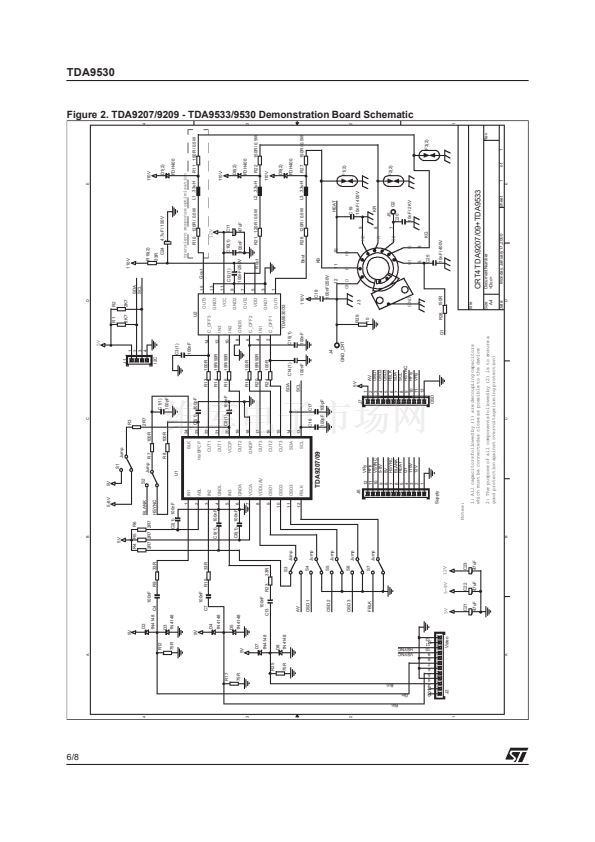

TDA9530
9.5NS TRIPLE HIGH VOLTAGE VIDEO AMPLIFIER
FEATURE
鈥?/div>
TRIPLE CHANNEL VIDEO AMPLIFIER
鈥?/div>
SUPPORTs DC OR AC COUPLING
APPLICATIONS
鈥?/div>

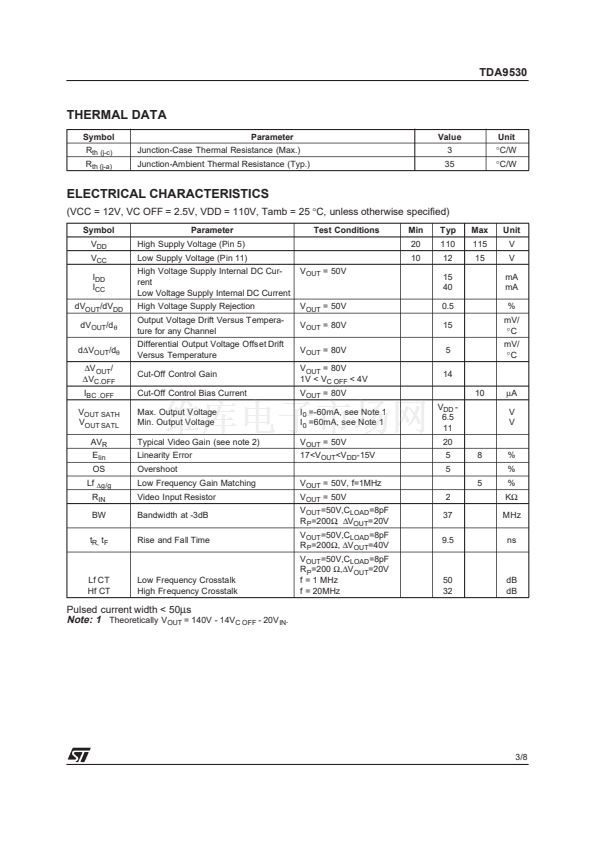

BUILT IN VOLTAGE GAIN: 20
鈥?/div>
RISE AND FALL TIMES: 9.5ns TYPICAL
鈥?/div>
BANDWIDTH: 37MHz TYPICAL
鈥?/div>
SUPPLY VOLTAGE: 110V
鈥?/div>
ADDITIONAL CUT-OFF INPUT CONTROL
DESCRIPTION

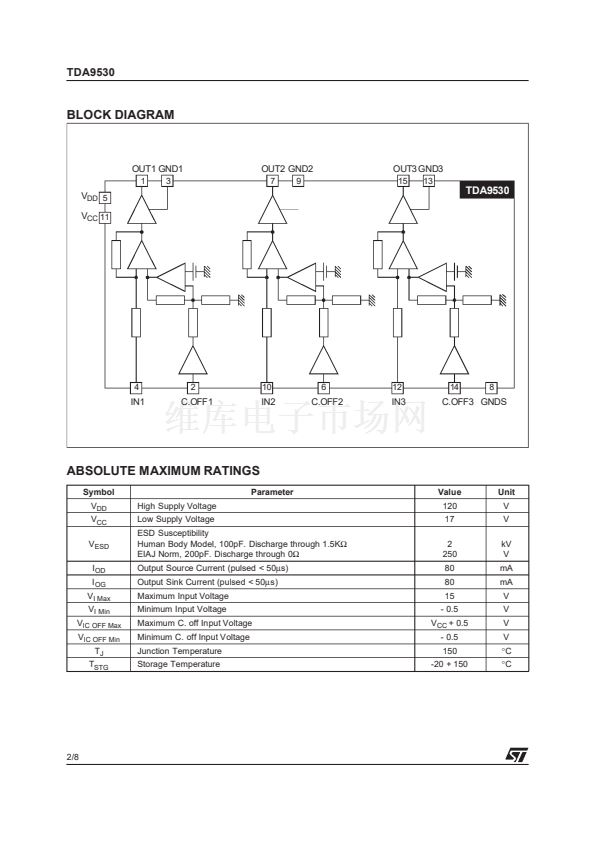

The TDA9530 is a triple video amplifier with high
voltage Bipolar/CMOS/DMOS technology (BCD).
It can drive the 3 cathodes of a monitor CRT in DC

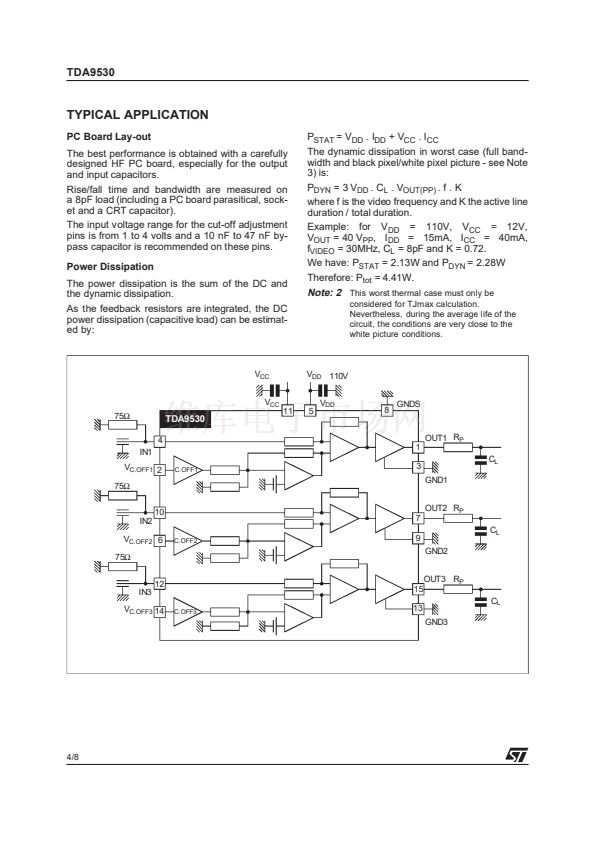

or AC coupling mode. A DC coupling application is
obtained by connecting a triple DC controlled cir-
cuit either on the input pin or on the cut-off pin.

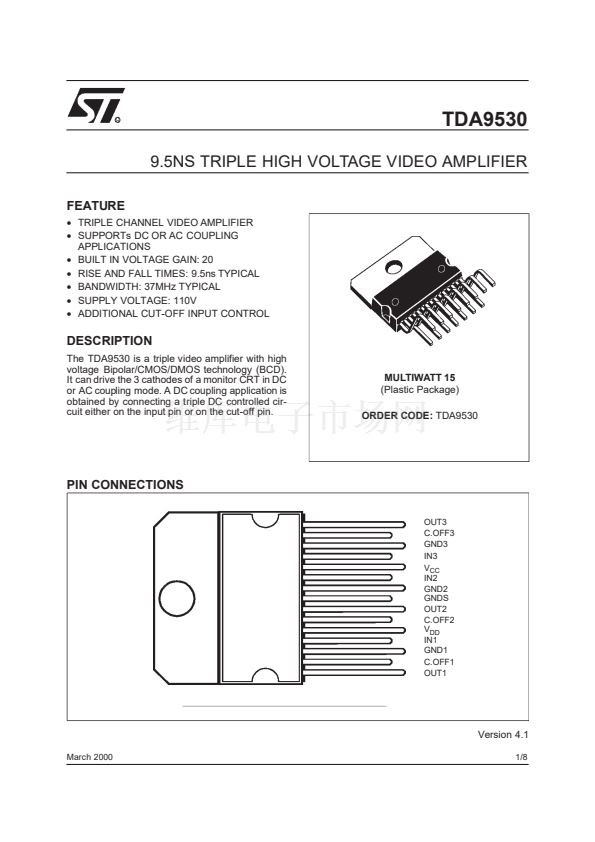

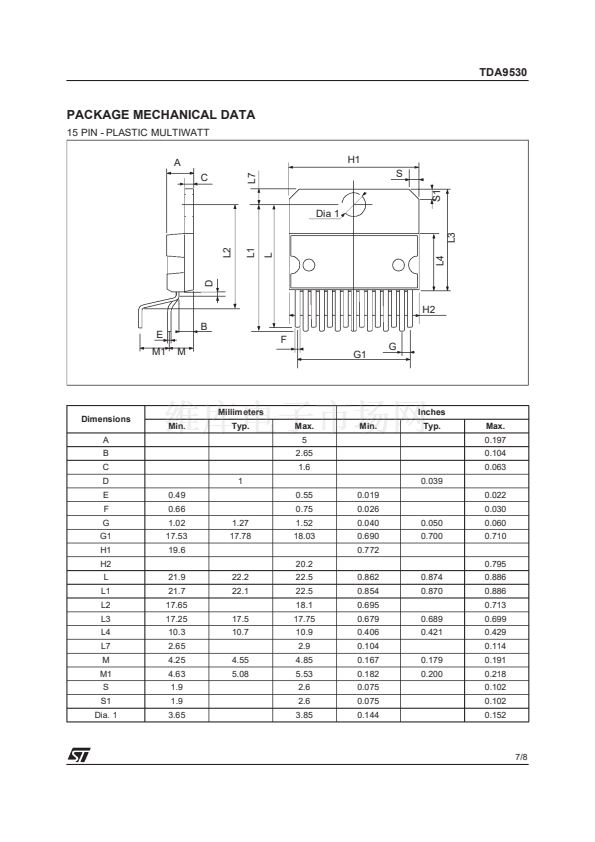

MULTIWATT 15
(Plastic Package)
ORDER CODE:
TDA9530
PIN CONNECTIONS
OUT3
C.OFF3
GND3
IN3
V
CC
IN2
GND2
GNDS
OUT2
C.OFF2
V
DD
IN1
GND1
C.OFF1
OUT1
Version 4.1
March 2000
1/8
1
