TDA9209 Datasheet

  • TDA9209

  • 150 MHz PIXEL VIDEO CONTROLLER FOR MONITORS INCLUDING CUT-OF...

  • 22頁

  • STMICROELECTRONICS   STMICROELECTRONICS

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

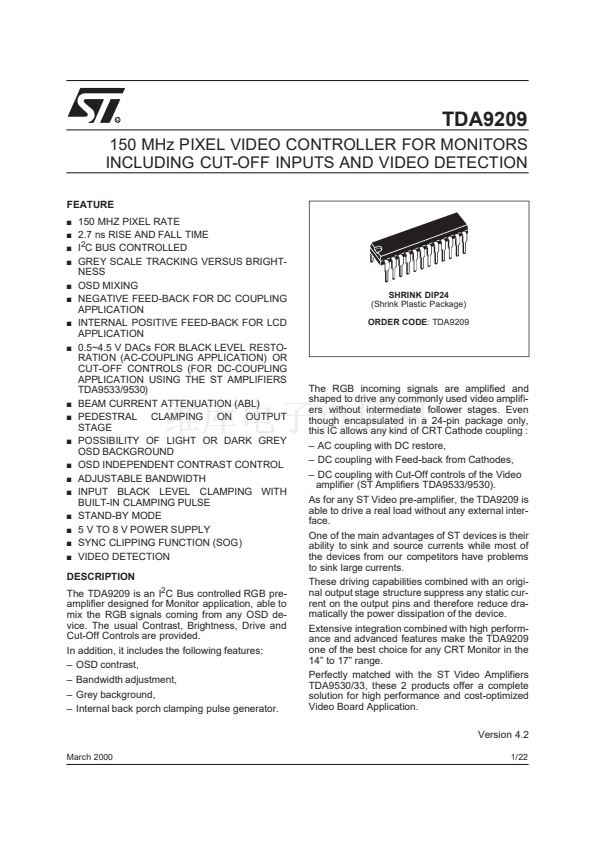

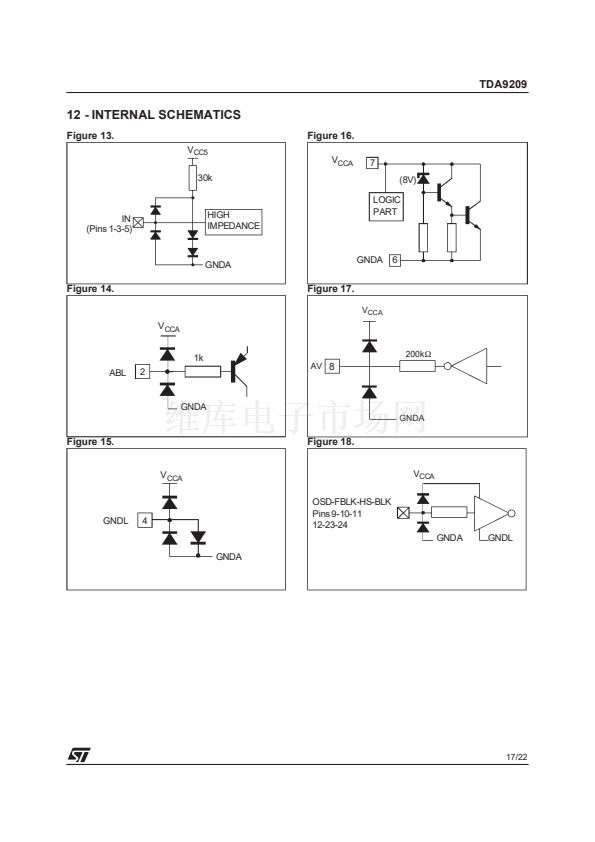

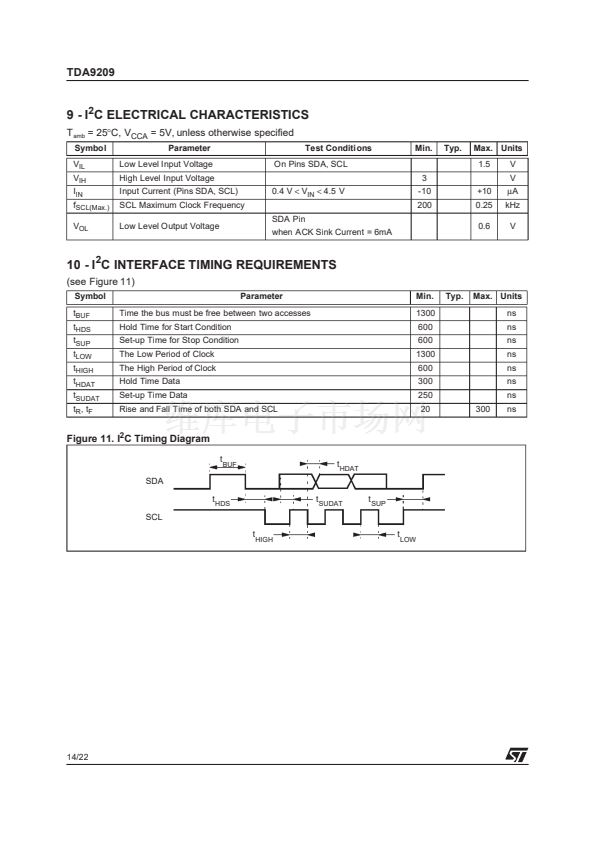

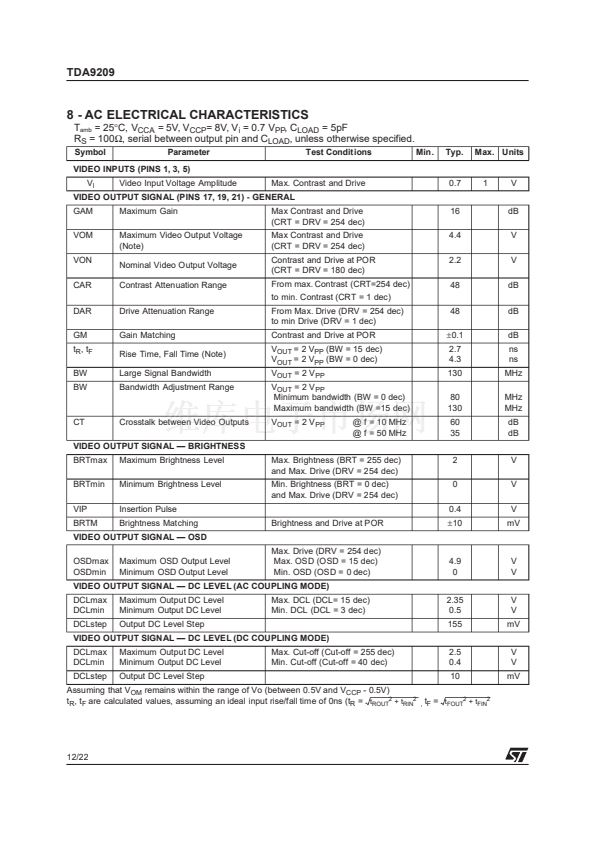

TDA9209
150 MHz PIXEL VIDEO CONTROLLER FOR MONITORS
INCLUDING CUT-OFF INPUTS AND VIDEO DETECTION
FEATURE
s
s
s
s
s
s
s
s
s
s
s
s
s
s
s
s
s
s
150 MHZ PIXEL RATE
2.7 ns RISE AND FALL TIME
I
2
C BUS CONTROLLED
GREY SCALE TRACKING VERSUS BRIGHT-
NESS

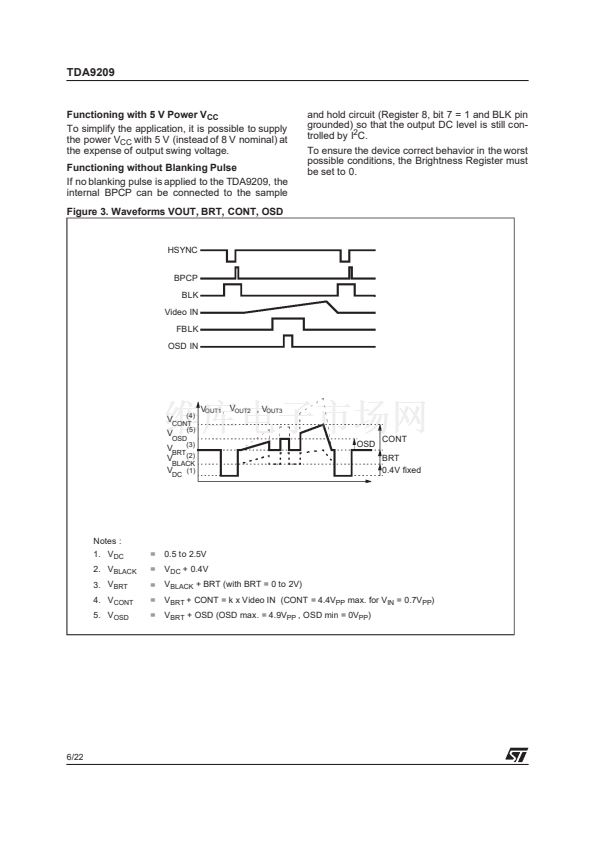

OSD MIXING
NEGATIVE FEED-BACK FOR DC COUPLING
APPLICATION
INTERNAL POSITIVE FEED-BACK FOR LCD
APPLICATION
0.5~4.5 V DACs FOR BLACK LEVEL RESTO-
RATION (AC-COUPLING APPLICATION) OR
CUT-OFF CONTROLS (FOR DC-COUPLING
APPLICATION USING THE ST AMPLIFIERS
TDA9533/9530)
BEAM CURRENT ATTENUATION (ABL)
PEDESTRAL CLAMPING ON OUTPUT
STAGE
POSSIBILITY OF LIGHT OR DARK GREY
OSD BACKGROUND
OSD INDEPENDENT CONTRAST CONTROL
ADJUSTABLE BANDWIDTH
INPUT BLACK LEVEL CLAMPING WITH
BUILT-IN CLAMPING PULSE
STAND-BY MODE

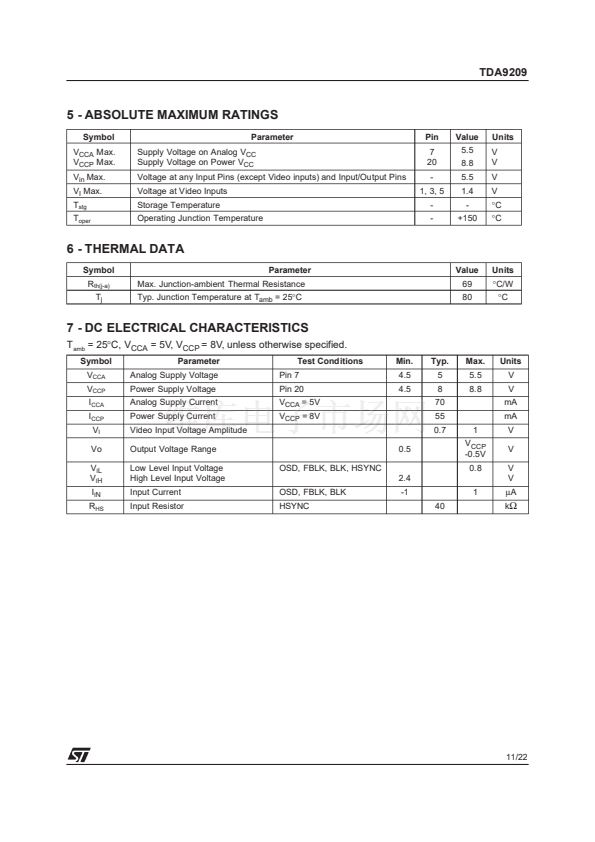

5 V TO 8 V POWER SUPPLY

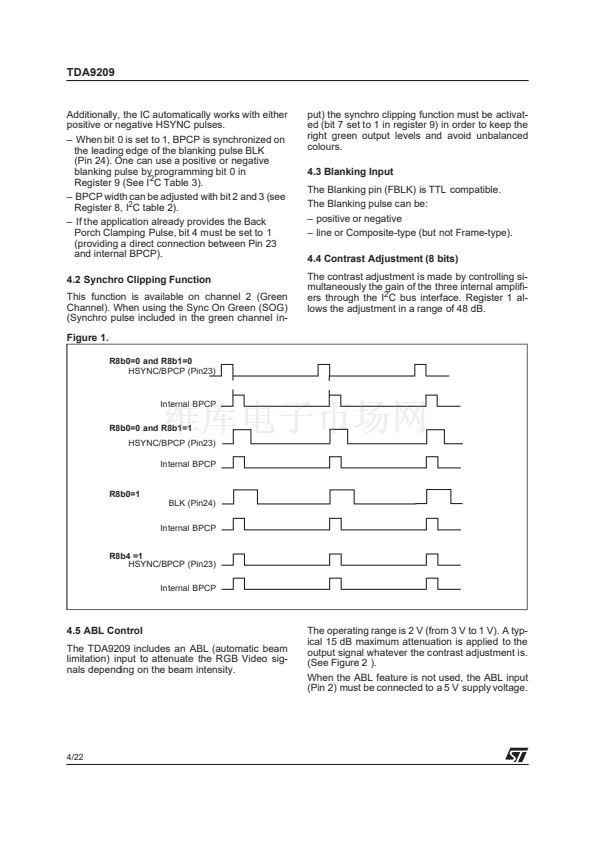

SYNC CLIPPING FUNCTION (SOG)

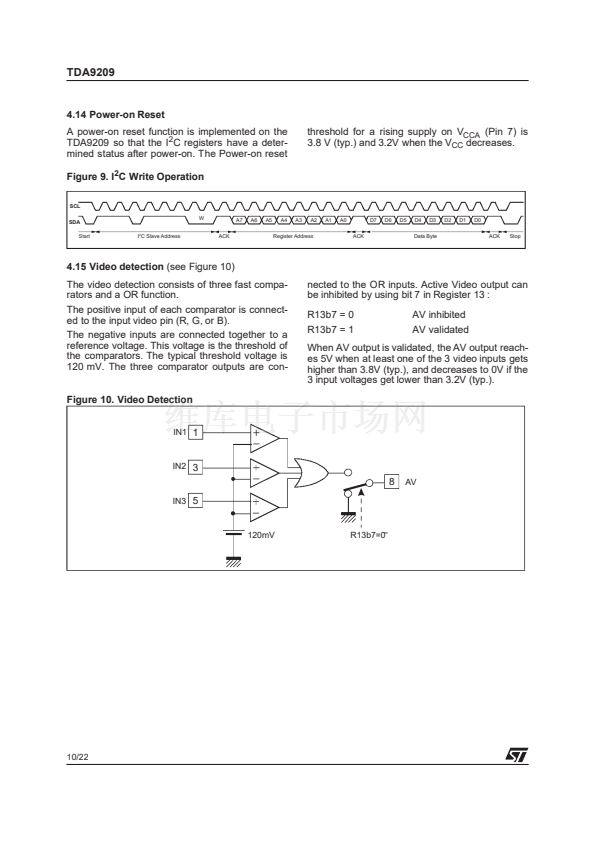

VIDEO DETECTION
SHRINK DIP24
(Shrink Plastic Package)
ORDER CODE:
TDA9209
DESCRIPTION
The TDA9209 is an I
2
C Bus controlled RGB pre-
amplifier designed for Monitor application, able to
mix the RGB signals coming from any OSD de-
vice. The usual Contrast, Brightness, Drive and
Cut-Off Controls are provided.
In addition, it includes the following features:
鈥?OSD contrast,
鈥?Bandwidth adjustment,
鈥?Grey background,
鈥?Internal back porch clamping pulse generator.
The RGB incoming signals are amplified and
shaped to drive any commonly used video amplifi-
ers without intermediate follower stages. Even
though encapsulated in a 24-pin package only,

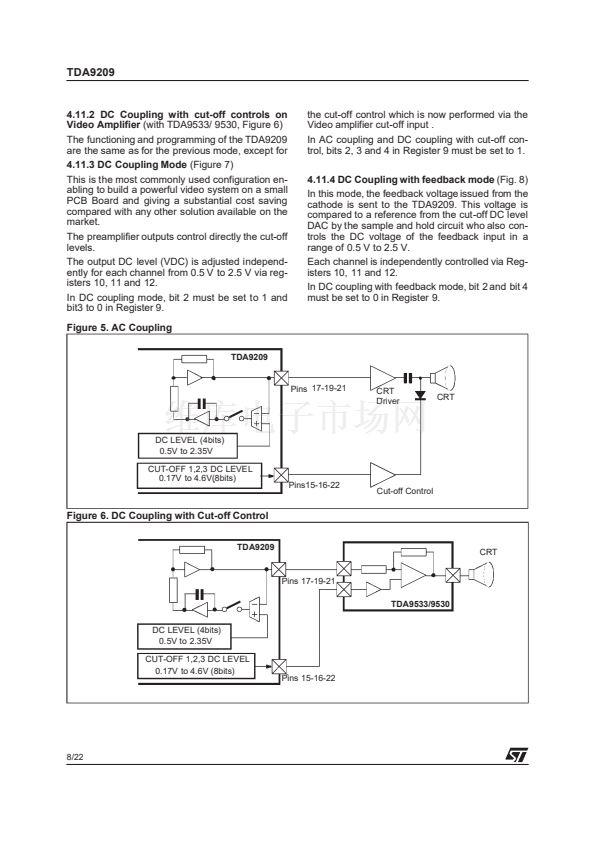

this IC allows any kind of CRT Cathode coupling :
鈥?AC coupling with DC restore,
鈥?DC coupling with Feed-back from Cathodes,
鈥?DC coupling with Cut-Off controls of the Video
amplifier (ST Amplifiers TDA9533/9530).
As for any ST Video pre-amplifier, the TDA9209 is
able to drive a real load without any external inter-
face.
One of the main advantages of ST devices is their
ability to sink and source currents while most of
the devices from our competitors have problems
to sink large currents.
These driving capabilities combined with an origi-
nal output stage structure suppress any static cur-
rent on the output pins and therefore reduce dra-
matically the power dissipation of the device.
Extensive integration combined with high perform-
ance and advanced features make the TDA9209
one of the best choice for any CRT Monitor in the
14鈥?to 17鈥?range.

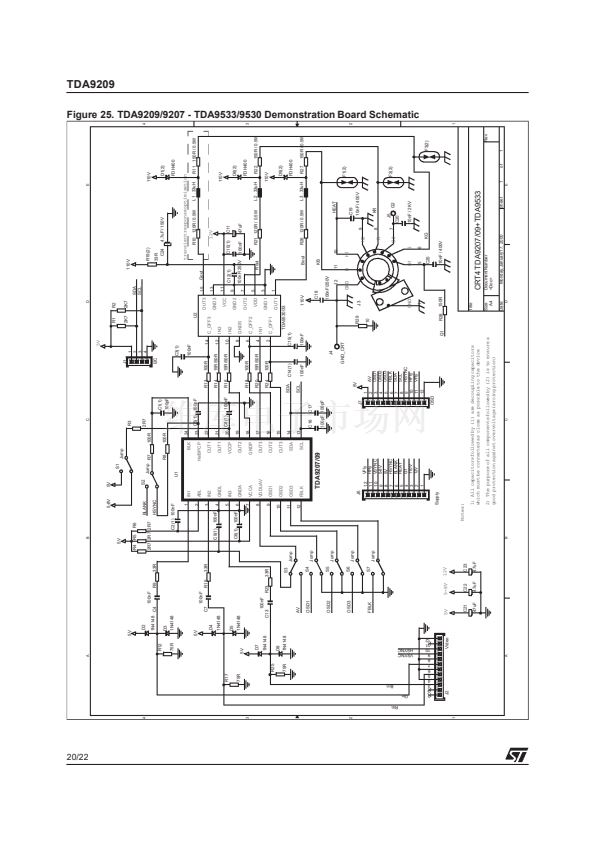

Perfectly matched with the ST Video Amplifiers
TDA9530/33, these 2 products offer a complete
solution for high performance and cost-optimized
Video Board Application.
Version 4.2
March 2000
1/22
1
