TDA9206

I

2

C BUS CONTROLLED 130MHz RGB PREAMPLIFIER

.

.

.

.

.

.

.

.

.

.

130MHz TYPICAL BANDWIDTH AT 2V

PP

OUTPUT WITH 12pF CAPACITIVE LOAD

2.8ns TYPICAL RISE/FALL TIME AT 2V

PP

OUTPUT WITH 12pF CAPACITIVE LOAD

POWERFULL OUTPUT DRIVE CAPABILITY

BRT, CONT, DRIVE, OUTPUT DC LEVEL,

OSD CONTRAST, BACK-PORCH CLAMPING

PULSE WIDTH ARE I

2

C BUS CONTROLLED

INTERNAL

BACK-PORCH

CLAMPING

PULSE GENERATOR

OSD WHITE BALANCE TRACKING

INTERNAL OSD SWITCHES

BLANKING AND FAST-BLANKING INPUTS

VERY LARGE DRIVE ADJUSTMENT RANGE

(48dB)

SEMI-TRANSPARENT BACKGROUND ON

OSD PICTURE

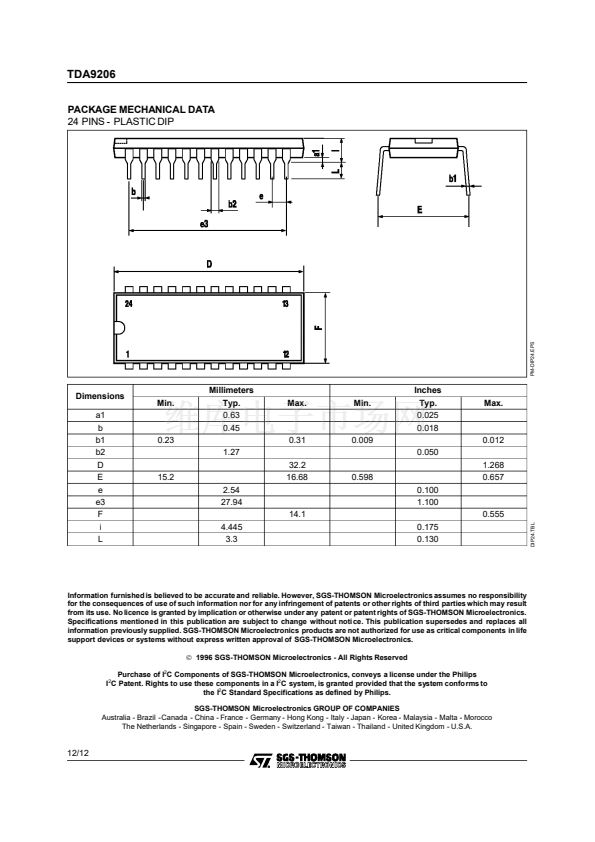

DIP24

(Plastic Package)

ORDER CODE :

TDA9206

PIN CONNECTIONS

IN1

OSD1

1

2

3

4

5

6

7

8

9

10

11

12

24

23

22

21

20

19

18

17

16

15

14

13

HSYNC

PV

CC1

OUT1

PGND1

PV

CC2

OUT2

PGND2

PV

CC3

OUT3

PGND3

BLK

FBLK

9206-01.EPS

DESCRIPTION

The TDA9206 is a digitaly controlled wideband

video preamplifier intended for use in high resolu-

tion color monitor. All controls and adjustments are

digitaly performed thanks to I

2

C serial bus. Con-

trast, brightness and DC output level of RGB sig-

nals are common to the 3 channels and drive

adjustment is separate for each channel. Three I

2

C

gain controlled OSD inputs can be switched with

RGB signals using fast blanking command. Clamp-

ing of RGB signals is performed thanks to a flexible

integrated system. The white balance adjustment

is effective on brightness, video and OSD signals.

The TDA9206works for application usingAC or DC

coupled CRT driver.

Because of its features and due to component

saving the TDA9206 leads to a very performantand

cost effective application.

September 1996

AV

DD

IN2

OSD2

AGND

IN3

OSD3

LV

DD

LGND

SDA

SCL

1/12
