TDA9103 Datasheet

  • TDA9103

  • DEFLECTION PROCESSOR FOR MULTISYNC MONITOR

  • 27頁

  • STMICROELECTRONICS   STMICROELECTRONICS

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

TDA9103
DEFLECTION PROCESSOR FOR MULTISYNC MONITOR
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
HORIZONTAL
DUAL PLL CONCEPT
150kHz MAXIMUM FREQUENCY
SELF-ADAPTIVE (EX : 30 TO 85kHz)
X-RAY PROTECTION INPUT
DC ADJUSTABLE DUTY-CYCLE
INTERNAL 1st PLL LOCK/UNLOCK IDENTIFICA-
TION
4 OUTPUTS FOR S-CORRECTION
WIDE RANGE DC CONTROLLED H-POSITION
T his IC, combined with TDA9205 (RG B preamp),
STV9420/21 or 22 (O.S.D. processor), ST7271 (micro
controller) and TDA8172 (vertical booster), allows to real-
ize very simple and high quality multimodes or multisync
monitors.
ON/OFF SWITCH (FOR PWR MANAGEMENT)
TWO H-DRIVE POLARITIES
VERTICAL
VERTICAL RAMP GENERATOR
50 TO 150Hz AGC LOOP
DC CONTROLLED V-AMP, V-POS, S-AMP AND S-
CENTERING
ON/OFF SWITCH
SHRINK42
(Plastic Package)
ORDER CODE :
TDA9103
B+ REGULATOR
INTERNAL PWM GENERATOR FOR B+ CURRENT
MODE STEP-UP CONVERTER
DC ADJUSTABLE B+ VOLTAGE
OUTPUT PULSES SYNCHRONISED ON HORIZON-
TAL FREQUENCY

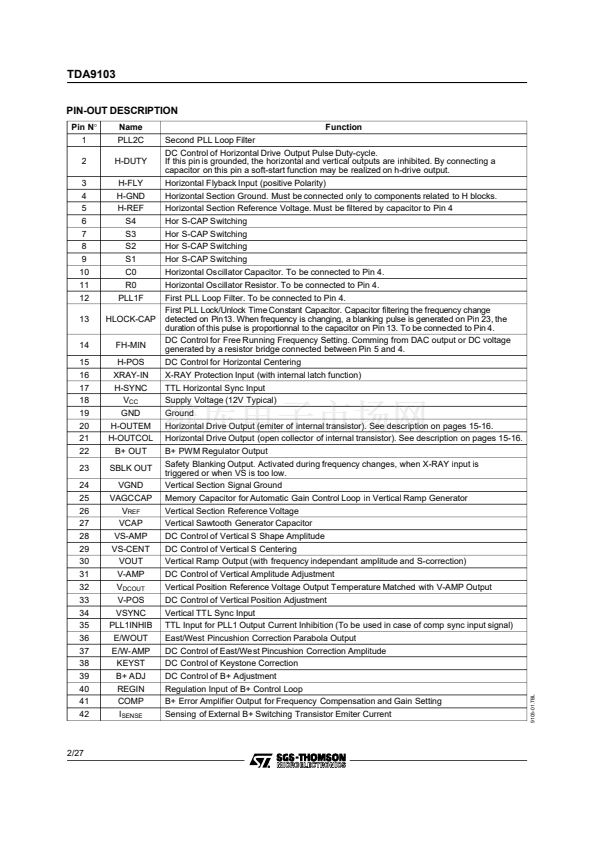

PIN CONNECTIONS
PLL2C
H-DUTY
HFLY
HGND
HREF
S4
S3
S2
S1
C0
R0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
I
SENSE
COMP
REGIN
B+-ADJ
KEYST
E/W-AMP
E/WOUT
PLL1INHIB
VSYNC
V-POS
V
DCOUT
V-AMP
VOUT
VS-CENT
VS-AMP
VCAP
V
REF
VAGCCAP
VGND
SBLKOUT
B+OUT
9103-01.AI
INTERNAL MAXIMUM CURRENT LIMITATION
VERTICAL PARABOLA GENERATOR WITH DC
CONTROLLED KEYSTONE AND AMPLITUDE
EWPCC
GENERAL
ACCEPT POS. OR NEG. H AND V SYNC POLARI-
TIES
SEPARATED H AND V TTL INPUT
SAFETY BLANKING OUTPUT
DESCRIPTION
The TDA9103 is a monolithic integrated circuit assembled
in a 42 pins shrunk dual in line plastic package.
This IC controls all the functions related to the horizontal
and vertical deflection in multimodes or multisync monitors.

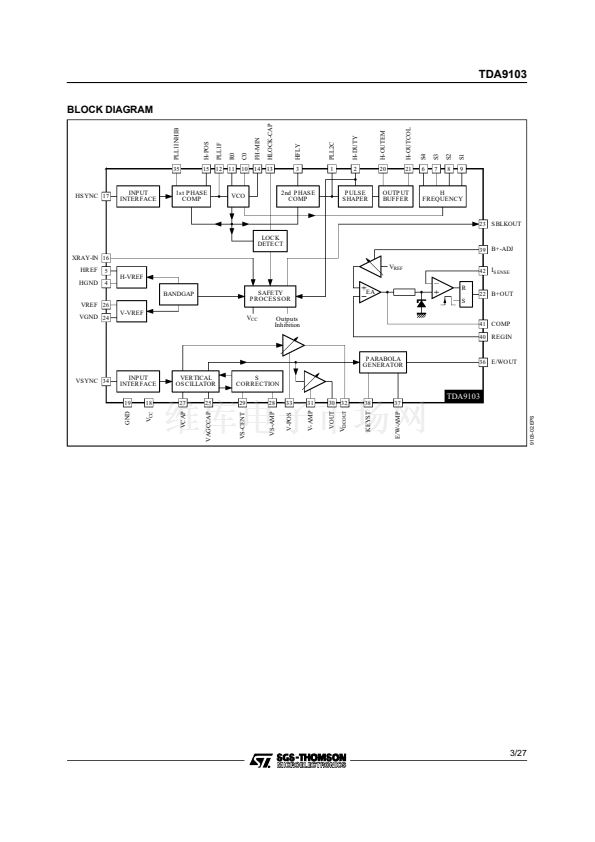

As can be seen in the block diagram, the TDA9103 includes
the following functions :
-
Positive or Negative sync polarities,
-
Auto-sync horizontal processing,
-
H-PLL lock/unlock identification,
-
Auto-sync Vertical processing,
-
East/West signal processing block,
-
B+ controller,
-
Safety blanking output.
May 1996
PLL1F
HLOCK-CAP
FH-MIN
H-POS
XRAY-IN
HSYNC
V
CC
GND
H-OUTEM
H-OUTCOL
1/27
