TDA8190 Datasheet

  • TDA8190

  • TV SOUND CHANNEL WITH DC CONTROLS

  • 11頁

  • STMICROELECTRONICS   STMICROELECTRONICS

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

TDA8190
TV SOUND CHANNEL WITH DC CONTROLS
.
.
.
.
.
.
.
.
SEPARATE VCR INPUT AND OUTPUT PINS
4W OUTPUT POWER INTO 16鈩?/div>
NO SCREENING REQUIRED
HIGH SENSITIVITY
EXCELLENT AM REJECTION
LOW DISTORTION
DC TONE/VOLUME CONTROLS
THERMAL PROTECTION
DESCRIPTION

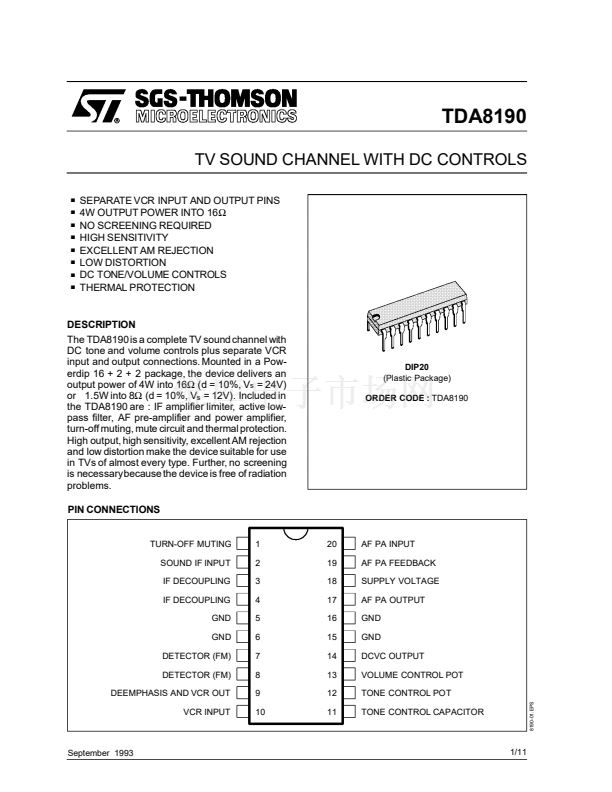

The TDA8190 is a complete TV sound channel with
DC tone and volume controls plus separate VCR
input and output connections. Mounted in a Pow-
erdip 16 + 2 + 2 package, the device delivers an
output power of 4W into 16鈩?(d = 10%, V
s
= 24V)
or 1.5W into 8鈩?(d = 10%, V
s
= 12V). Included in
the TDA8190 are : IF amplifier limiter, active low-
pass filter, AF pre-amplifier and power amplifier,
turn-off muting, mute circuit and thermal protection.
High output, high sensitivity, excellent AM rejection
and low distortion make the device suitable for use
in TVs of almost every type. Further, no screening
is necessarybecause the device is free of radiation
problems.
PIN CONNECTIONS
DIP20
(Plastic Package)
ORDER CODE :
TDA8190
TURN-OFF MUTING
SOUND IF INPUT
IF DECOUPLING
IF DECOUPLING
GND
GND
DETECTOR (FM)
DETECTOR (FM)
DEEMPHASIS AND VCR OUT
VCR INPUT
1
2
3
4
5
6
7
8
9
10
20
19
18
17
16
15
14
13
12
11
AF PA INPUT
AF PA FEEDBACK
SUPPLY VOLTAGE
AF PA OUTPUT
GND
GND
DCVC OUTPUT
VOLUME CONTROL POT
TONE CONTROL POT
TONE CONTROL CAPACITOR
8190-01.EPS
September 1993
1/11
