TDA8177

VERTICAL DEFLECTION BOOSTER

.

.

.

.

.

.

POWER AMPLIFIER

FLYBACK GENERATOR

THERMAL PROTECTION

OUTPUT CURRENT UP TO 3.0A

PP

FLYBACK VOLTAGE UP TO 70V (on Pin 5)

SUITABLE FOR DC COUPLING APPLICATION

DESCRIPTION

Designed for monitors and high performance TVs,

the TDA8177 vertical deflection booster delivers

flyback voltages up to 70V.

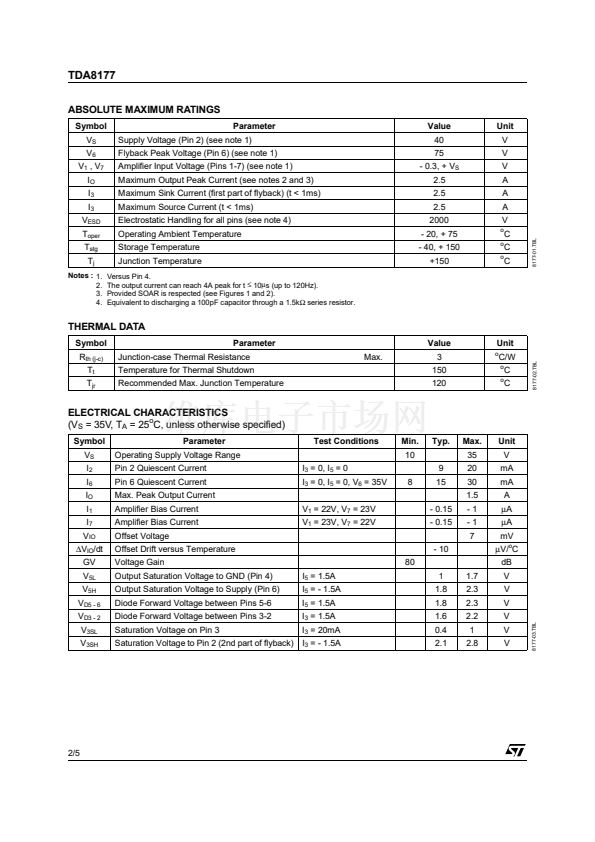

The TDA8177 operates with supplies up to 35V and

provides up to 3A

PP

output current to drive the yoke.

The TDA8177 is offered in HEPTAWATT package.

PIN CONNECTIONS

7

6

5

4

3

2

1

Tab connected to Pin 4

NON-INVERTING INPUT

OUTPUT STAGE SUPPLY

OUTPUT

GROUND

FLYBACK GENERATOR

SUPPLY VOLTAGE

INVERTING INPUT

HEPTAWATT

(Plastic Package)

ORDER CODE :

TDA8177

BLOCK DIAGRAM

SUPPLY

VOLTAGE

2

OUTPUT

STAGE

SUPPLY

6

FLYBACK

GENERATOR

3

FLYBACK

GENERATOR

INVERTING INPUT

1

POWER

AMPLIFIER

NON-INVERTING INPUT

7

THERMAL

PROTECTION

4

GROUND

8177-02.EPS

5

OUTPUT

TDA8177

December 1998

1/5

8177-01.EPS
