TDA7564 Datasheet

  • TDA7564

  • MULTIFUNCTION QUAD POWER AMPLIFIER WITH BUILT-IN DIAGNOSTICS...

  • 20頁

  • STMICROELECTRONICS   STMICROELECTRONICS

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

TDA7564
MULTIFUNCTION QUAD POWER AMPLIFIER
WITH BUILT-IN DIAGNOSTICS FEATURES
s
s
s
s
s
DMOS POWER OUTPUT
NON-SWITCHING HI-EFFICIENCY
HIGH OUTPUT POWER CAPABILITY 4x28W/4鈩?/div>
@ 14.4V, 1KHZ, 10% THD, 4x40W EIAJ
MAX. OUTPUT POWER 4x72W/2鈩?/div>
FULL I
2
C BUS DRIVING:
鈥?ST-BY
鈥?INDEPENDENT FRONT/REAR SOFT PLAY/
MUTE
鈥?SELECTABLE GAIN 26dB - 12dB (FOR
LOW NOISE LINE OUTPUT FUNCTION)
鈥?HIGH EFFICIENCY ENABLE/DISABLE
鈥?I
2
C BUS DIGITAL DIAGNOSTICS
FULL FAULT PROTECTION
DC OFFSET DETECTION
FOUR INDEPENDENT SHORT CIRCUIT
PROTECTION
CLIPPING DETECTOR (2% - 10%)
PROTECTION
MULTIPOWER BCD TECHNOLOGY
MOSFET OUTPUT POWER STAGE
FLEXIWATT25
ORDERING NUMBER: TDA7564
s
s
s
s
DESCRIPTION
The TDA7564 is a new BCD technology QUAD
BRIDGE type of car radio amplifier in Flexiwatt25
package specially intended for car radio applica-
BLOCK DIAGRAM
CLK
DATA
tions. Thanks to the DMOS output stage the
TDA7564 has a very low distortion allowing a clear
powerful sound. Among the features, its superior
efficiency performance coming from the internal
exclusive structure, makes it the most suitable de-
vice to simplify the thermal management in high
power sets.The dissipated output power under av-
erage listening condition is in fact reduced up to
50% when compared to the level provided by con-
ventional class AB solutions.This device is
equipped with a full diagnostics array that commu-
nicates the status of each speaker through the I
2
C
bus.The possibility to control the configuration and
behaviour of the device by means of the I
2
C bus
makes TDA7564 a very flexible machine.
VCC1 VCC2
CD_OUT
REFERENCE
CLIP
DETECTOR
THERMAL
PROTECTION
& DUMP
I2CBUS
MUTE1
MUTE2
IN RF
OUT RF+
12/26dB
SHORT CIRCUIT
PROTECTION &
DIAGNOSTIC
IN RR
OUT RF-
OUT RR+
12/26dB
SHORT CIRCUIT
PROTECTION &
DIAGNOSTIC
IN LF
OUT RR-
OUT LF+
12/26dB
SHORT CIRCUIT
PROTECTION &
DIAGNOSTIC
IN LR
OUT LF-
OUT LR+
12/26dB
SHORT CIRCUIT
PROTECTION &
DIAGNOSTIC
OUT LR-
SVR
AC_GND
TAB
S_GND
RF
RR
LF
PW_GND
LR
D00AU1211
September 2003
1/20

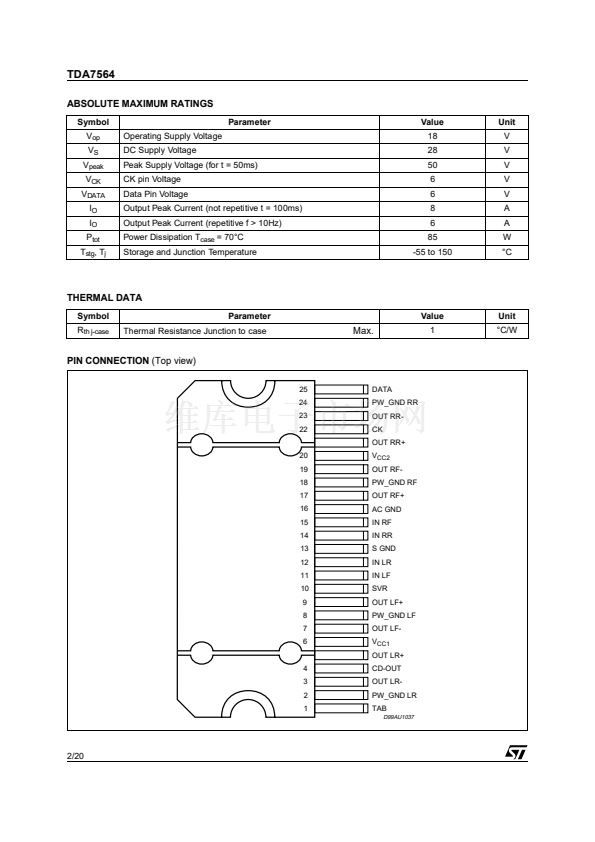

TDA7564 產品屬性

  • 17

  • 集成電路 (IC)

  • 線性 - 音頻放大器

  • -

  • AB 類

  • 4-通道（四路）

  • 72W x 4 @ 2 歐姆

  • 8 V ~ 18 V

  • I²C，靜音，短路和熱保護，待機

  • 通孔

  • 25-Flexiwatt

  • 25-Flexiwatt（彎曲和交錯引線）

  • 管件
