TDA7501 Datasheet

  • TDA7501

  • LINE-DRIVER FOR DIGITAL CARRADIO SIGNAL PROCESSOR

  • 18頁

  • STMICROELECTRONICS   STMICROELECTRONICS

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

廬
TDA7501
LINE-DRIVER FOR DIGITAL CARRADIO
SIGNAL PROCESSOR
PRODUCT PREVIEW
INPUTS:
- QUASI DIFFERENTIAL STEREO INPUT
FOR CD
- DIFFERENTIAL STEREO INPUTS FOR
PHONE, NAVIGATION, FM, AM
- SINGLE-ENDED INPUT FOR CASSETTE
- FOUR INDEPENDENT INPUT MULTIPLEXER
AND GAIN STAGES
- ENVELOPE-DETECTOR FOR
AM-NOISEBLANKING
- MIXING OF PHONE AND NAVIGATION
- DC-CONNECTION TO DSP
- DUAL MPX INPUTS
OUTPUTS:
- 6 OUTPUT CHANNELS WITH INDEPENDENT
VOLUME CONTROL
- 4 MAIN OUTPUT CHANNELS WITHADDITIONAL
INPUT SELECTOR FOR PHONE AND/OR
NAVIGATIONOR CD
- OUTPUTS FOR UP TO 4V rms
- AC-CONNECTION FROM DSP
DIGITAL CONTROL:
- SPI-BUS OR I
2
C BUS INTERFACE
(SELECTABLE)
- DIRECT MUTE FOR THE OUTPUT STAGES
AND/OR HIGH IMPEDANCE MPX MUTE
BLOCK DIAGRAM
TQFP44
DESCRIPTION
The Linedriver handles all analog input- and out-
put-signals for the Digital Carradio Signal Proces-
sor TDA7501. The device contains four inde-
pendent input multiplexers to select the sources
for the DSP鈥檚 four AD-converters. Four additional
gain stages allow an adaptation to run the ADCs
in best S/N condition.
The six outputs have independent volume stages
with a large dynamic range. Using a 12V-supply
the outputs are able to drive up to 4Vrms .
April 1999
This is preliminary information on a new product foreseen to be developed. Details are subject to change without notice.

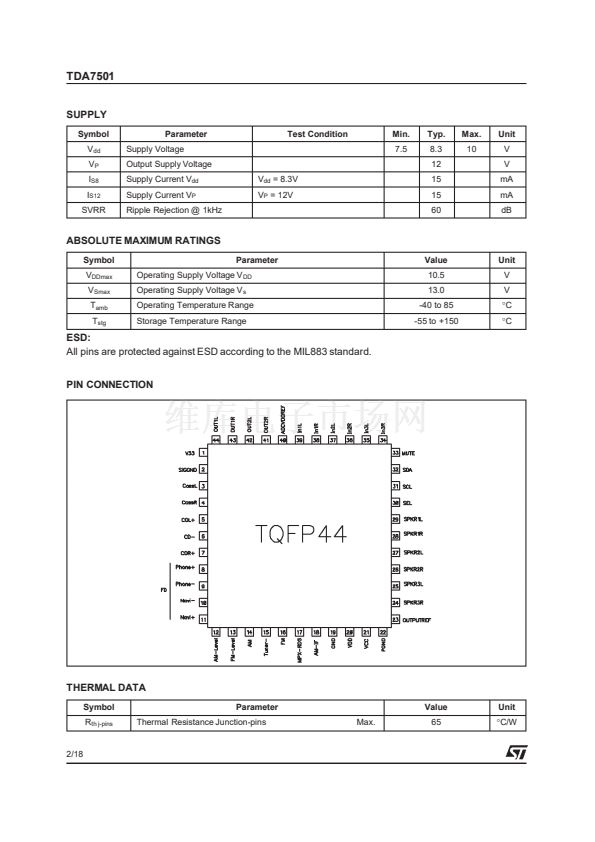

1/18
