TDA4951

TV East/ West Correction Circuit for Square Tubes

Technology:

Bipolar

Features

D

Low dissipation

D

Square generator for parabolic current specially

designed for square C.R.T. correction

D

Static picture width adjustment

D

Pulse-width modulator

D

External keystone adjustment

(symmetry of the parabola)

D

Final stage D-class with energy redelivery

D

Parasitic parabola suppression, during flyback time of

the vertical sawtooth

D

Input for dynamic field correction

(beam current change)

Ad

ro

nic

C

Parameters

Absolute Maximum Ratings

om

po

ne

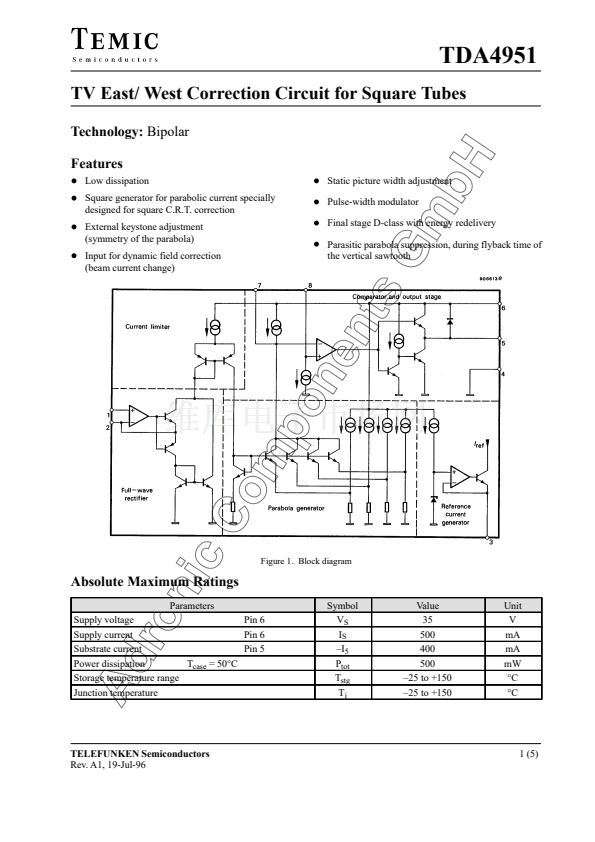

Figure 1. Block diagram

nt

s

Supply voltage

Pin 6

Supply current

Pin 6

Substrate current

Pin 5

Power dissipation

T

case

= 50擄C

Storage temperature range

Junction temperature

Symbol

V

S

I

S

鈥揑

5

P

tot

T

stg

T

j

Value

35

500

400

500

鈥?5 to +150

鈥?5 to +150

Unit

V

mA

mA

mW

擄C

擄C

TELEFUNKEN Semiconductors

Rev. A1, 19-Jul-96

1 (5)
