TDA4817 Datasheet

  • TDA4817

  • Power Factor Controller IC for High Power Factor and Active ...

  • 369.98KB

  • Infineon   Infineon

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

Power Factor Controller
IC for High Power Factor and
Active Harmonic Filtering
Advance Information
Features
IC for sinusoidal line-current consumption
Power factor approaching 1
Controls boost converter as an active harmonics filter
Direct drive of SIPMOS transistor
Zero crossing detector for discontinuous operation mode
with variable frequency
q
110/220 V AC operation without switchover
q
Standby current consumption of 0.5 mA
q
q
q
q
q
TDA 4817
Bipolar IC
P-DIP-8-1
P-DSO-8-1
Type
w
TDA 4817
w
TDA 4817 G
w
= New type
Ordering Code
Q67000-A8298
Q67000-A8299
Package
P-DIP-8-1
P-DSO-8-1 (SMD)
The TDA 4817 contains all functions for designing electronic ballasts and switched-mode power
supplies with sinusoidal line current consumption and a power factor approaching 1.

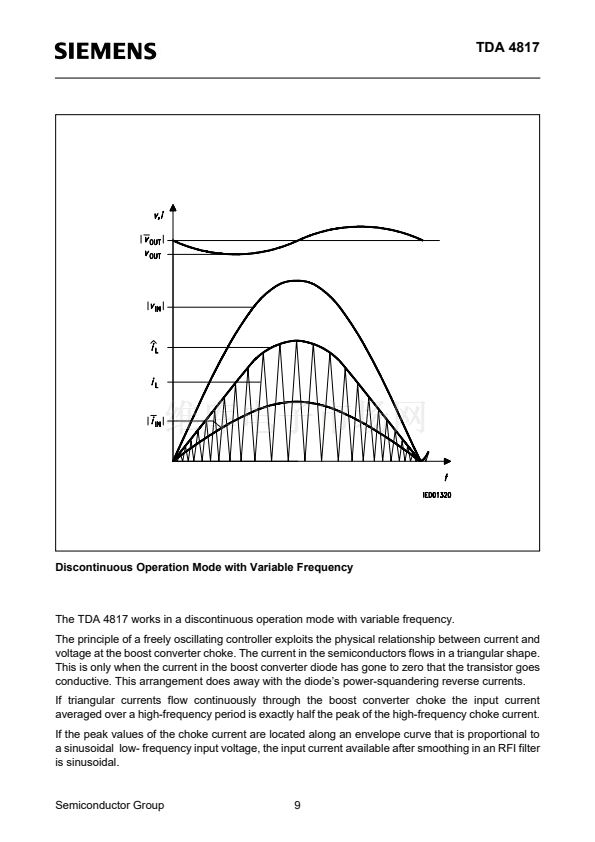

The TDA 4817 controls a boost converter as an active harmonic filter in a discontinuous (triangular
shaped current) mode with variable frequency.
A typical application is in electronic ballasts, especially when a large number of such lamps are
concentrated on one line supply point.
The output voltage of this filter is regulated with high efficiency. Therefore the device can be easily
operated on different line voltages (110/220 V
AC
) without any switchover.
The TDA 4817 is an 8-pin-economy-version of the TDA 4814 A without reference voltage output
and start/stop monitoring circuit.
Semiconductor Group
1
05.95
