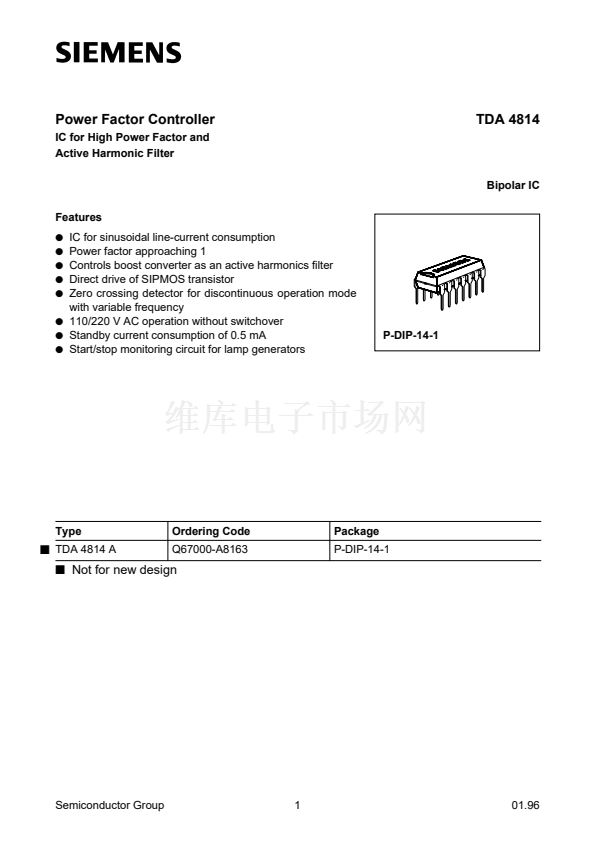

Power Factor Controller

IC for High Power Factor and

Active Harmonic Filter

TDA 4814

Bipolar IC

Features

IC for sinusoidal line-current consumption

Power factor approaching 1

Controls boost converter as an active harmonics filter

Direct drive of SIPMOS transistor

Zero crossing detector for discontinuous operation mode

with variable frequency

q

110/220 V AC operation without switchover

q

Standby current consumption of 0.5 mA

q

Start/stop monitoring circuit for lamp generators

q

q

q

q

q

P-DIP-14-1

Type

Ordering Code

Q67000-A8163

Package

P-DIP-14-1

s

TDA 4814 A

s

Not for new design

Semiconductor Group

1

01.96
