IC for Switched-Mode Power Supplies (SMPS)

TDA 4714 C

TDA 4716 C

Bipolar IC

Features

q

q

q

q

q

q

q

q

q

q

Push-pull outputs (open collector)

Double pulse suppression

Dynamic current limitation

Overvoltage protection

IC undervoltage protection

Reference voltage source

Reference overload protection

Soft start

Feed-forward control

Operational amplifier (TDA 4716 C)

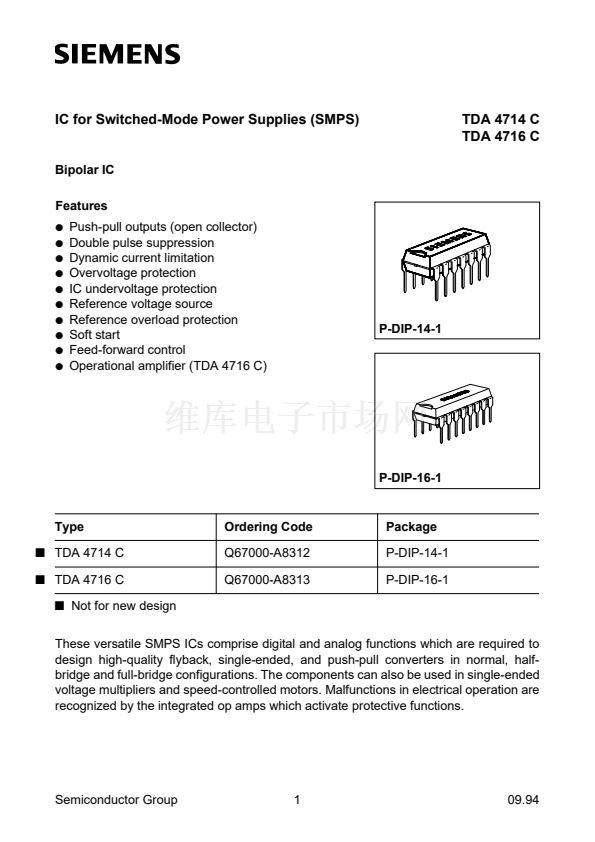

P-DIP-14-1

P-DIP-16-1

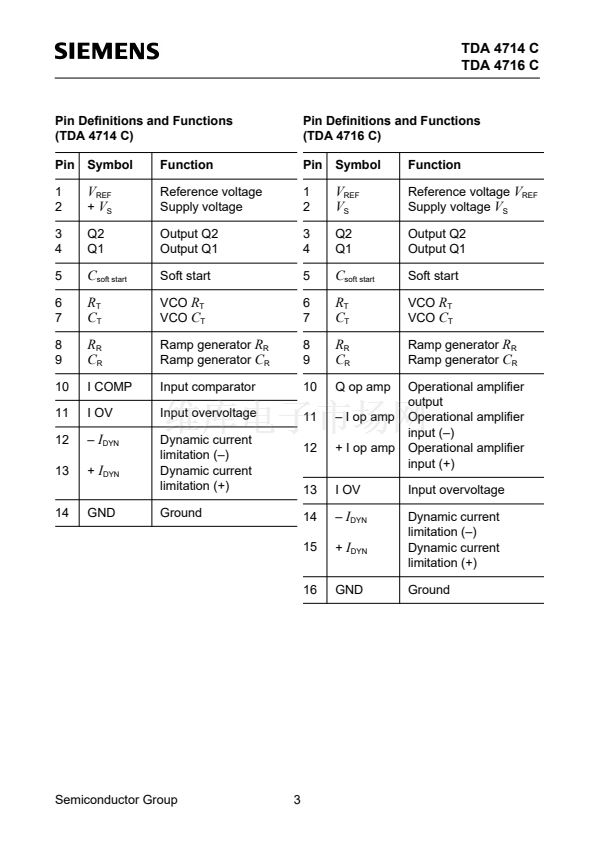

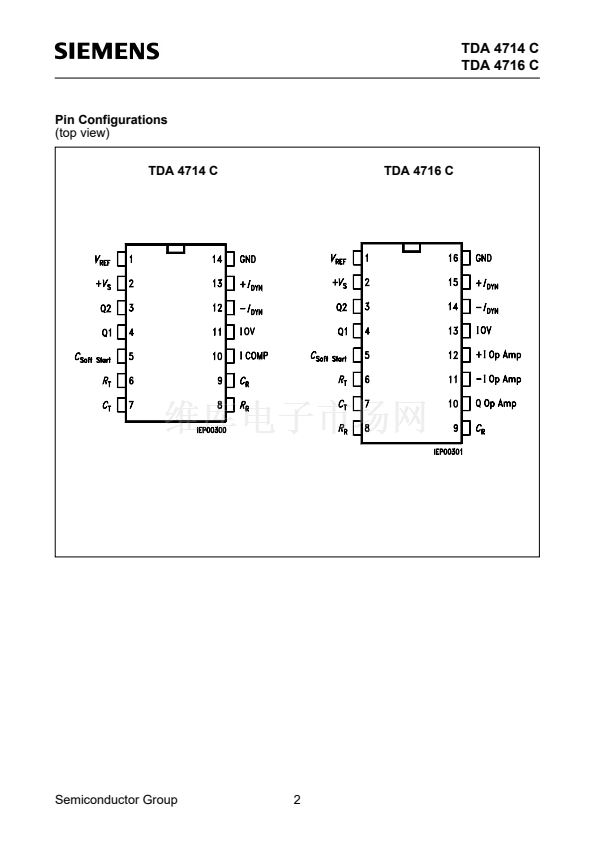

Type

s

TDA 4714 C

s

TDA 4716 C

s

Not for new design

Ordering Code

Q67000-A8312

Q67000-A8313

Package

P-DIP-14-1

P-DIP-16-1

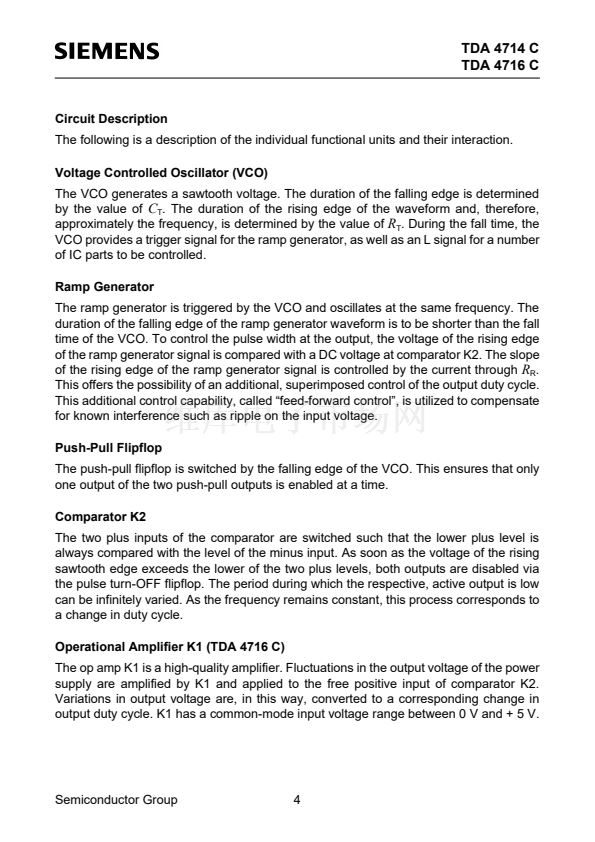

These versatile SMPS ICs comprise digital and analog functions which are required to

design high-quality flyback, single-ended, and push-pull converters in normal, half-

bridge and full-bridge configurations. The components can also be used in single-ended

voltage multipliers and speed-controlled motors. Malfunctions in electrical operation are

recognized by the integrated op amps which activate protective functions.
