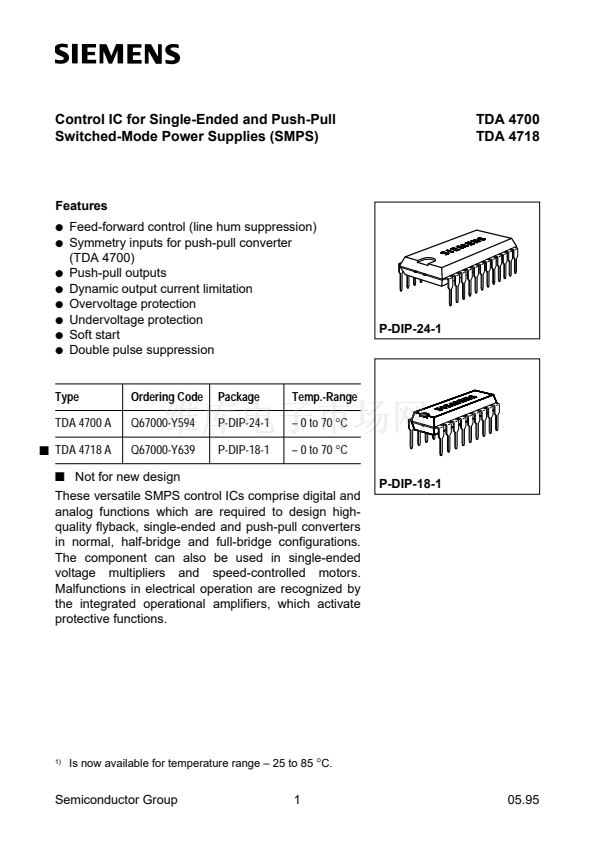

Control IC for Single-Ended and Push-Pull

Switched-Mode Power Supplies (SMPS)

TDA 4700

TDA 4718

Features

q

q

q

q

q

q

q

q

Feed-forward control (line hum suppression)

Symmetry inputs for push-pull converter

(TDA 4700)

Push-pull outputs

Dynamic output current limitation

Overvoltage protection

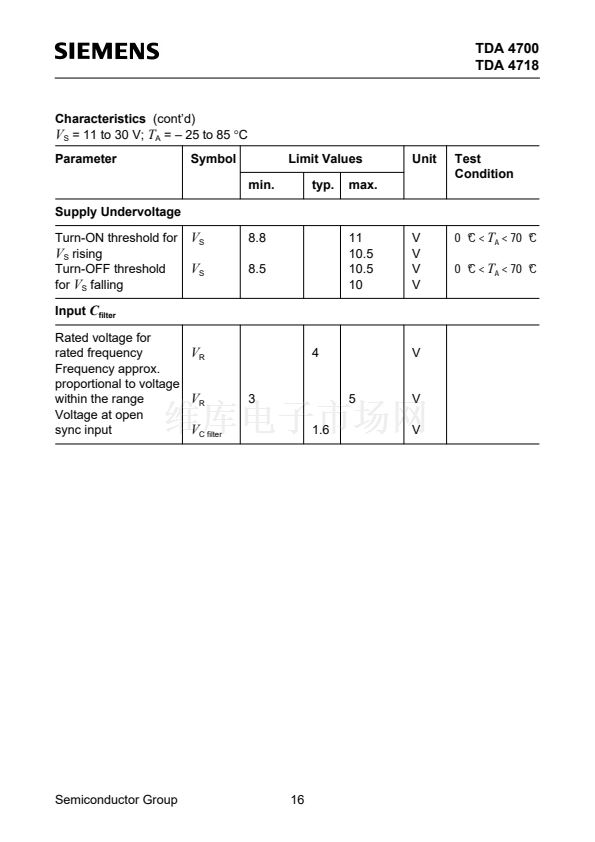

Undervoltage protection

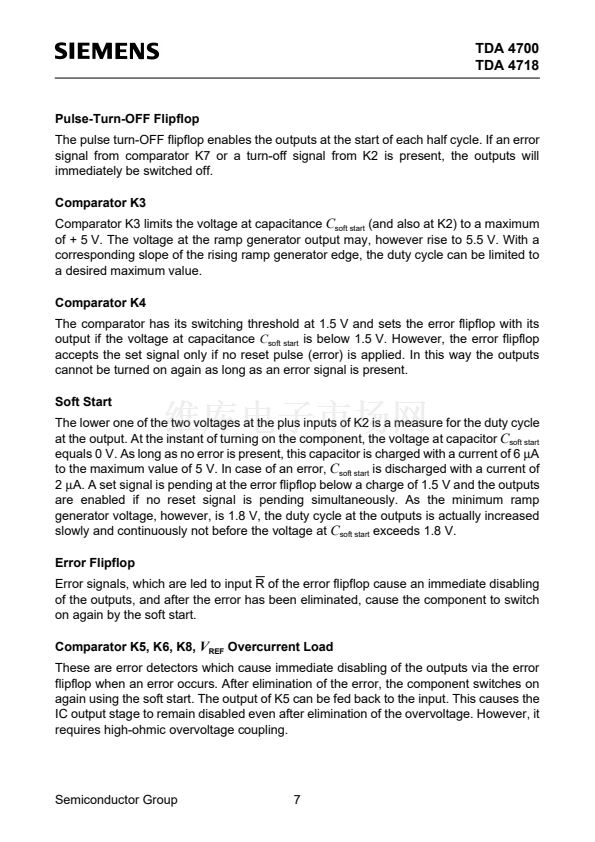

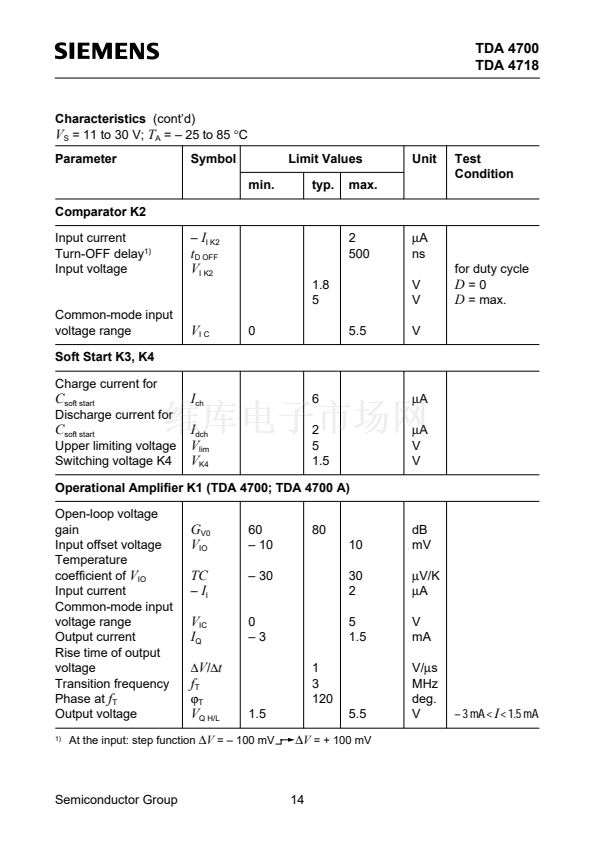

Soft start

Double pulse suppression

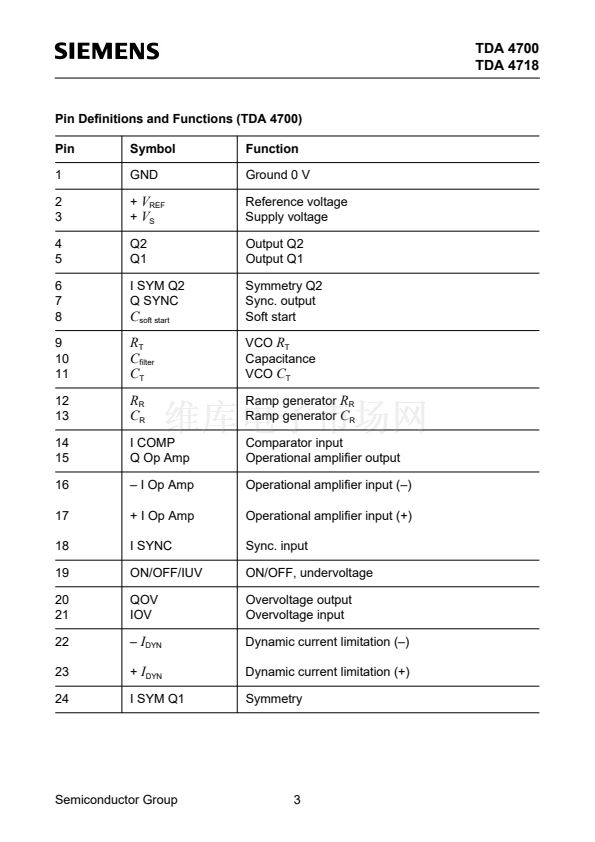

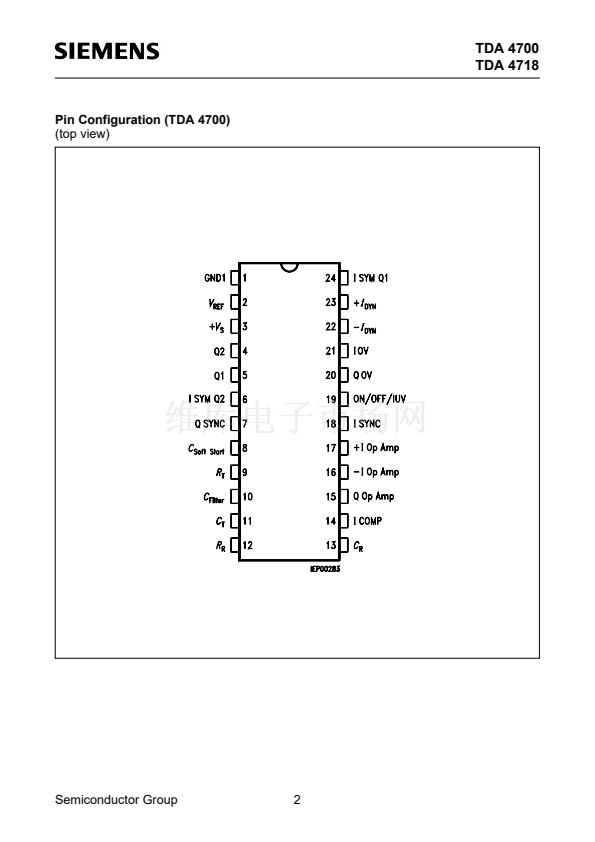

P-DIP-24-1

Type

TDA 4700 A

s

TDA 4718 A

Ordering Code

Q67000-Y594

Q67000-Y639

Package

P-DIP-24-1

P-DIP-18-1

Temp.-Range

鈥?0 to 70

擄C

鈥?0 to 70

擄C

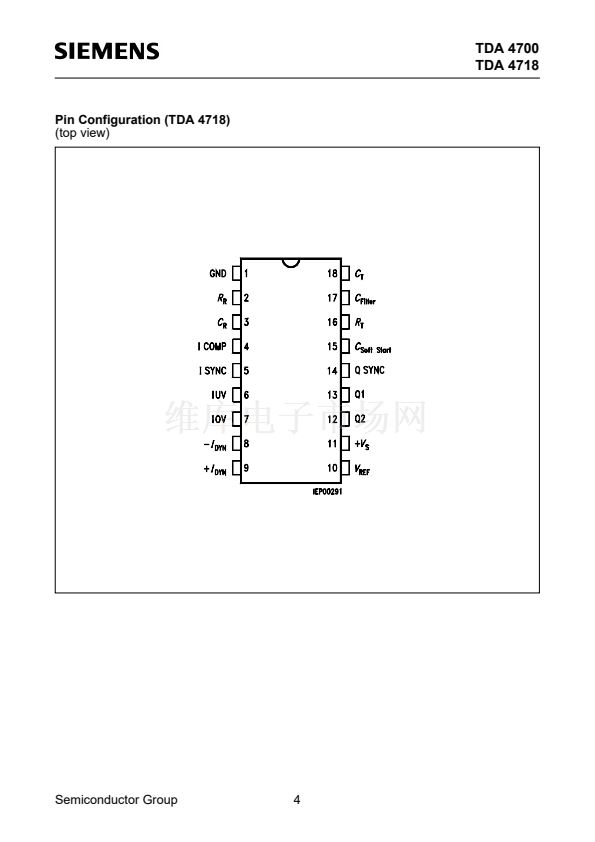

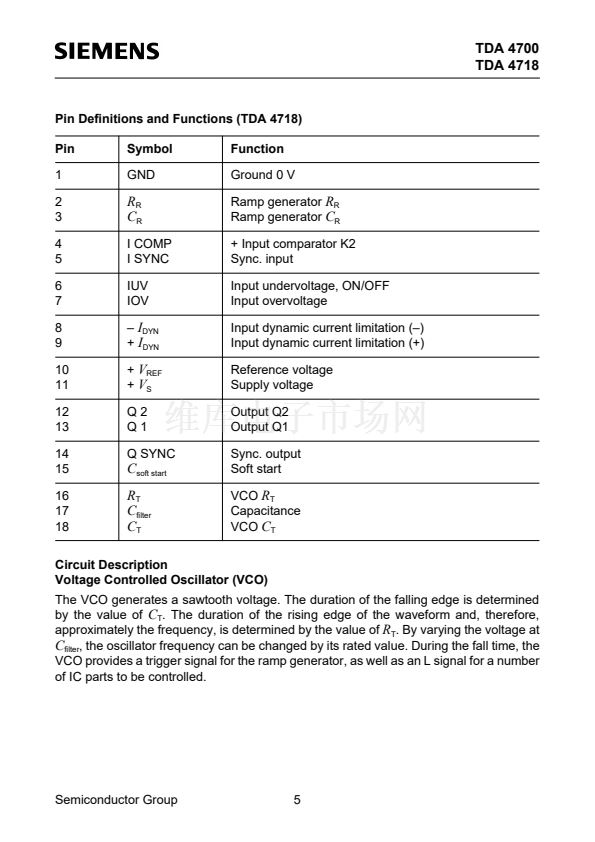

P-DIP-18-1

s

Not for new design

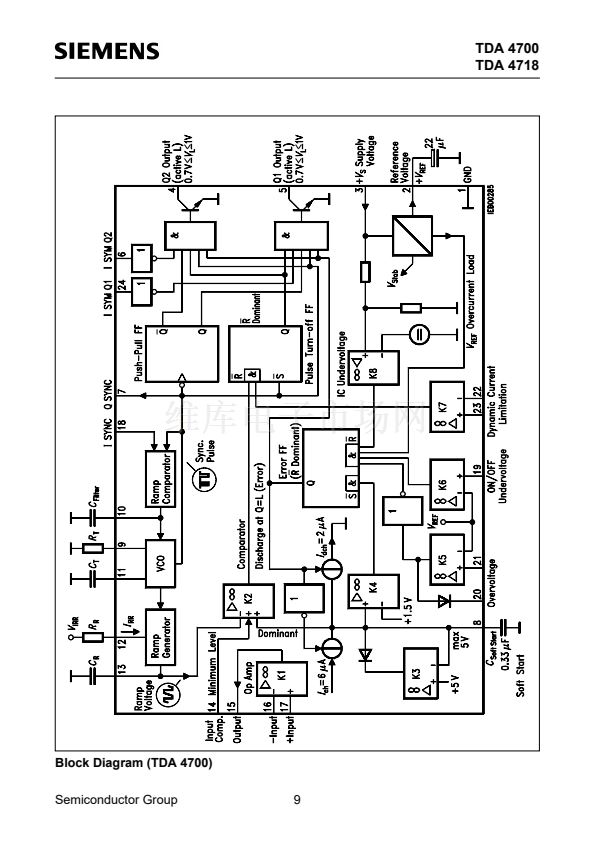

These versatile SMPS control ICs comprise digital and

analog functions which are required to design high-

quality flyback, single-ended and push-pull converters

in normal, half-bridge and full-bridge configurations.

The component can also be used in single-ended

voltage multipliers and speed-controlled motors.

Malfunctions in electrical operation are recognized by

the integrated operational amplifiers, which activate

protective functions.

1)

Is now available for temperature range 鈥?25 to 85

擄

C.

Semiconductor Group

1

05.95

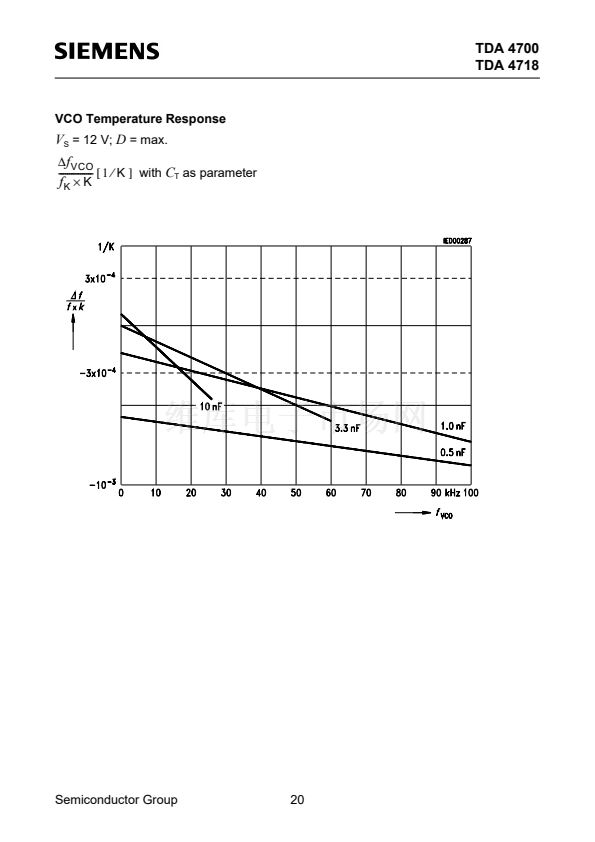

next
