TDA4483

Intercarrier Mixer and AM-Demodulator for TV and VCR

Features

D

Very high input sensitivity

D

Excellent signal-to-noise ratio

D

Intercarrier output signal gain controlled and indepen-

dent from the picture carrier to sound carrier ratio

D

Few external components

D

ESD protected

D

AM demodulator alignment free

Case:

DIP14

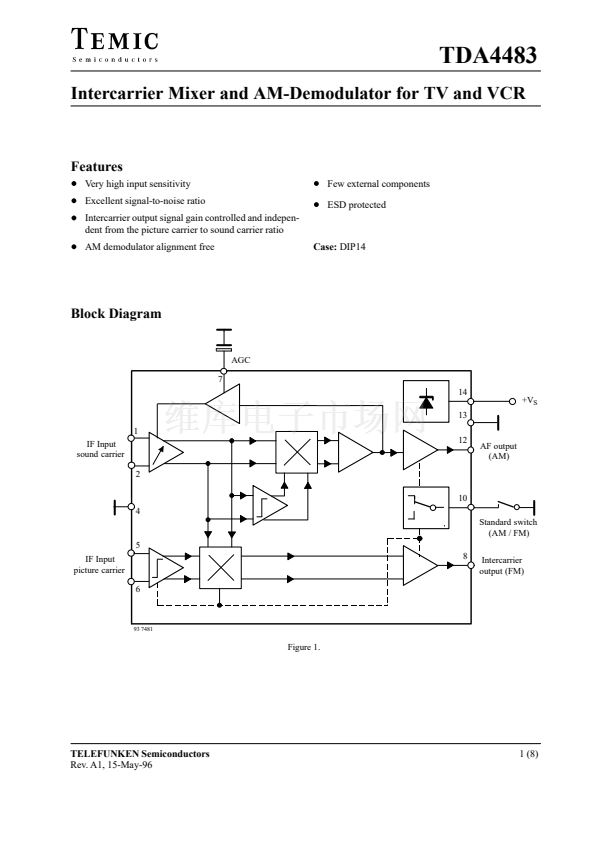

Block Diagram

AGC

7

14

+V

S

13

1

IF Input

sound carrier

2

10

4

Standard switch

(AM / FM)

5

IF Input

picture carrier

6

8

Intercarrier

output (FM)

12

AF output

(AM)

93 7481

Figure 1.

TELEFUNKEN Semiconductors

Rev. A1, 15-May-96

1 (8)
