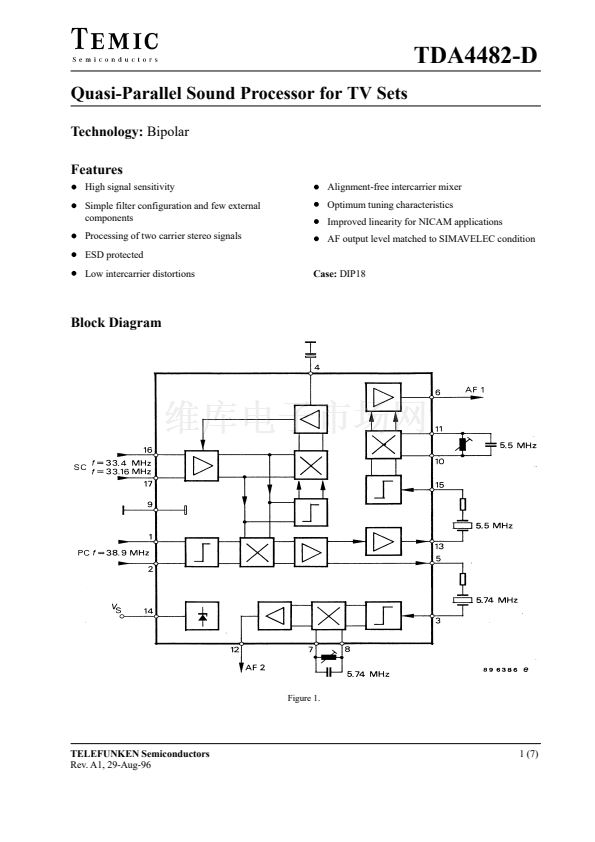

TDA4482-D

Quasi-Parallel Sound Processor for TV Sets

Technology:

Bipolar

Features

D

High signal sensitivity

D

Simple filter configuration and few external

components

D

Processing of two carrier stereo signals

D

ESD protected

D

Low intercarrier distortions

D

D

D

D

Alignment-free intercarrier mixer

Optimum tuning characteristics

Improved linearity for NICAM applications

AF output level matched to SIMAVELEC condition

Case:

DIP18

Block Diagram

Figure 1.

TELEFUNKEN Semiconductors

Rev. A1, 29-Aug-96

1 (7)
