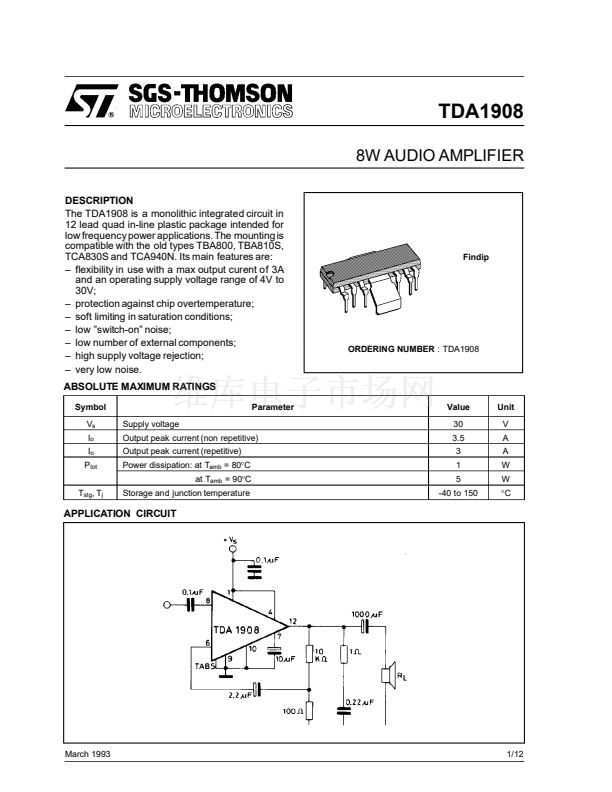

TDA1908

8W AUDIO AMPLIFIER

DESCRIPTION

The TDA1908 is a monolithic integrated circuit in

12 lead quad in-line plastic package intended for

low frequency power applications. The mounting is

compatible with the old types TBA800, TBA810S,

TCA830S and TCA940N. Its main features are:

鈥?flexibility in use with a max output curent of 3A

and an operating supply voltage range of 4V to

30V;

鈥?protection against chip overtemperature;

鈥?soft limiting in saturation conditions;

鈥?low 鈥漵witch-on鈥?noise;

鈥?low number of external components;

鈥?high supply voltage rejection;

鈥?very low noise.

ABSOLUTE MAXIMUM RATINGS

Symbol

V

s

I

o

I

o

P

tot

T

stg

, T

j

Supply voltage

Output peak current (non repetitive)

Output peak current (repetitive)

Power dissipation: at T

amb

= 80擄C

at T

amb

= 90擄C

Storage and junction temperature

Parameter

Value

30

3.5

3

1

5

-40 to 150

Unit

V

A

A

W

W

擄C

Findip

ORDERING NUMBER

: TDA1908

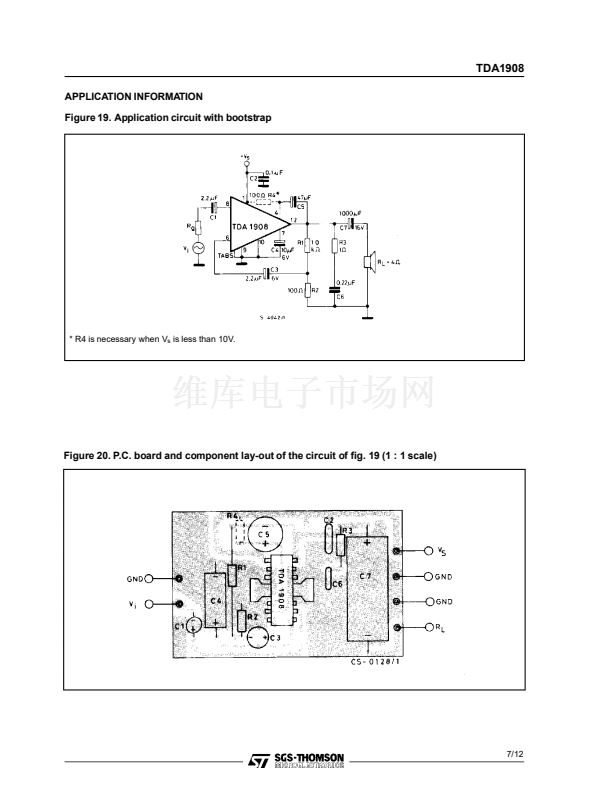

APPLICATION CIRCUIT

March 1993

1/12
