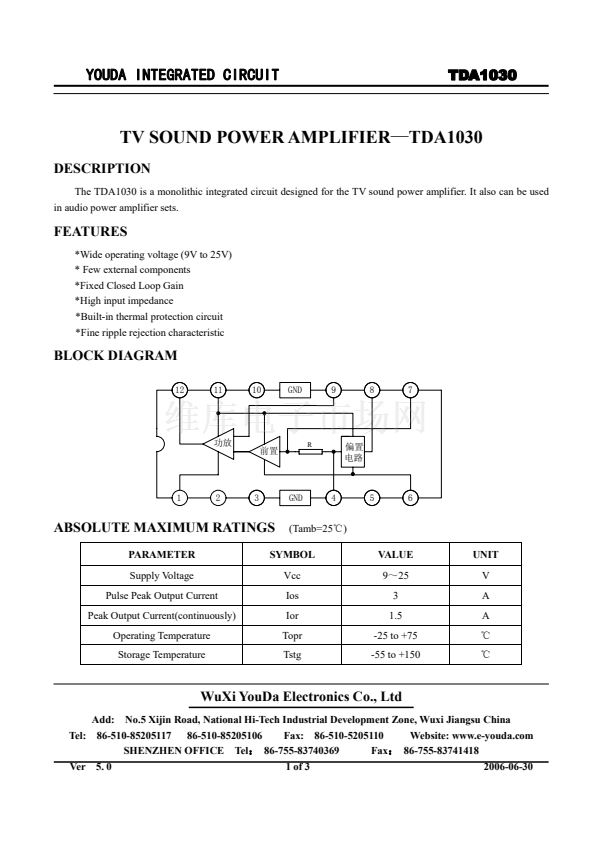

YOUDA INTEGRATED CIRCUIT
TDA1030
TV SOUND POWER AMPLIFIER鈥擳DA1030
DESCRIPTION
The TDA1030 is a monolithic integrated circuit designed for the TV sound power amplifier. It also can be used
in audio power amplifier sets.
FEATURES
*Wide operating voltage (9V to 25V)
* Few external components
*Fixed Closed Loop Gain
*High input impedance
*Built-in thermal protection circuit
*Fine ripple rejection characteristic
BLOCK DIAGRAM
12
11
10
GND
9
8
7
鍔熸斁
鍓嶏拷½錕?/div>
R
鍋忥拷½錕?/div>
鐢佃礬
1
2
3
GND
4
5
6
ABSOLUTE MAXIMUM RATINGS
PARAMETER
Supply Voltage
Pulse Peak Output Current
Peak Output Current(continuously)
Operating Temperature
Storage Temperature
(Tamb=25鈩?
VALUE
9錕?frac12;錕?5
3
1.5
-25 to +75
-55 to +150
UNIT
V
A
A
鈩?/div>
鈩?/div>
SYMBOL
Vcc
Ios
Ior
Topr
Tstg
