TCA 505 BG
IC for Inductive Proximity Switches
with Short-Circuit Protection
Preliminary Data
Features
q
Wide supply voltage of 3.1 to 4.5 V
q
q
q
q
q
q
q
q
q
TCA 505 BG
Bipolar IC
and 4 to 40 V
Low current consumption of less than 0.8 mA
Integrated output stage for up to 60 mA
output current
Short-circuit and overload protection of output
stages and external components
Temperature response of the IC compensates
that of the coil
High noise immunity
High switching frequencies up to 5 kHz
Useful extra functions
Suitable for two-wire AC proximity switches
Temperature range 鈥?40 to 110 藲C
P-DSO-16-1
Type
Ordering Code
Package
P-DSO-16-1 (SMD)
Chip
TCA 505 BG Q67000-A8341
TCA 505 B
Q67000-A8342
Besides its basic functions (oscillator, demodulator and threshold switch), the bipolar
monolithic IC TCA 505 B includes a number of useful extra functions that enable high-grade,
inductive proximity switches to be designed for an attractive price/performance ratio and with
space savings.
Compared to earlier ICs for inductive proximity switches temperature drift, noise immunity and
the switching frequency of the IC have been improved.

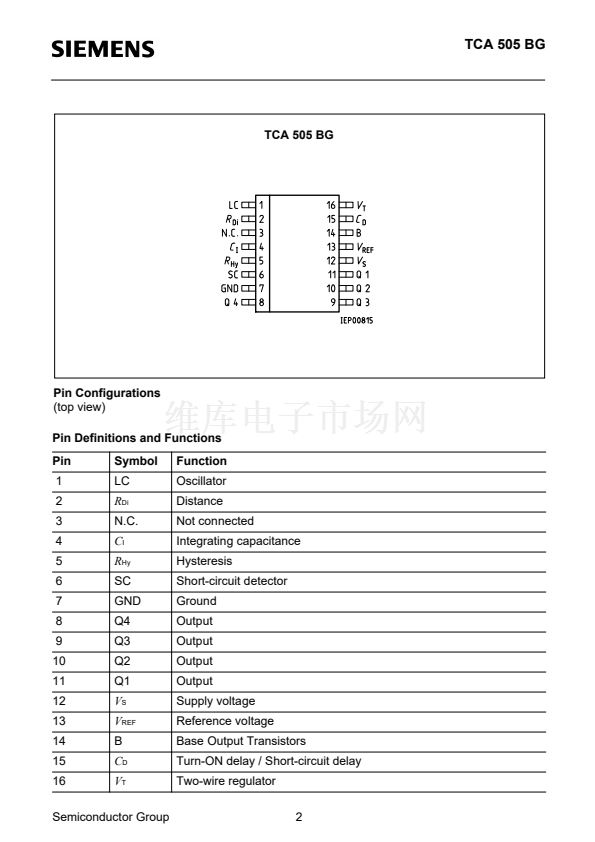

Semiconductor Group
1
01.96
