TC7SBL384AFU Datasheet

  • TC7SBL384AFU

  • Single Low-Voltage Bus Switch

  • 6頁

  • TOSHIBA

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

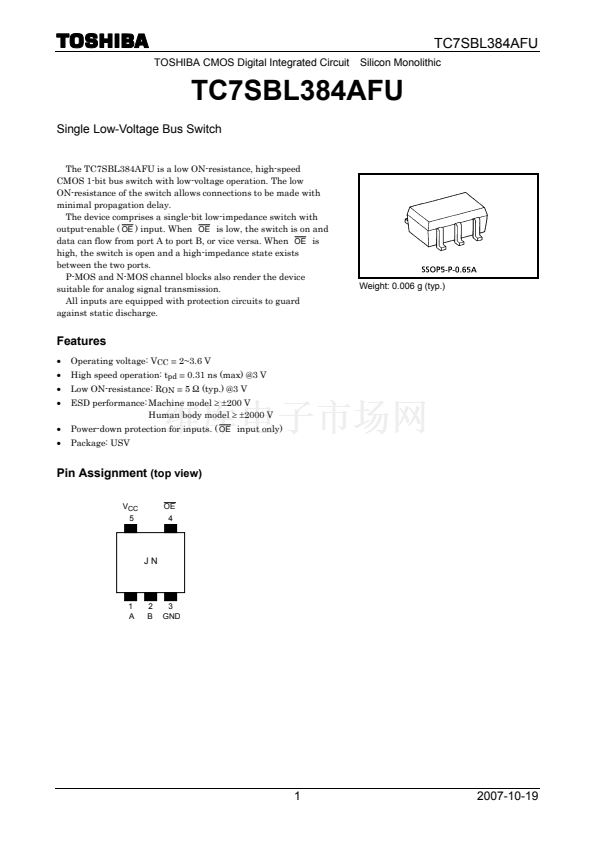

TC7SBL384AFU
TOSHIBA CMOS Digital Integrated Circuit
Silicon Monolithic
TC7SBL384AFU
Single Low-Voltage Bus Switch
The TC7SBL384AFU is a low ON-resistance, high-speed
CMOS 1-bit bus switch with low-voltage operation. The low
ON-resistance of the switch allows connections to be made with
minimal propagation delay.
The device comprises a single-bit low-impedance switch with
output-enable (
OE
) input. When
OE
is low, the switch is on and
data can flow from port A to port B, or vice versa. When
OE
is
high, the switch is open and a high-impedance state exists
between the two ports.
P-MOS and N-MOS channel blocks also render the device
suitable for analog signal transmission.
All inputs are equipped with protection circuits to guard
against static discharge.
Weight: 0.006 g (typ.)
Features
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Operating voltage: V
CC
= 2~3.6 V
High speed operation: t
pd
= 0.31 ns (max) @3 V
Low ON-resistance: R
ON
= 5
鈩?/div>
(typ.) @3 V
ESD performance: Machine model
鈮?鹵200
V
Human body model
鈮?鹵2000
V
Power-down protection for inputs. (
OE
input only)
Package: USV
Pin Assignment
(top view)
V
CC
5
OE
4
JN
1
A
2
B
3
GND
1
2007-10-19
