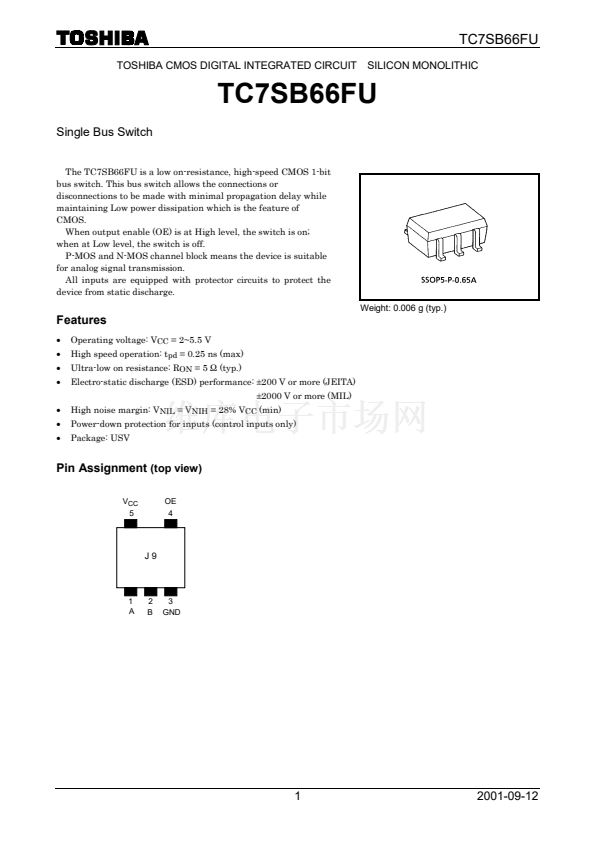

TC7SB66FU
TOSHIBA CMOS DIGITAL INTEGRATED CIRCUIT SILICON MONOLITHIC
TC7SB66FU
Single Bus Switch
The TC7SB66FU is a low on-resistance, high-speed CMOS 1-bit
bus switch. This bus switch allows the connections or
disconnections to be made with minimal propagation delay while
maintaining Low power dissipation which is the feature of
CMOS.
When output enable (OE) is at High level, the switch is on;
when at Low level, the switch is off.
P-MOS and N-MOS channel block means the device is suitable
for analog signal transmission.
All inputs are equipped with protector circuits to protect the
device from static discharge.
Weight: 0.006 g (typ.)
Features
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Operating voltage: V
CC
= 2~5.5 V
High speed operation: t
pd
= 0.25 ns (max)
Ultra-low on resistance: R
ON
= 5
鈩?/div>
(typ.)
Electro-static discharge (ESD) performance: 鹵200 V or more (JEITA)
鹵2000 V or more (MIL)
High noise margin: V
NIL
= V
NIH
= 28% V
CC
(min)
Power-down protection for inputs (control inputs only)
Package: USV
Pin Assignment
(top view)
V
CC
5
OE
4
J9
1
A
2
B
3
GND
1
2001-09-12
