TC7SB384FU Datasheet

  • TC7SB384FU

  • TOSHIBA CMOS Digital Integrated Circuit Silicon Monolithic

  • 6頁

  • TOSHIBA

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

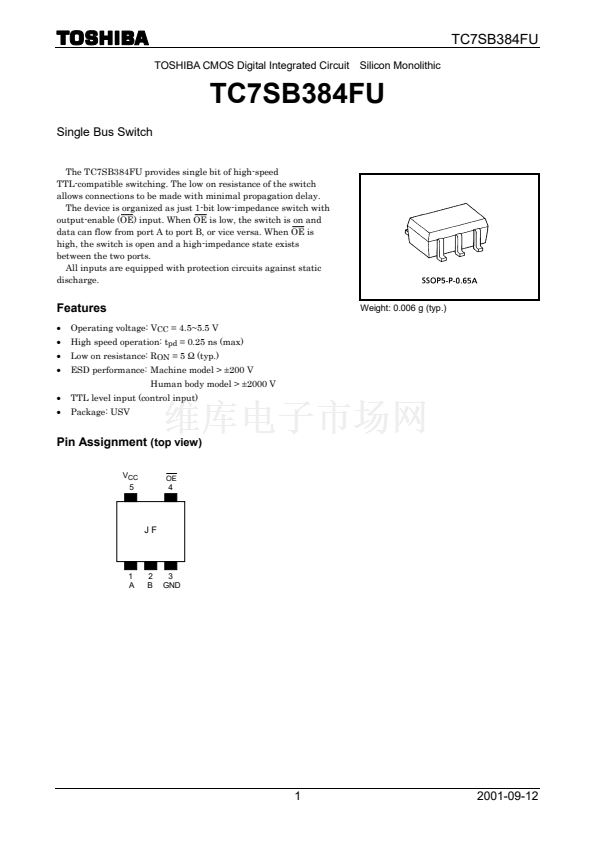

TC7SB384FU
TOSHIBA CMOS Digital Integrated Circuit Silicon Monolithic
TC7SB384FU
Single Bus Switch
The TC7SB384FU provides single bit of high-speed
TTL-compatible switching. The low on resistance of the switch
allows connections to be made with minimal propagation delay.
The device is organized as just 1-bit low-impedance switch with
output-enable (OE) input. When OE is low, the switch is on and
data can flow from port A to port B, or vice versa. When OE is
high, the switch is open and a high-impedance state exists
between the two ports.
All inputs are equipped with protection circuits against static
discharge.
Features
路
路
路
路
路
路
Operating voltage: V
CC
= 4.5~5.5 V
High speed operation: t
pd
= 0.25 ns (max)
Low on resistance: R
ON
= 5
鈩?/div>
(typ.)
ESD performance: Machine model > 鹵200 V
Human body model > 鹵2000 V
TTL level input (control input)
Package: USV
Weight: 0.006 g (typ.)
Pin Assignment
(top view)
V
CC
5
OE
4
JF
1
A
2
B
3
GND
1
2001-09-12
