TC7MH574FK Datasheet

  • TC7MH574FK

  • TOSHIBA CMOS Digital Integrated Circuit Silicon Monolithic

  • 120.32KB

  • 8頁

  • TOSHIBA

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

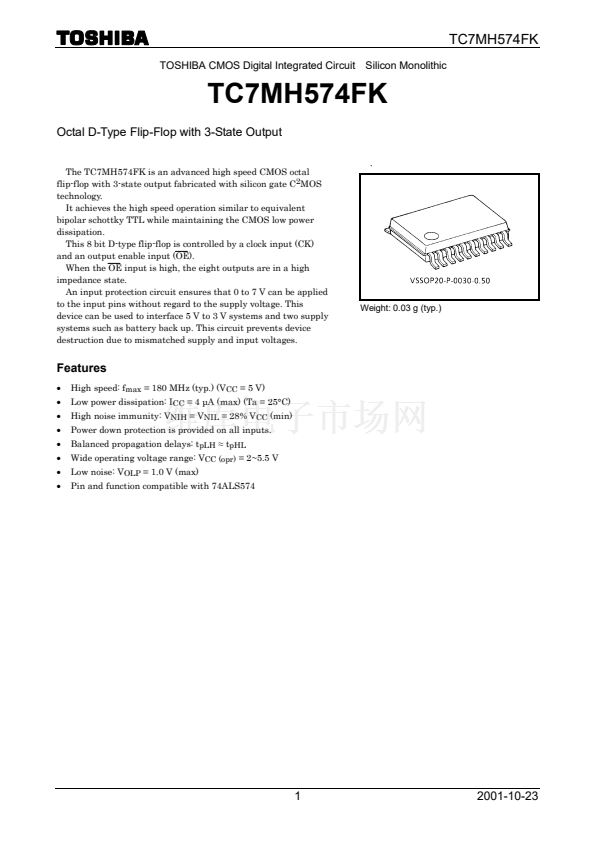

TC7MH574FK
TOSHIBA CMOS Digital Integrated Circuit Silicon Monolithic
TC7MH574FK
Octal D-Type Flip-Flop with 3-State Output
The TC7MH574FK is an advanced high speed CMOS octal
flip-flop with 3-state output fabricated with silicon gate C
2
MOS
technology.
It achieves the high speed operation similar to equivalent
bipolar schottky TTL while maintaining the CMOS low power
dissipation.
This 8 bit D-type flip-flop is controlled by a clock input (CK)
and an output enable input (OE).
When the OE input is high, the eight outputs are in a high
impedance state.
An input protection circuit ensures that 0 to 7 V can be applied
to the input pins without regard to the supply voltage. This
device can be used to interface 5 V to 3 V systems and two supply
systems such as battery back up. This circuit prevents device
destruction due to mismatched supply and input voltages.
Weight: 0.03 g (typ.)
Features
路
路
路
路
路
路
路
路
High speed: f
max
= 180 MHz (typ.) (V
CC
= 5 V)
Low power dissipation: I
CC
= 4 碌A(chǔ) (max) (Ta = 25擄C)
High noise immunity: V
NIH
= V
NIL
= 28% V
CC
(min)
Power down protection is provided on all inputs.
Balanced propagation delays: t
pLH
鈮?/div>
t
pHL
Wide operating voltage range: V
CC (opr)
= 2~5.5 V
Low noise: V
OLP
= 1.0 V (max)
Pin and function compatible with 74ALS574
1
2001-10-23
