TC7MB3257FK
TOSHIBA CMOS Digital Integrated Circuit Silicon Monolithic
TC7MB3257FK
Quad 1-of-2 Multiplexer/Demultiplexer
The TC7MB3257FK is high-speed CMOS quad 1-2
multiplexer/demultiplexer. The low on resistance of the switch
allows connections to be made with minimal propagation delay
time.
This device consists of four individual two-inputs
multiplexer/demultiplexer with common select input (S) and
output enable (OE). The A inputs is connected to the B1 or B2
outputs determined by the combination both the select input (S)
and output enable (OE). When the output enable (OE) input is
held 鈥淗鈥?level, the switches are open with regardless the state of
select inputs and a high-impedance state exists between the
switches.
All inputs are equipped with protection circuits against static
discharge.
Weight: 0.02 g (typ.)
Features
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Operating voltage: V
CC
= 4.5~5.5 V
High speed: t
pd
= 0.25 ns (max)
Low on resistance: R
ON
= 5
鈩?/div>
(typ.)
ESD performance: Machine model > 鹵200 V
Human body model > 鹵2000 V
Compatible with TTL outputs (control inputs)
Package: VSSOP (US16)
Pin compatible with the 74xx257 type.
Functionally equivalent to (FST/CBT) 3257.
Pin Assignment
(top view)
S
1B1
1B2
1A
2B1
2B2
2A
GND
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
V
CC
OE
4B1
4B2
4A
3B1
3B2
3A
1
2001-09-12

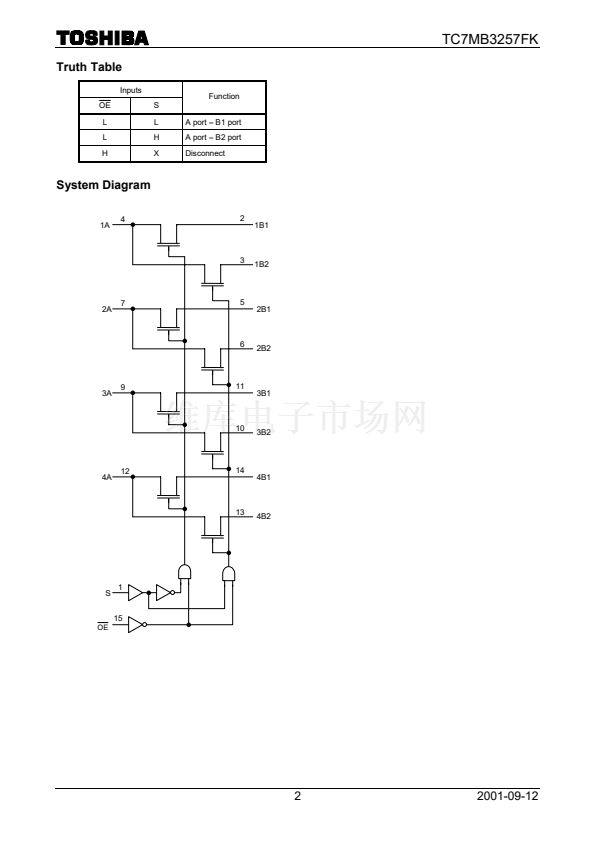

TC7MB3257FK 產(chǎn)品屬性
表面貼裝
3mm
VSSOP
4 x 3 x 0.8mm
16
-40 °C
180 mW
+85 °C
單端
單端
四 2:1
4mm
0.8mm
