TC1413N Datasheet

  • TC1413N

  • 3A High-Speed MOSFET Drivers

  • 16頁

  • MICROCHIP   MICROCHIP

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

M

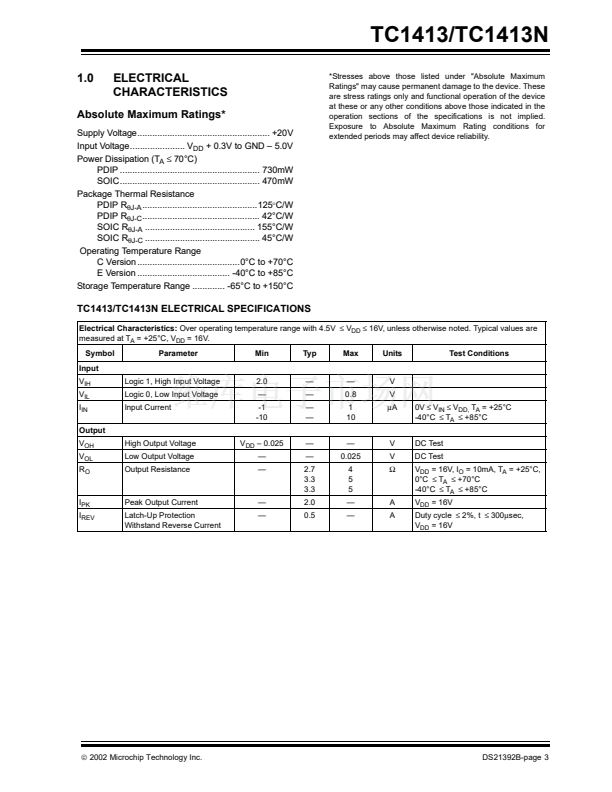

Features
TC1413/TC1413N
Package Type
8-Pin PDIP/SOIC
V
DD
1
IN 2
NC 3
GND 4
2
Inverting
NC = No internal connection
6, 7
8 V
DD
V
DD
1
IN 2
NC 3
GND 4
2
6, 7
8 V
DD
3A High-Speed MOSFET Drivers
鈥?Latch-Up Protected: Will Withstand 500mA
Reverse Current
鈥?Input Will Withstand Negative Inputs Up to 5V
鈥?ESD Protected: 4kV
鈥?High Peak Output Current: 3A
鈥?Wide Operating Range
- 4.5V to 16V
鈥?High Capacitive Load Drive Capability: 1800pF in
20nsec
鈥?Short Delay Time: 35nsec Typ
鈥?Consistent Delay Times With Changes in Supply
Voltage
鈥?Matched Delay Times
鈥?Low Supply Current
- With Logic 鈥?鈥?Input: 500碌A(chǔ)
- With Logic 鈥?鈥?Input: 100碌A(chǔ)
鈥?Low Output Impedance: 2.7鈩?/div>
鈥?Pinout Same as TC1410/TC1411/TC1412
TC1413
7 OUT
6 OUT
5 GND
TC1413N
7 OUT
6 OUT
5 GND
Noninverting

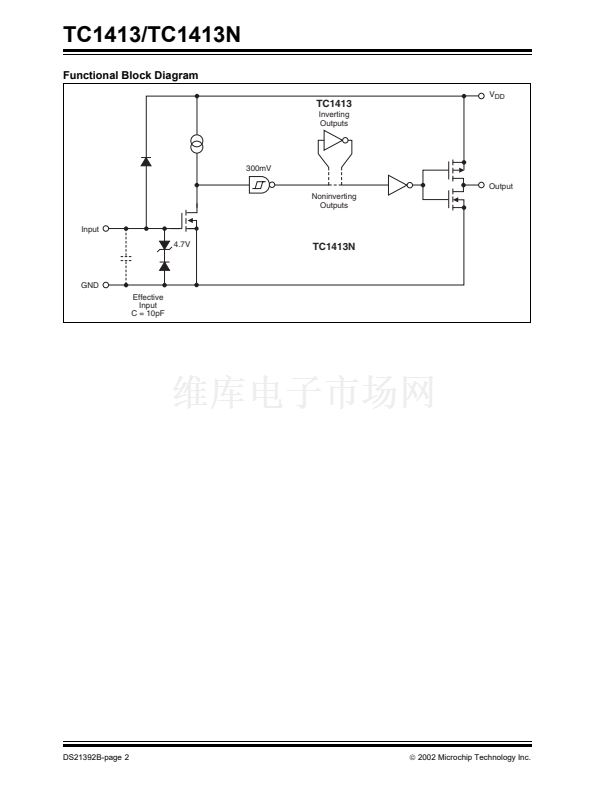

General Description
The TC1413/TC1413N are 3A CMOS buffer/drivers.
They will not latch up under any conditions within their
power and voltage ratings. They are not subject to
damage when up to 5V of noise spiking of either
polarity occurs on the ground pin. They can accept,
without damage or logic upset, up to 500mA of current
of either polarity being forced back into their output. All
terminals are fully protected against up to 4kV of
electrostatic discharge.
As MOSFET drivers, the TC1413/TC1413N can easily
charge an 1800pF gate capacitance in 20nsec with
matched rise and fall times, and provide low enough
impedance in both the ON and the OFF states to
ensure the MOSFET鈥檚 intended state will not be
affected, even by large transients. The rise and fall time
edges are matched to allow driving short-duration
inputs with greater accuracy.
Applications
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Switch Mode Power Supplies
Line Drivers
Pulse Transformer Drive
Relay Driver
Device Selection Table
Part Number
TC1413COA
TC1413CPA
TC1413EOA
TC1413EPA
TC1413NCOA
TC1413NCPA
TC1413NEOA
TC1413NEPA
Package
8-Pin SOIC
8-Pin PDIP
8-Pin SOIC
8-Pin PDIP
8-Pin SOIC
8-Pin PDIP
8-Pin SOIC
8-Pin PDIP
Temp. Range
0擄C to +70擄C
0擄C to +70擄C
-40擄C to +85擄C
-40擄C to +85擄C
0擄C to +70擄C
0擄C to +70擄C
-40擄C to +85擄C
-40擄C to +85擄C
錚?/div>
2002 Microchip Technology Inc.
DS21392B-page 1
