TB6537P/F

TOSHIBA CMOS Integrated Circuit Silicon Monolithic

TB6537P,TB6537F

3-Phase Full-Wave Sensorless Controller for Brushless DC Motors

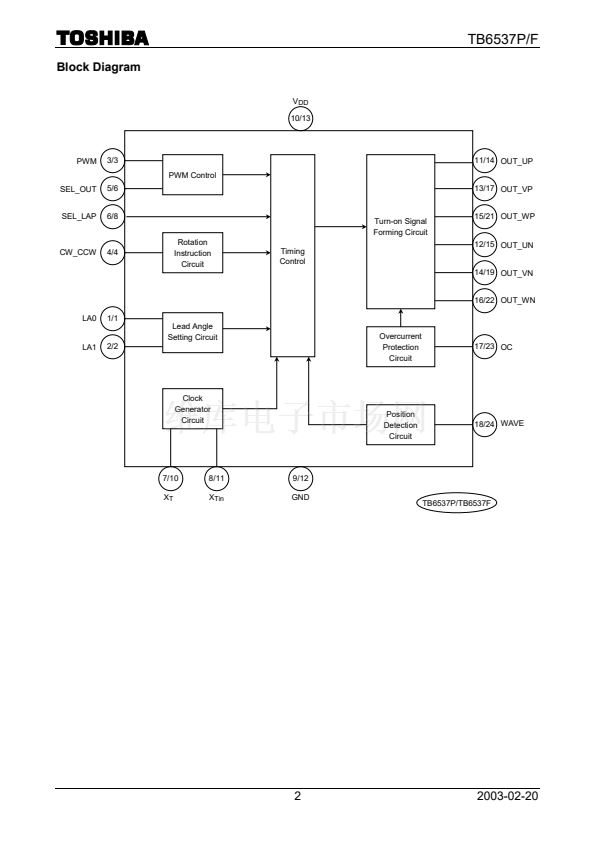

TB6537P/F is a 3-phase full-wave sensorless controller for

brushless DC motors. It is capable of controlling voltage by PWM

signal input. When combined with various drive circuits it can be

used for various types of motors.

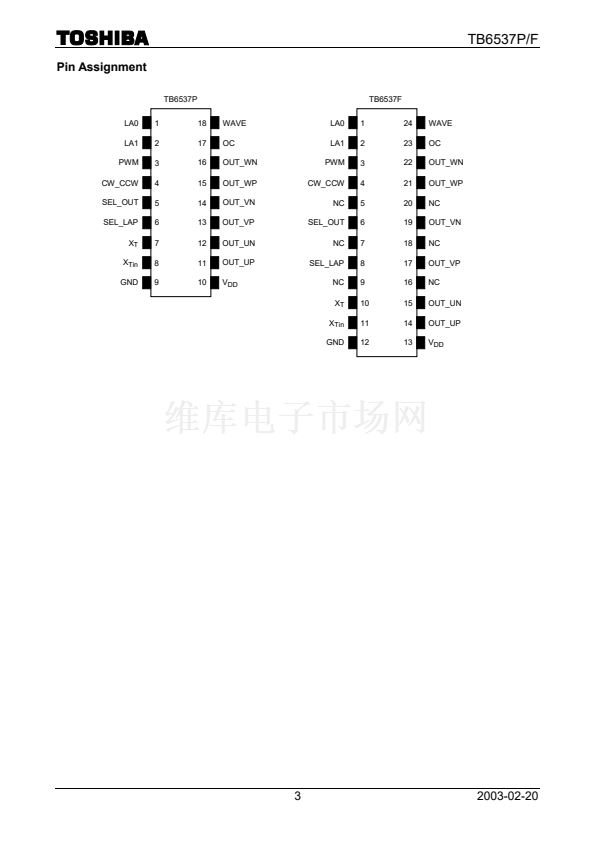

TB6537P

Features

路

路

路

路

路

路

路

路

3-phase full-wave sensorless drive

PWM control (PWM signal is supplied from external sources.)

Turn-on signal output current: 20 mA

Overcurrent protection function

Forward/reverse modes

Lead angle control function (0, 7.5, 15 and 30 degrees)

Built-in lap turn-on function

Two types of PWM output (upper PWM and upper/lower

alternate PWM)

TB6537F

Weight

DIP18-P-300-2.54D: 1.47 g (typ.)

SSOP24-P-300-1.00: 0.32 g (typ.)

1

2003-02-20
